MOI4-REC (Recessed)

MOI4-REC (Recessed)

Customizable, recessed,  2-Hour Fire Rated Poke-Through with four inch inside diameter.


Type: Product
Category: MOI4, Poke-Through

  • Share this product:
  •
  •
  • Product Description

    Customizable, 2-Hour Fire Rated, Four Inch (inside diameter) Poke-Through Assembly

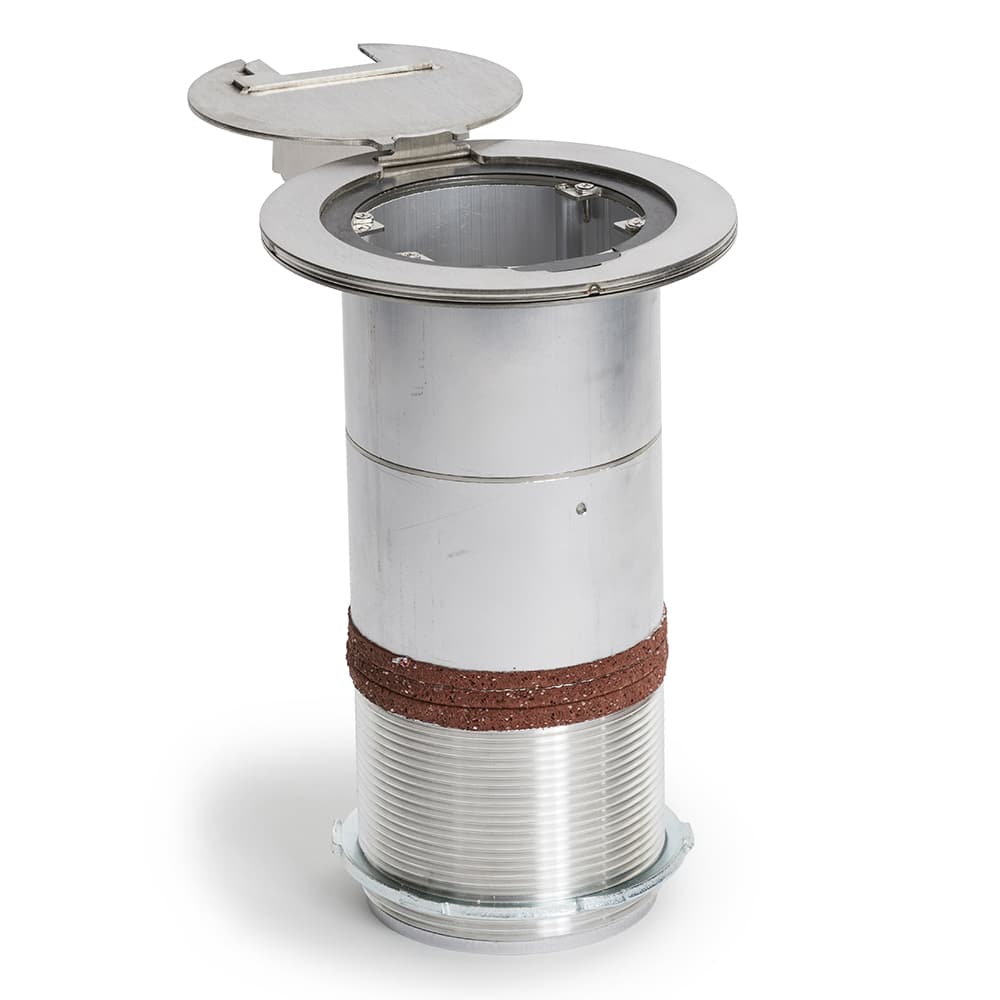

    The MOI4-REC multi-connect is a four inch (inside diameter) multi-use, recessed round poke-through assembly. It provides easy access to power, voice, and data connections in unobstructed flush-to-floor required applications. The attractive appearance and innovative design create option flexibility and functionality and is scrub test rated for any scenario. Using a four inch hole saw makes installation fast and easy. Future removal and reinstallation is easily accomplished if required. The box is UL 2-hour fire rated for the USA and Canada and is also CSA approved for Canada.

    The box is completely customizable with your choice of color, lid type, depth, and keystone openings.



    MOI-REC-top view_350px

    Available cover and color options:

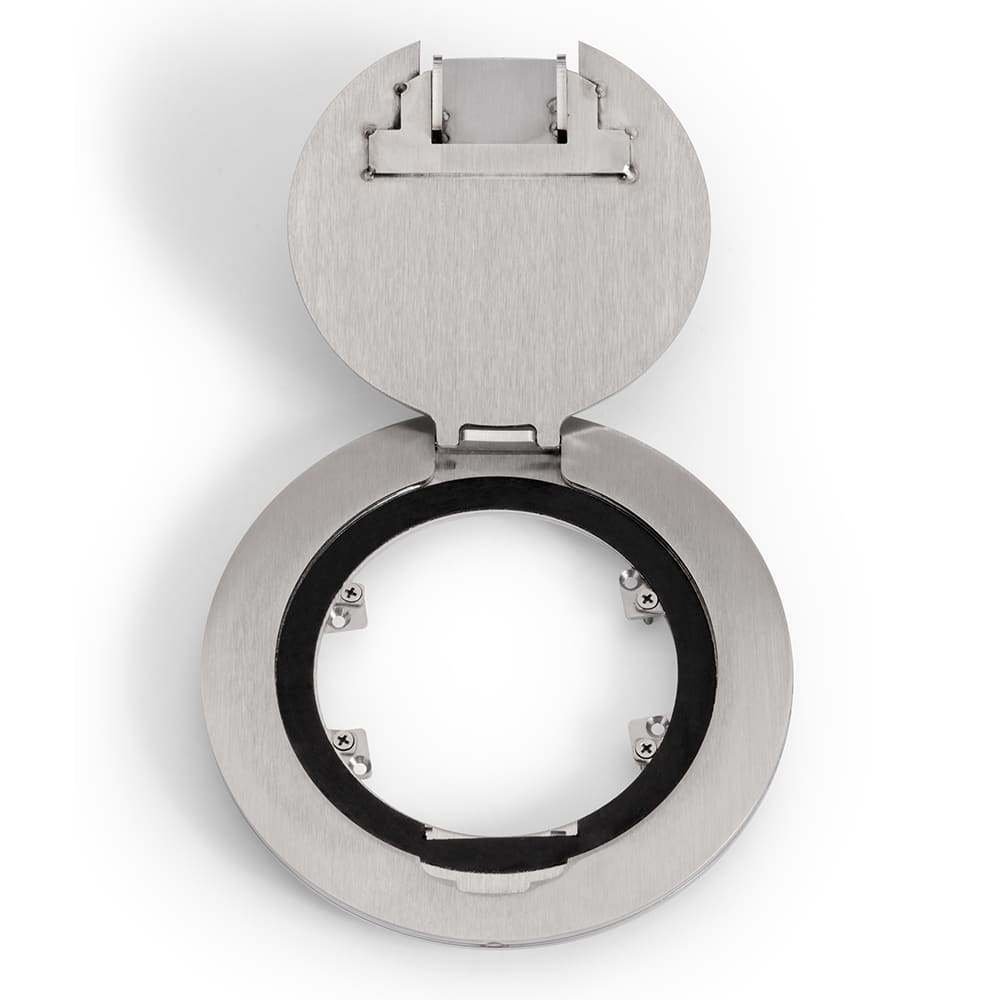

    AHC-CED: Articulated Hinged Cover with Cable Exit Door (Brass, Stainless Steel, Black)

    Configuration options:

    MOI-COMM10 (PDF drawing)

    MOI-PASS-THROUGH (PDF Drawing)

    MOI-PWR2-COMM5 (PDF Drawing)

    MOI-PWR4-COMM4 (PDF Drawing)

    MOI-DP1 (PDF Drawing)

    MOI-PWR2-COMM4 (PDF Drawing)

    MOI-PWR2-COMM6 (PDF Drawing)

    MOI-SYS-COMM (PDF Drawing)

    MOI-DP1-COMM4 (PDF Drawing)

    MOI-PWR2-COMM4-DB15 (PDF Drawing)

    MOI-PWR4 (PDF Drawing)

    MOI-AV-COMM4

    Additional Images

    Specifications

    • Totally enclosed and partitioned compartments for Power / Voice / Data in one unit
    • 4 to 10 jacks for Voice and Data in one unit
    • Threaded conduit openings reduce the risk of tampering (or need for access to connections) in ceiling space below
    • Completely flush with 1/4″ carpet or other flooring
    • Fast, simple installation (locknut eliminates need for concrete anchors)
    • Can be installed through floor before or after carpet installation
    • Recessed configuration allows for cover to be closed while in use



    UL Listings:

    • CSA #: 212271
    • Meets all UL standards required for the U.S.
    • Two-hour fire rating for both the U.S. and Canada

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG:
    Install Instructions: Download
