Category: Featured, Kitchen, PUR Series, PUR15 Wireless Charge, Qi Wireless Charging, Residential
Wireless Charging Kitchen Counter Pop Up With 15A (TR) Duplex Power/2USB (AC) receptacle, White
Great for Kitchen counters, kitchen islands, desktops, home office, schools, retail outlets and hotel rooms.
Key Features: Spill Proof. Wireless charging cover with Qi technology. Eliminates dangerous cords hanging from kitchen counters. 125V-15A (TR) Duplex Power/2USB (AC) Receptacle. USB Ports are 1 Type A (Class 2 QC3.0) AND 1 Type C (Class 2 PD2.0+QC3.0). Includes dust covers for USB ports.

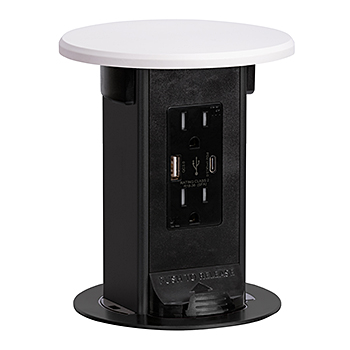

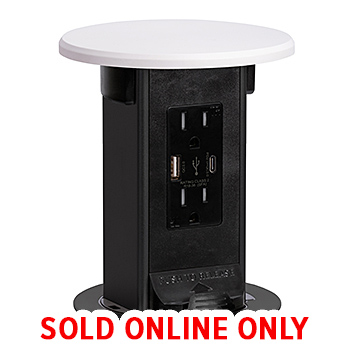

The Lew Electric PUR15-RWT-AC-2USB-QI wireless charging countertop pop up power outlet is designed to be hidden in a kitchen countertop or any other indoor surface where it is not possible or convenient to have a wall outlet. When in the closed position the outlet is hidden under the counter. When power is needed, simply press down on the spring-loaded top and the cylindrical unit raises up. The duplex outlet is 15 Amp rated, has two USB ports (1 Type A & 1 Type C) and tamper resistant (TR) plugs.
The PUR is spill proof when in the closed position and complies with the 2017 NEC code for Kitchen countertops. The white resin top holds up to heavy traffic and beautifully accents a wide color range of stone countertops. Installation is a breeze and only requires a single round hole to be cut into the countertop. No other tools are required.
Features – PUR Countertop Box:
Installation Guide – PUR Countertop Box:
- Color: White Resin Top
- Wireless Charging Cover: Qi
- Black outlet: 125V-15A (TR) Duplex Power/2USB Receptacle
- Tamper resistant (TR) plugs
- USB Ports: 1 Type A (Class 2 QC3.0) AND 1 Type C (Class 2 PD2.0+QC3.0)
- ETL listed for USA installations, # 4004534
- cETL listed for Canada installation, # 4004534
- CSA approved for Canada, #C22.2
- Conforms to UL 514A and 498
- UL listed receptacle, # E491706
- Water protection: IP 54 Spill proof rated
- Waterproof gasket under bezel *Consult with electrician and inspector before ordering
- Cover Diameter: 4 7/8″ round
- Cutout size: 3 3/4″ round, ***It is recommended to have the product in hand before cutting***
- Pop up height: 6 1/2″
- Under counter depth when closed: 10″
- Works in counter thickness: 3/8″ – 2 3/16″
- 9 foot corded 3 prong flat plug
- Install using a licensed electrician
- Designed for indoor installations only
- Includes matching white resin trim ring
- 1 year warranty
Drawings and Resources
|Install Instructions: Download|
