Kitchen Counter Pop Up Power Outlet Assembly With 20A (TR) Self-Testing GFI Receptacle – Black, With 20A Power Cord.
Great for Kitchen counters, kitchen islands, desktops, home office, schools, retail outlets and hotel rooms.

  • Share this product:
  • Product Description

    Kitchen Countertop Pop Up 20A GFCI Protected Power Outlet, Black, With 20A Power Cord

    Great for Kitchen counters, kitchen islands, desktops, home office, schools, retail outlets and hotel rooms

    Key Features: Eliminates dangerous cords hanging from kitchen counters. Now includes self testing GFI receptacles as standard. Solves the need to have power where a wall outlet is not possible in kitchen. Includes 9 foot 20A power cord.

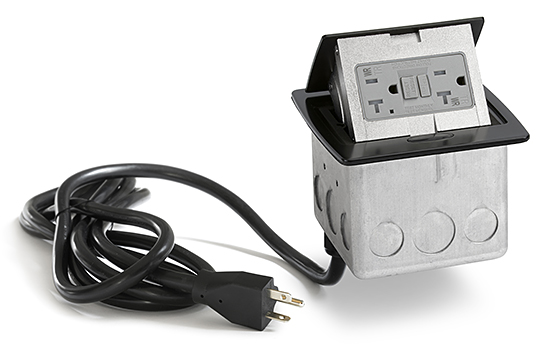

    Lew Electric PUFP-CT-BK-GFI-WC open on counter

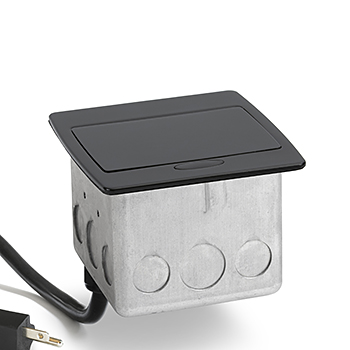

    The Lew Electric PUFP-CT-BK-GFI-WC countertop pop up box is designed to be hidden in a kitchen countertop or any other indoor surface where it is not possible or convenient to have a wall outlet. When in the closed position the outlet is hidden under the counter. When power is needed, simply press the spring-loaded button and the top raises up. The outlet is 20 Amp rated, integrated GFCI protection, has tamper resistant (TR) plugs, and is also weather resistant.

    The pop up features an IP44 water rating and is splash rated. There is also a gasket under the bezel to prevent water intrusion from underneath the cover.

    Additional Images


    • 20A GFCI
    • Black metal top
    • IP44 Splash proof rated
    • Tamper resistant outlets
    • Includes 9 foot 20A Power Cord
    • Waterproof gasket under bezel  *Consult with electrician and inspector before ordering
    • Includes back box shown in picture
    • Bezel dimensions: 4 11/16″ X 4 11/16″
    • Cutout dimensions: 4 1/16″ x 4 1/16″,  ***It is recommended to have the product in hand before cutting***
    • Space Needed Below Counter: 3.13″
    • Counter thickness: 1/2″ to 2″
    • Back box dimensions: 3 15/16″ x 4″


    Intertek_ETL_Listed_C_USConforms to UL standard 962A and 943;
    Certified to CSA STD.C22.2.; No. 308;

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG: Download
    Install Instructions: Download

    Certifications and Compliances

    PUFP Series Safety and Certifications:

    • ETL Certification Sheet (PDF)
    • Weather resistant (WR) outlet
    • ETL listed for USA installations, # 4004534
    • cETL listed for Canada installation, # 4004534
    • CSA approved for Canada, #C22.2
    • Conforms to UL standard 962A and 943
    • Certified to CSA STD.C22.2.; No. 308
    • UL listed receptacle: E473428
    • Water protection:  IP44 Spill proof rated top
    • Tamper resistant (TR) plugs
    • Gasket under bezel to keep water out
    • RoHS and Proposition 65 compliant
    • 1 year warranty
