RRP-2-LR-A-T

RRP-2-LR-A-T

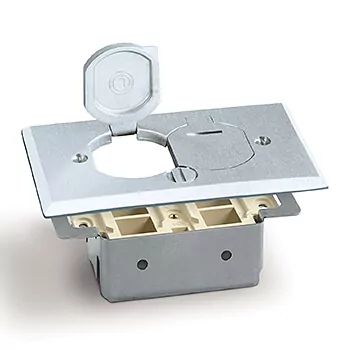

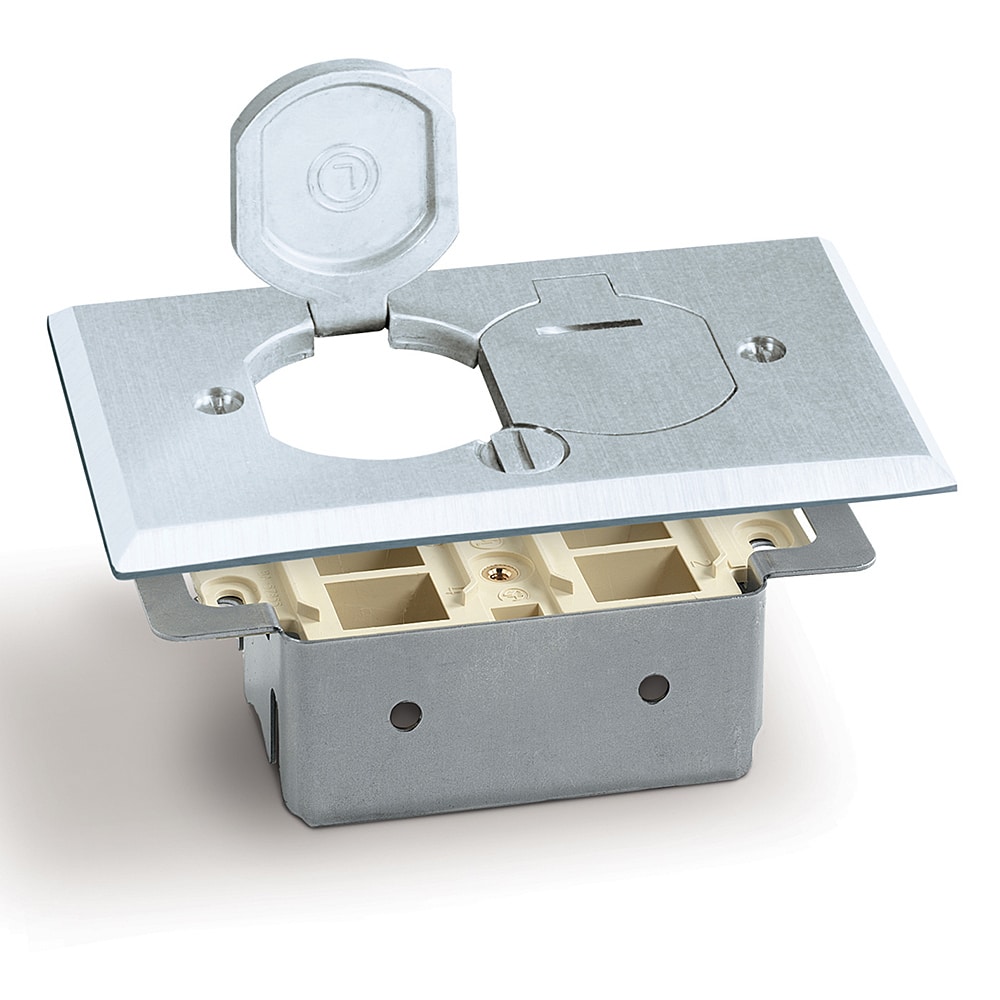

Quick Install Floor Plate, No Box, 4 Keystone, 2 Screw Plugs, Aluminum The Lew Electric RRP-2-A-T is a recessed floor plate with aluminum cover. The back box is not included, use with an approved 2″ x 3″ box with a depth of 3.5″. Inside the floor



Type: Product
Category: RRP Boxes and Covers, Residential

  • Share this product:
  •
  •
  • Product Description

    Quick Install Floor Plate, No Box, 4 Keystone, 2 Screw Plugs, Aluminum

    The Lew Electric RRP-2-A-T is a recessed floor plate with aluminum cover. The back box is not included, use with an approved 2″ x 3″ box with a depth of 3.5″. Inside the floor box is an empty 4 port keystone plate. The sleeve in the box is adjustable up to 3/4″ to accommodate any floor making installation a snap, screws are included to attach the plate to the receptacle box. The box may be attached directly to the floor or routed 3/4″ into a finished floor. The box cover includes two screw plugs to gain access to your connections. The box features a watertight construction, there is also a durable 1/16″ neoprene rubber gasket that goes between the connections and plate. This floor box is a simple and economical solution to provide your own keystone jack connections in a small and attractive plate.

    Additional Images

    Specifications

    Plate: 1/8″ aluminum 2 watertight screw plugs 4 port empty keystone plate Must use your own back box Adjustable up to 3/4″ Attach to floor or route into finished floor Includes 1/16″ neoprene rubber gasket Includes plate screws Cover size:  4 5/8″ x 2 7/8″ Cutout size: Can’t exceed 2 1/8″ x 3 1/2″ Warranty:  1 year UL & NEMA RECOGNITION
    • Meets NEMA WD1-1983 heavy duty requirement for display receptacle
    • All receptacles tamper resistant; UL listing #E333616 (duplex); E237396 (single)
    FEATURES & BENEFITS
    • Fits any manufacturer’s 3 1/2″ deep switch box
    • Receptacle with neoprene gasket included
    • Water tight assembly
    • Adjustable up to 3/4″ to accommodate any floor

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG: Download
    Install Instructions: Download

    Certifications and Compliances
