PUFP-SQ-BR-GFI

PUFP-SQ-BR-GFI

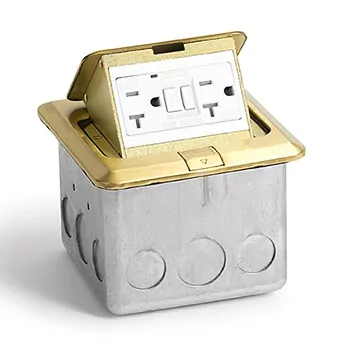

Brass, pop up floor plate assembly, with 20 amp (TR) GFI receptacle   The Lew Electric PUFP-SQ-BR-GFI is an indoor floor box that provides 20A GFCI protected duplex power in a hidden and attractive pop up. When closed the pop up is hidden in your



Type: Product
Category: PUFP Square Floor Boxes, Residential

  • Share this product:
  •
  •
  • Product Description

    Brass, pop up floor plate assembly, with 20 amp (TR) GFI receptacle

    The Lew Electric PUFP-SQ-BR-GFI is an indoor floor box that provides 20A GFCI protected duplex power in a hidden and attractive pop up. When closed the pop up is hidden in your floor, all you see is a stylish brass top. When you push the button the top tilts open revealing the power outlet. The outlet is 20 amps with tamper resistant plugs, and is UL listed and water rated.

    This pop up is perfect for any locations where you need hidden power, or locations where a wall out is not available. The pop up has been optimized to work perfectly in any indoor residential or commercial application with wood floors. The unit as a whole is UL listed including the outlet, it is also cUL recognized for Canadian installations. In the closed position the top is UL compliant to keep out dust and scrub water, there is also a gasket under the bezel to keep out water from entering from the sides.

    The outlet needs to be hardwired through the included back box and to the outlet. The back box only takes up 3 1/8″ of space under your floor allowing it to be installed almost anywhere. The hole that needs to be cut in your floor is 4 1/16″ x 4 1/16″, the top bezel is 4 3/4″ x 4 3/4″.

    The box is an excellent choice for any commercial or residential application that needs affordable power supplied in a stylish pop up, it can be used in floors or even desks.

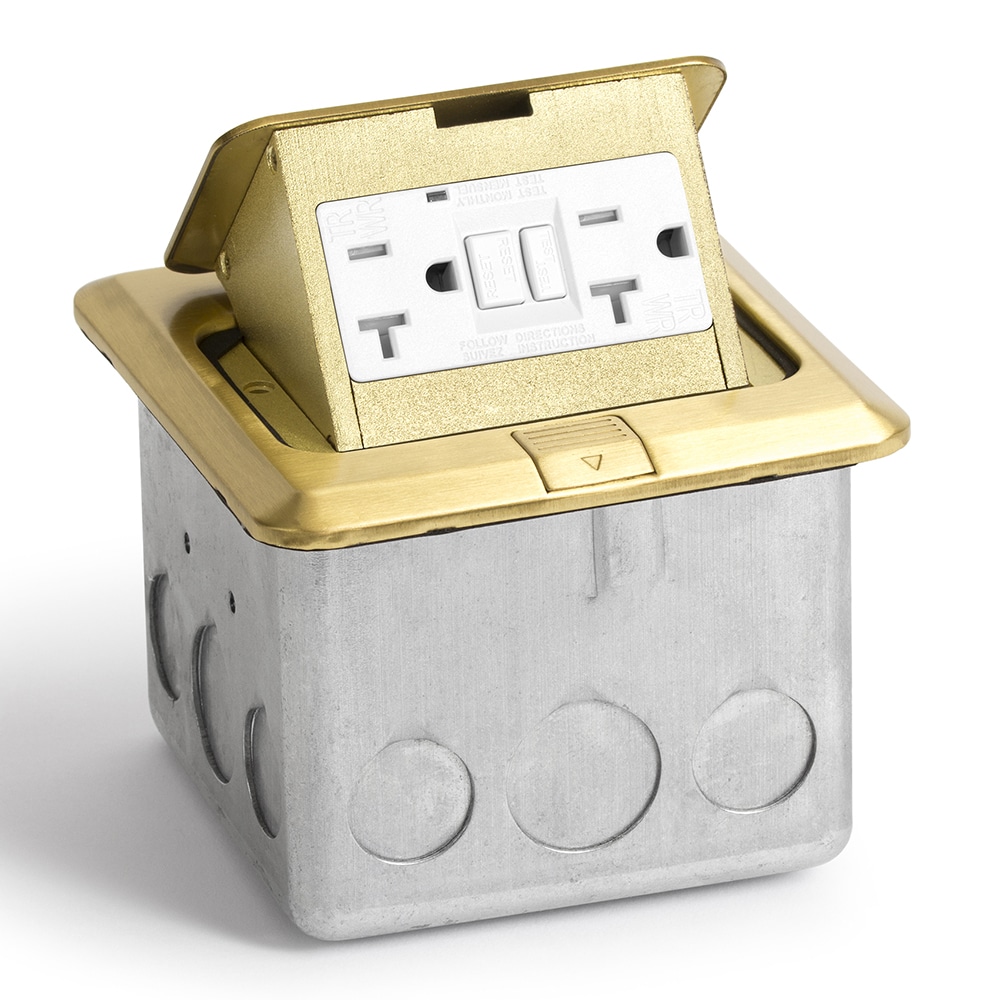

    Additional Images

    Specifications

    All counter top plates 47/8 W x 43/4 L x 31/2 H and include PUFP-WB box Features and Benefits
    • UL recognized 498, 514A, 943, 1059, and NEC 210.52(C). CUL recognized 22.2 #’s 42, 158, and 18.1-04.
    • UL listed receptacle: E229322
    • Pops up when in use
    • Hides in the box when not in use
    • For residential or commercial applications
    • Installs in concrete or wood floors
    • Scrub water tight construction
    • All PUFP style supplied with tamper resistant receptacles

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG:
    Install Instructions: Download

    Certifications and Compliances
