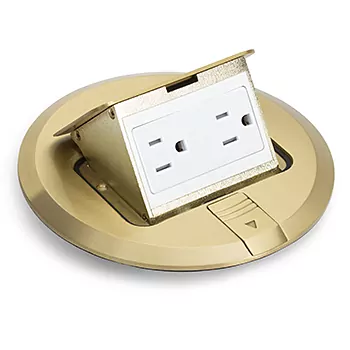

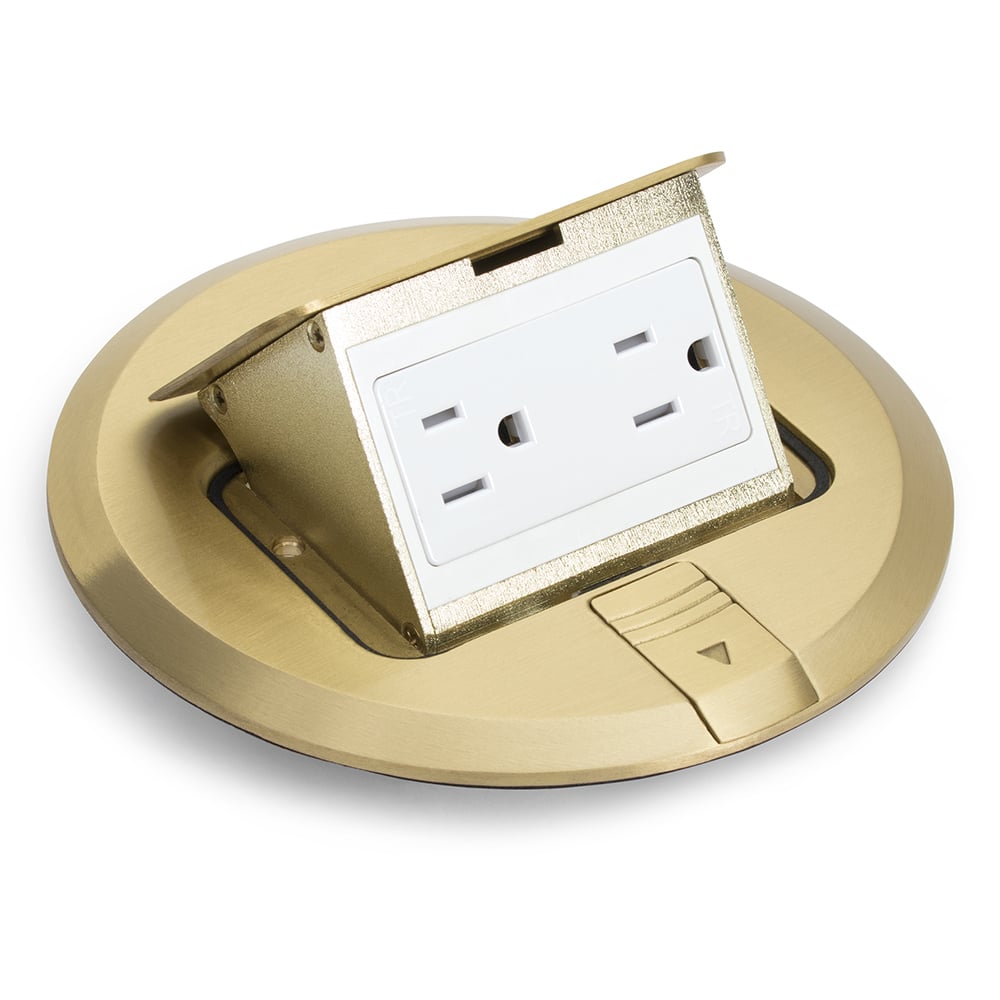

Six Inch pop up floor plate with with 15 amp (TR) Decora receptacle, Brass

  • Share this product:
  • Product Description

    Six Inch pop up floor plate with with 15 amp (TR) Decora receptacle, Brass

    The Lew Electric PUFP-BD is a round floor box cover that provides duplex power in a hidden and attractive pop up. When closed the receptacle is hidden beneath the floor. When the slide lever is pulled the top tilts open revealing the receptacle. The decora receptacle is 15 amps with tamper resistant plugs, and is UL listed. This pop up is perfect for any locations where hidden power is required, or locations where a wall outlet is not available. The unit as a whole is UL listed and is also cUL recognized for Canadian installations. In the closed position the top is UL compliant to keep out dust and scrub water.

    The pop up is a perfect choice for indoor residential or commercial applications in wood or concrete floors. For use in a subfloor application, the PUFP-WB wood floor box is required. For use in concrete, the PUFP-LRA leveling ring and FB round plastic floor box is required.

    Additional Images


    Requires PUFP-LRA to mount to FB box

    UL recognized components: PUFP series UL recognized 498; ETL listed P63

    • Top: Brass
    • Back box sold separately
    • UL rated for USA installations
    • cUL rated for Canadian installations
    • Outlet: 15 amps
    • Top: 6″ round
    • Tamper resistant (TR) plugs
    • Indoor residential or commercial installations
    • UL listed receptacle
    • Scrub water rated
    • 1 year warranty

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG: Download
    Install Instructions:

    Certifications and Compliances
