UTBUS-1
Product Description
Kramer UTBUS-1 Conference Table Box
The Kramer UTBUS-1 is a compact under table AV box enclosure that mounts to the edge of a conference table or counter, offering easy access to power and data/comm. The UTBUS series is ideal for applications that require surface tops to remain untouched. Installation requires only four small screw holes in the bottom of the counter/table top.
The UTBUS-1 series is offered in a black finish and is customizable for numerous combinations of power and data/com. Female connectors in the back of the box make connection with existing cables easy. This series is perfect for temporary AV applications as the enclosure can be easily moved to other areas of the counter/conference table top, or moved to different locations within an office or classroom. The enclosure measures 10.83″ wide x 4.02″ deep. The Depth under table is 2.56″.
Configuration options: Black finish

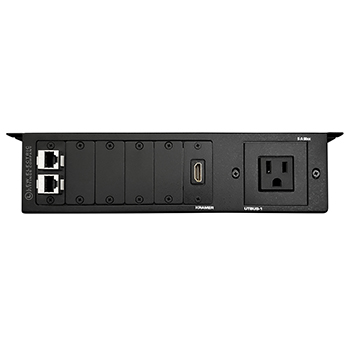

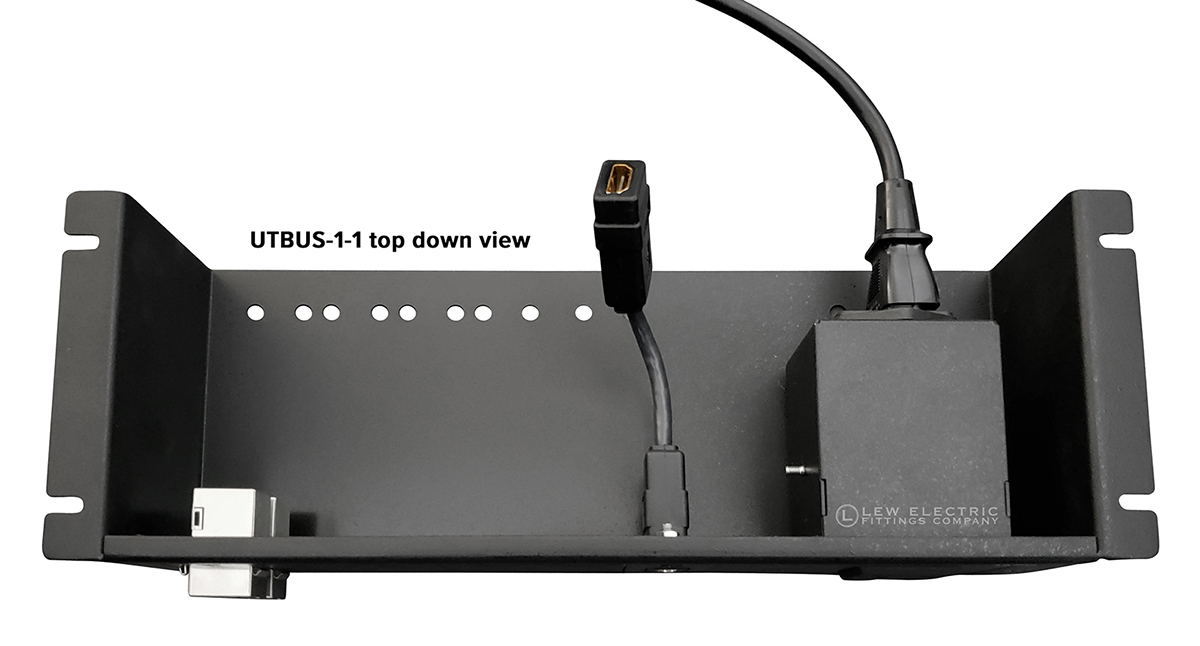

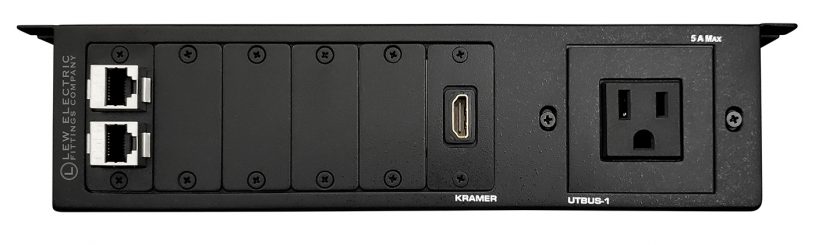

UTBUS-1-1
• 1 Power, 1 HDMI, 2 Cat6, 4 blank plates

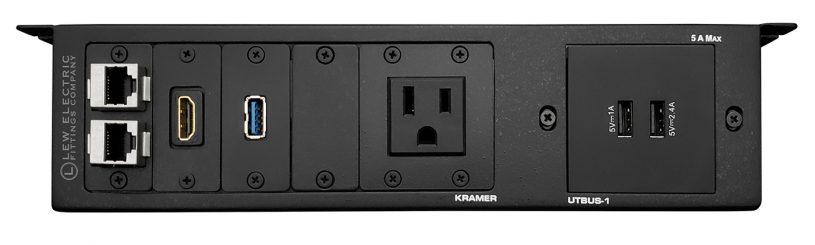

UTBUS-1-2
• 1 Power, 2 Charging USB, 1 HDMI, 1 USB 3.0, 2 Cat6, 1 blank plate

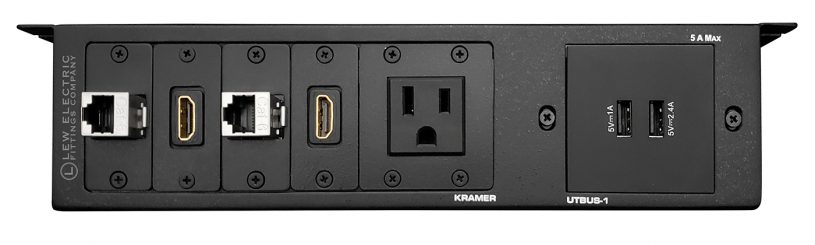

UTBUS-1-3
• 1 Power, 2 Charging USB, 2 HDMI,
2 Cat6

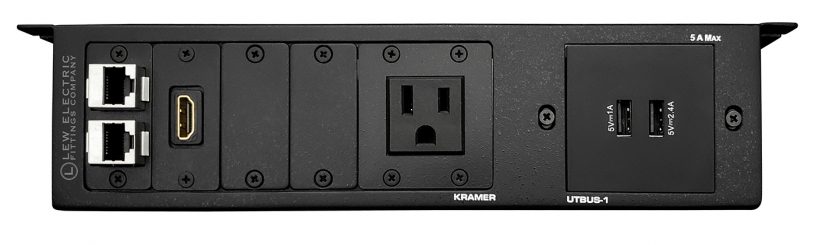

UTBUS-1-4
• 1 Power, 2 Charging USB, 1 HDMI, 2 Cat6, 2 blank plates

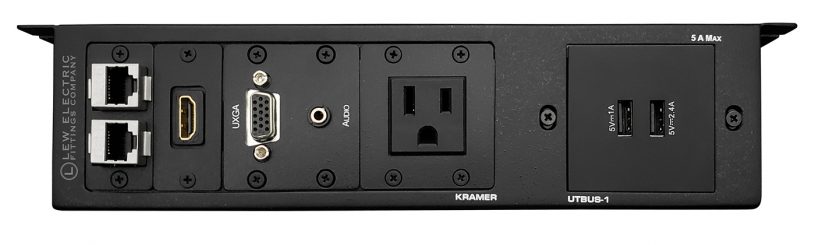

UTBUS-1-5
• 1 Power, 2 Charging USB, 1 HDMI, 1 VGA, 1 Audio, 2 Cat6

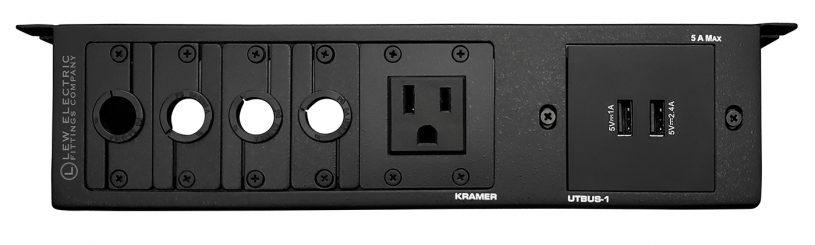

UTBUS-1-6
• 1 Power, 2 Charging USB, 4 Grommet Holes

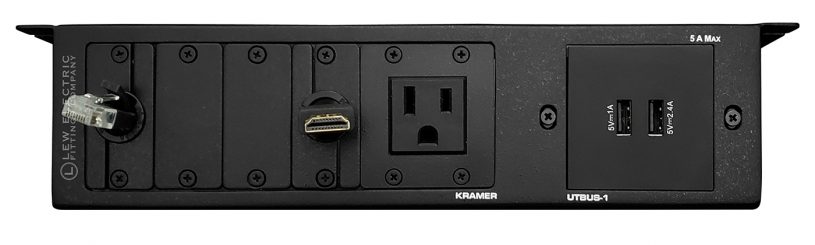

UTBUS-1-7
• 1 Power, 2 Charging USB, 1 Retracting HDMI, 1 Retracting Cat6,
2 blank plates

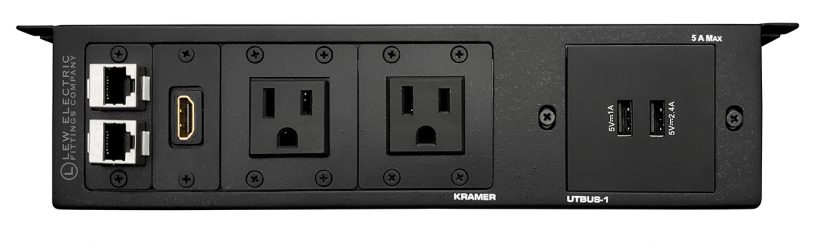

UTBUS-1-8
• 2 Power, 2 Charging USB, 1 HDMI, 2 Cat6
Additional Images
Specifications
- Color: Black
- Female connections on the back side
- Single 9-foot power cable
- UL listed for USA, cUL listed for Canada
- Dimensions: 10.83″ wide, 4.02″ deep
- Depth under table: 2.56″
- Screws to underside of table
- Includes screws and zip ties
- Minor assembly required
- 7 year warranty
Drawings and Resources
| Adobe PDF: Download |
| AutoCAD DWG: |
| Install Instructions: |
cULus listed
