TBUS-6
Product Description
Kramer TBUS-6 Conference Table Box

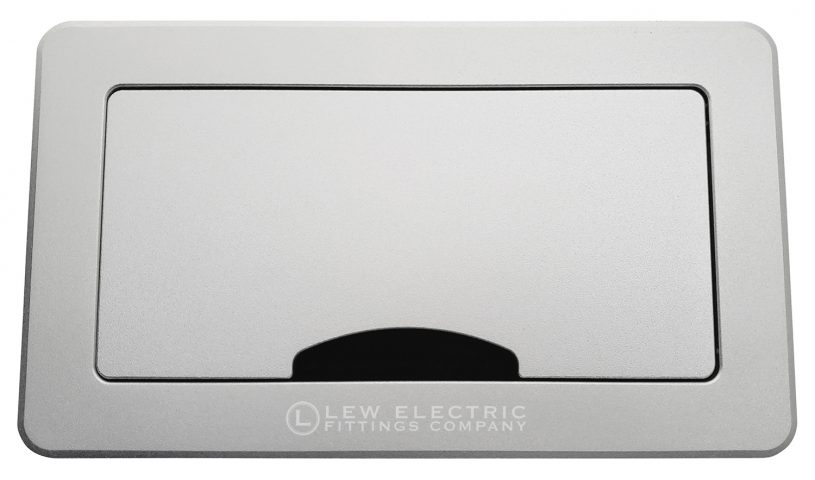

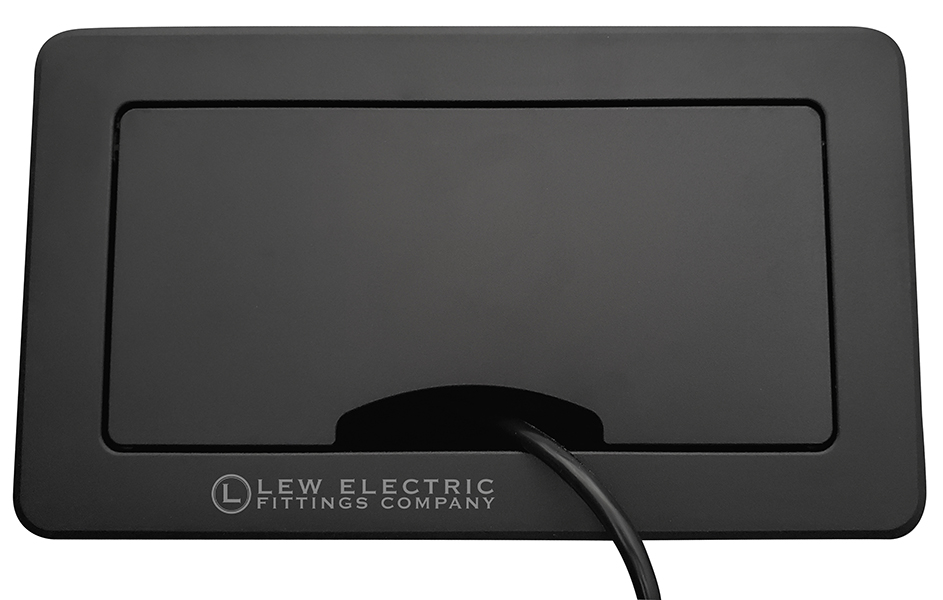

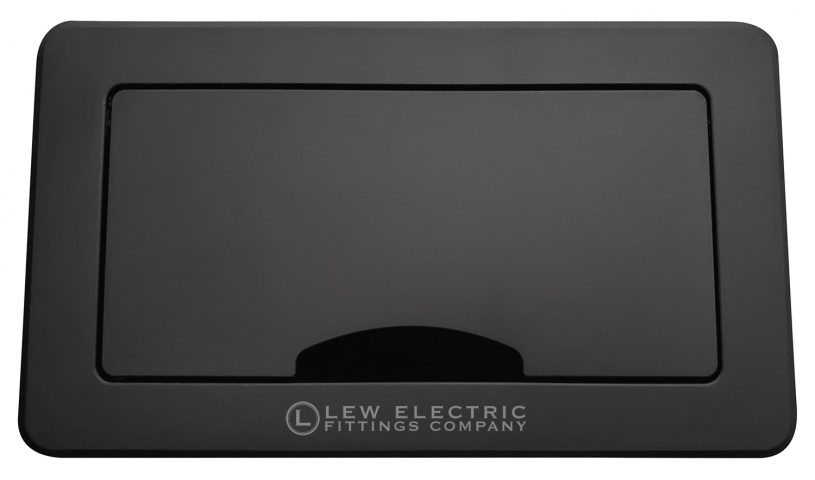

The Kramer TBUS-6 modular enclosure system offers style, form, and function in a mid-size rectangular box that is great for conference tables, classrooms, training facilities and lab tables. The TBUS-6 cover is offered in two striking and durable sand blasted anodized aluminum colors, Black or Silver. The cover has a low profile on the tabletop and is fully retractable, providing easy access to power and data/comm options inside the enclosure. When the cover is closed, a convenient notch allows cords to still be plugged in.
Each color offers eight different cable management combinations to meet all application needs. Choose any combination of power, HDMI, USB or Cat 6 that fits within the framework of the inner plates. The power cable is a single six-foot cord and the data/com connectors have female pigtails on the backside of the enclosure for easy connection to cables coming up from the floor.

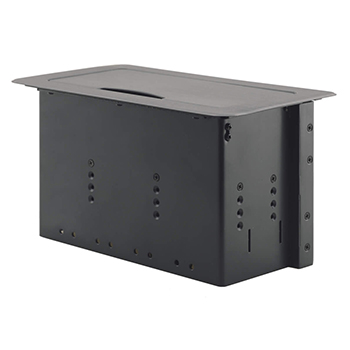

Installation is a quick and simple, requiring only one rectangular cut in the tabletop. No screws or glue are necessary to complete installation. The enclosure measures 8.7″ wide by 4″ deep by 5.1″ high. The cover is 9.6″ wide by 5.5″ deep.
Available color options:
Black or Silver
Configuration options:
Black cover configurations

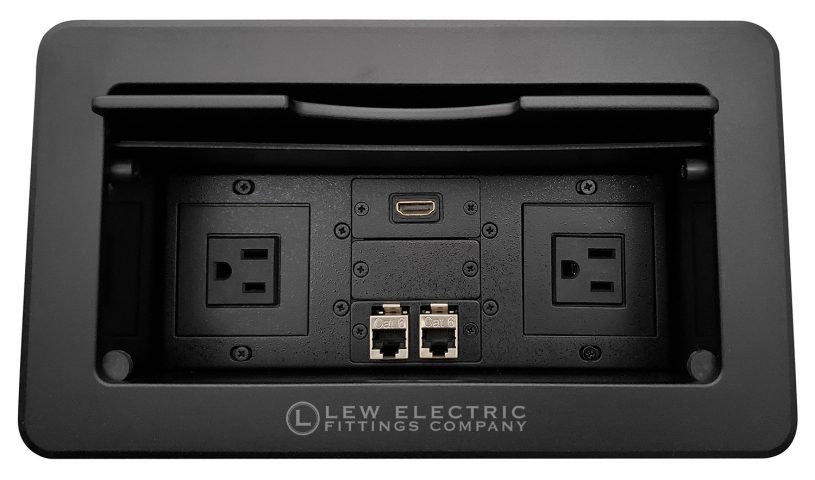

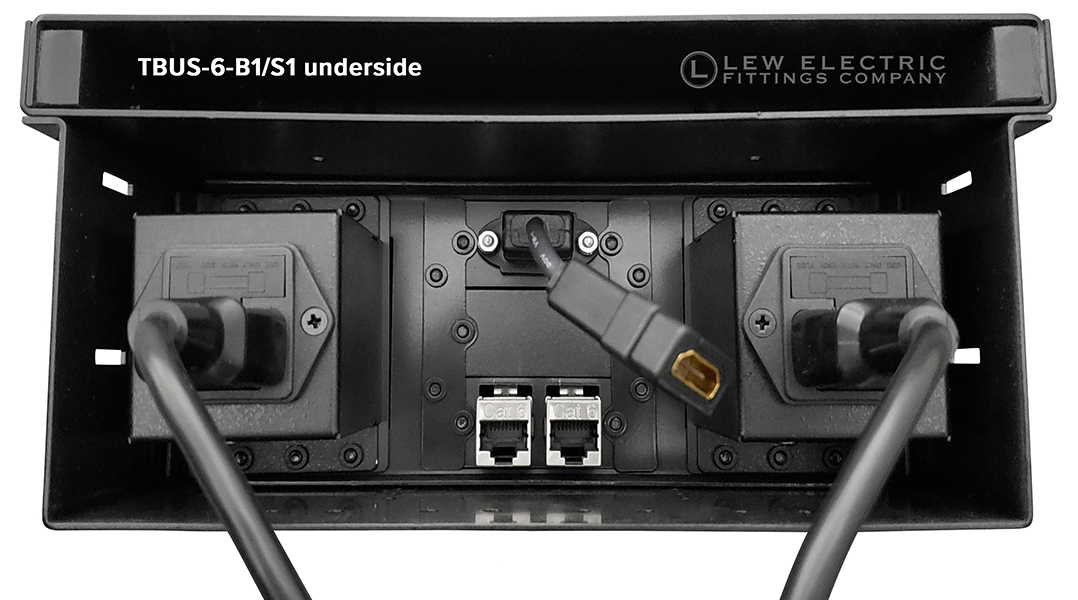

TBUS-6-B1
• 2 Power, 1 HDMI, 2 Cat6

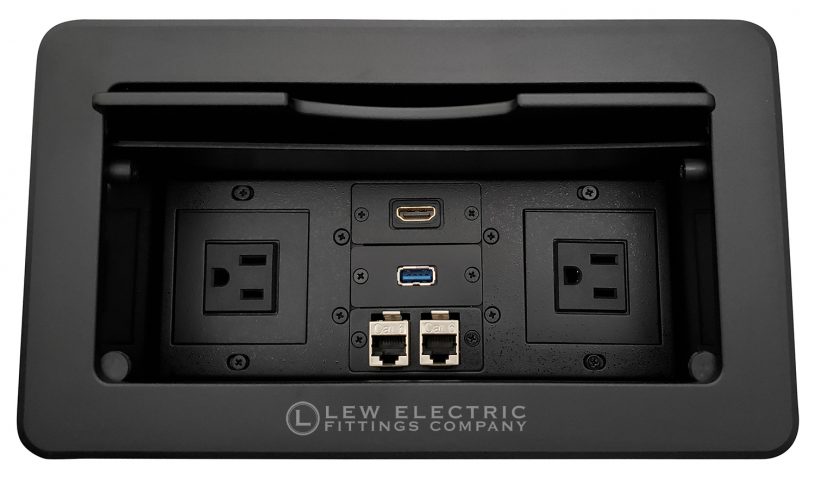

TBUS-6-B2
• 2 Power, 1 HDMI, 1 USB 3.0, 2 Cat6

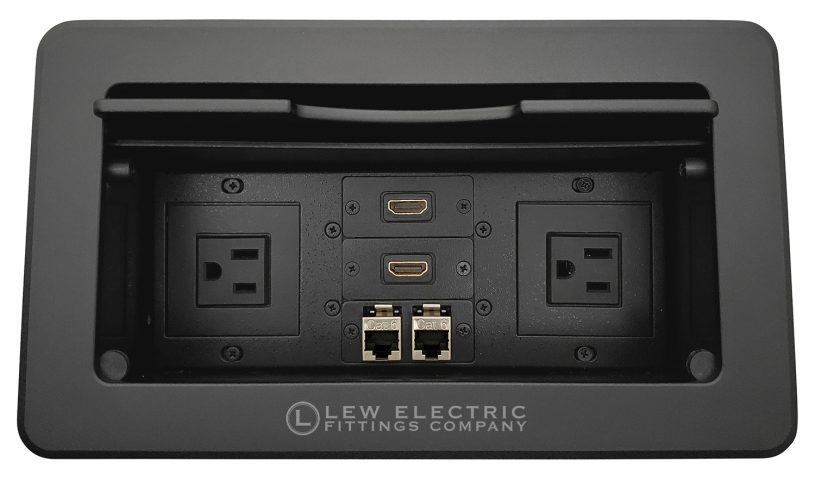

TBUS-6-B3
• 2 Power, 2 HDMI, 2 Cat6

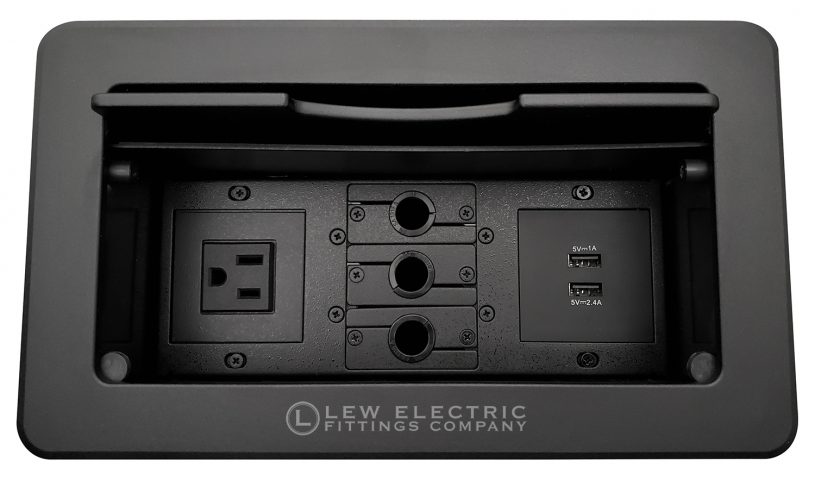

TBUS-6-B4
• 1 Power, 2 Charging USB, 3 Grommet Holes

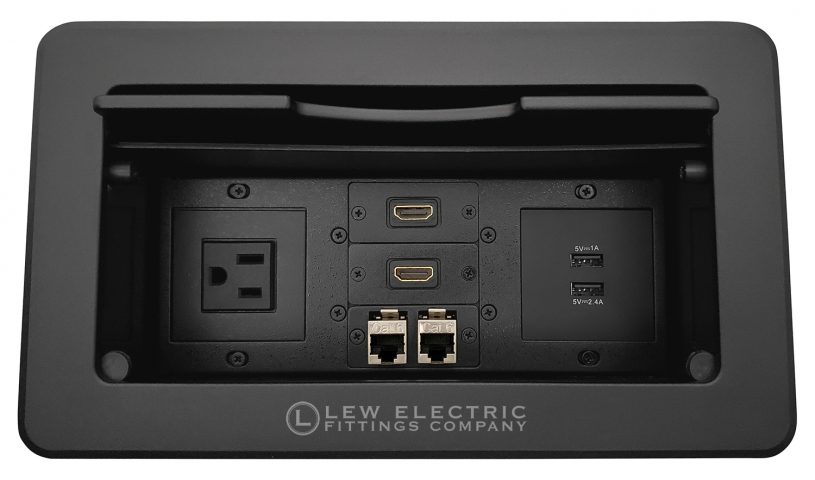

TBUS-6-B5
• 1 Power, 2 Charging USB, 2 HDMI, 2 Cat6

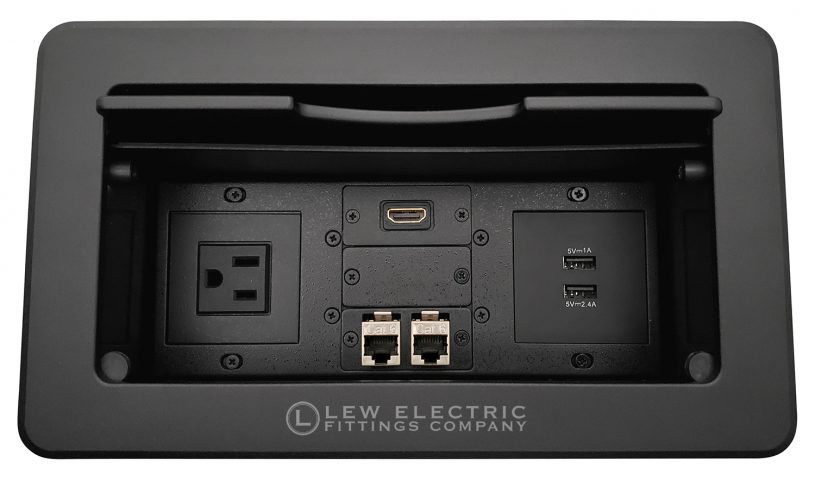

TBUS-6-B6
• 1 Power, 2 Charging USB, 1 HDMI, 2 Cat6

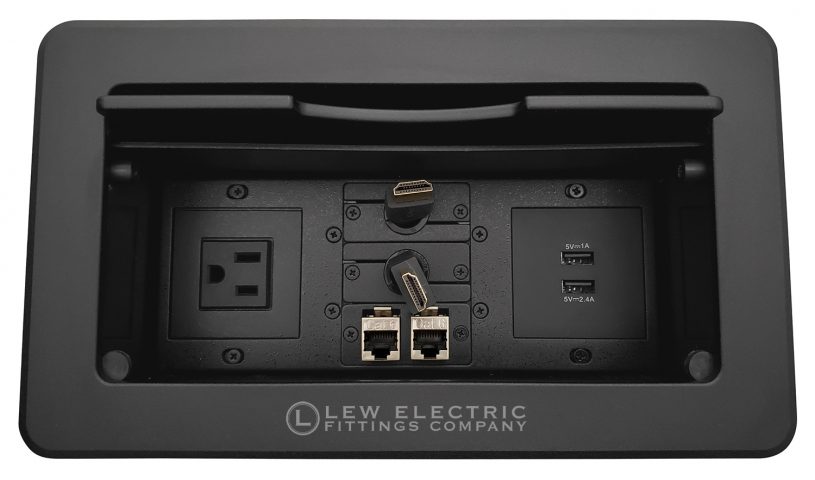

TBUS-6-B7
• 1 Power, 2 Charging USB, 2 Retractable HDMI, 2 Cat6

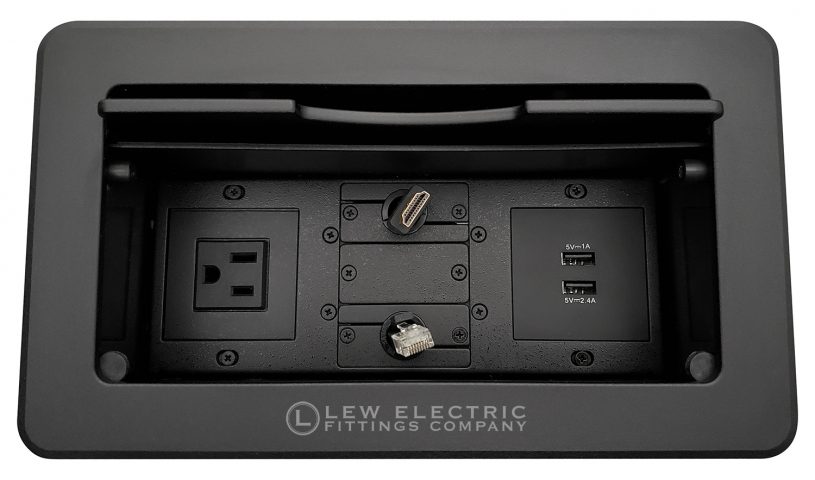

TBUS-6-B8
• 1 Power, 2 Charging USB, 1 Retractable HDMI, 1 Retractable Cat6
Silver cover configurations

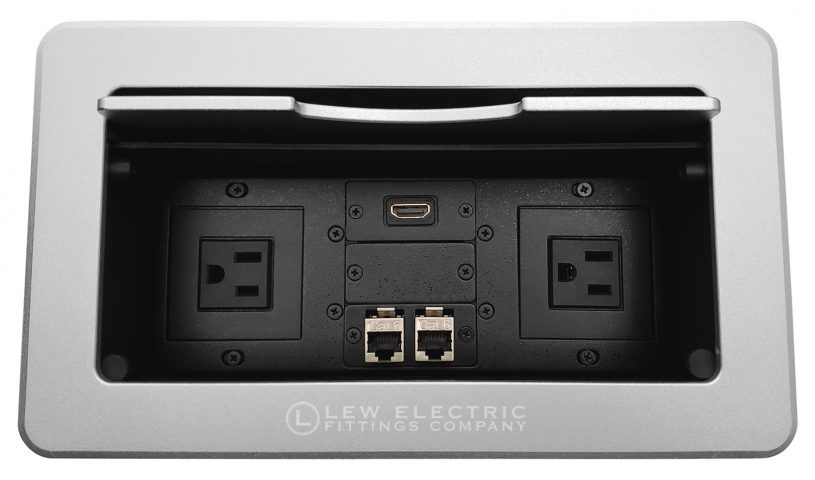

TBUS-6-S1
• 2 Power, 1 HDMI, 2 Cat6

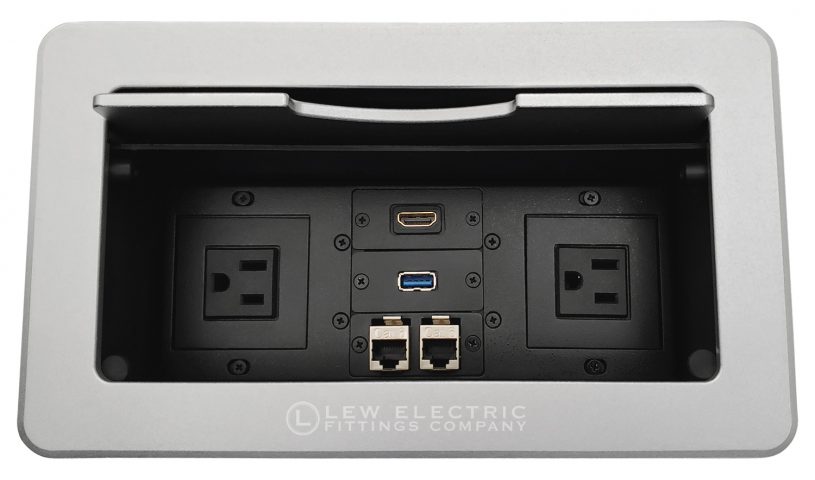

TBUS-6-S2
• 2 Power, 1 HDMI, 1 USB 3.0, 2 Cat6

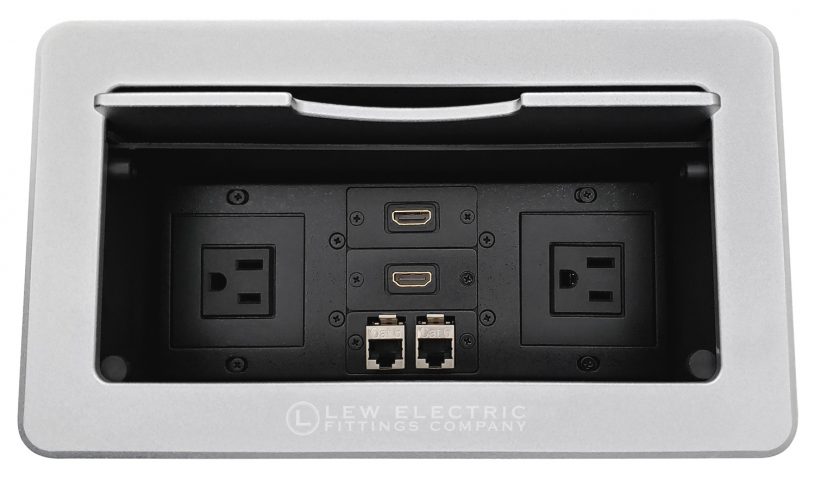

TBUS-6-S3
• 2 Power, 2 HDMI, 2 Cat6

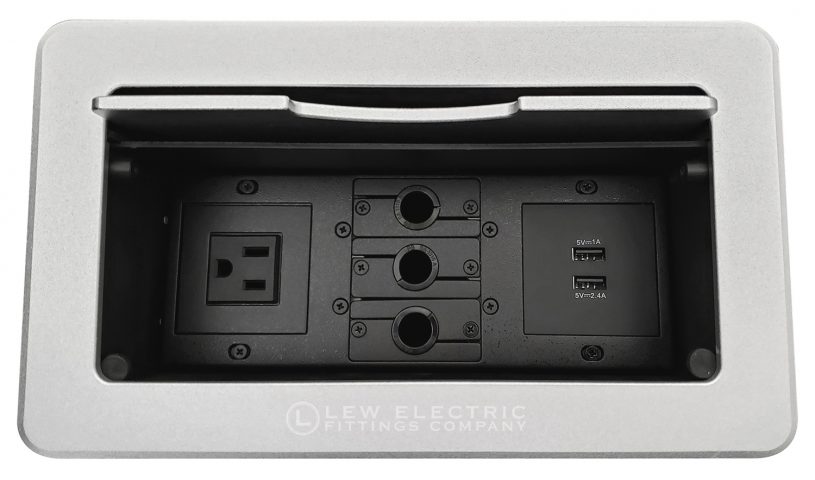

TBUS-6-S4
• 1 Power, 2 Charging USB, 3 Grommet Holes

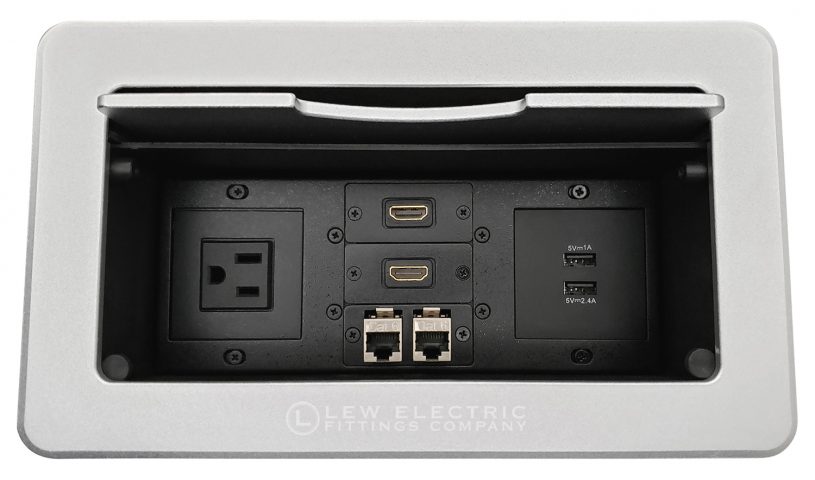

TBUS-6-S5
• 1 Power, 2 Charging USB, 2 HDMI, 2 Cat6

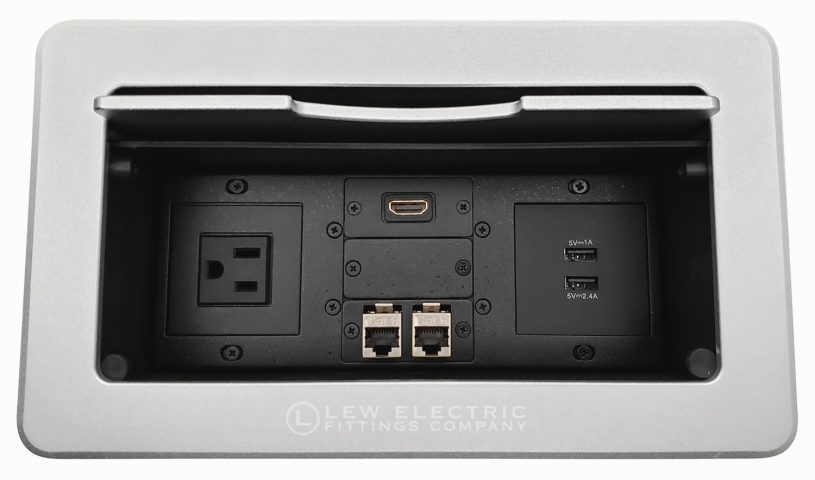

TBUS-6-S6
• 1 Power, 2 Charging USB, 1 HDMI, 2 Cat6

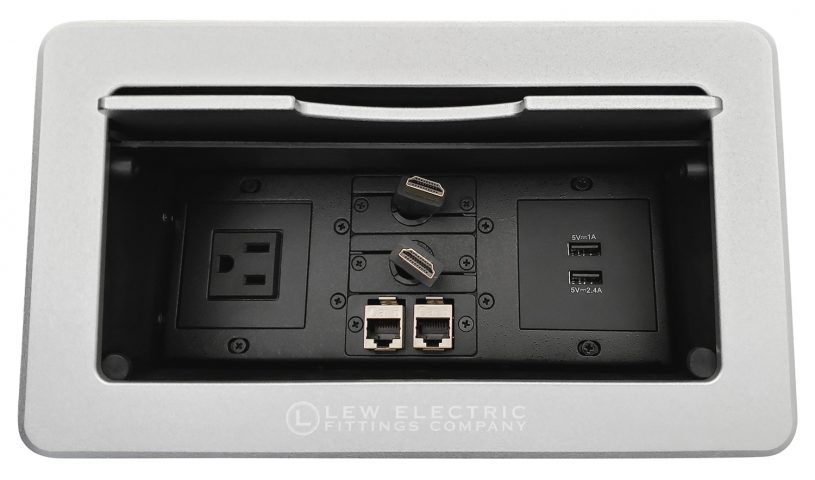

TBUS-6-S7
• 1 Power, 2 Charging USB, 2 Retractable HDMI, 2 Cat6

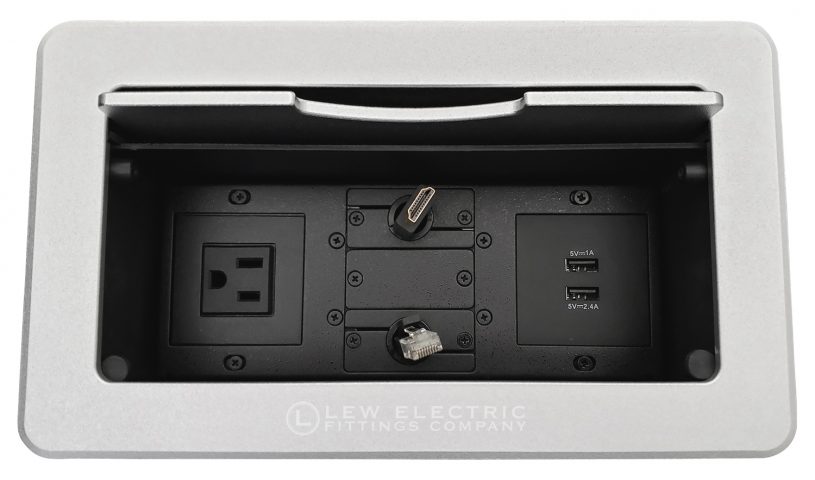

TBUS-6-S8
• 1 Power, 2 Charging USB, 1 Retractable HDMI, 1 Retractable Cat6
Additional Images
Specifications
- Color: Sand blasted anodized aluminum in Black or Silver

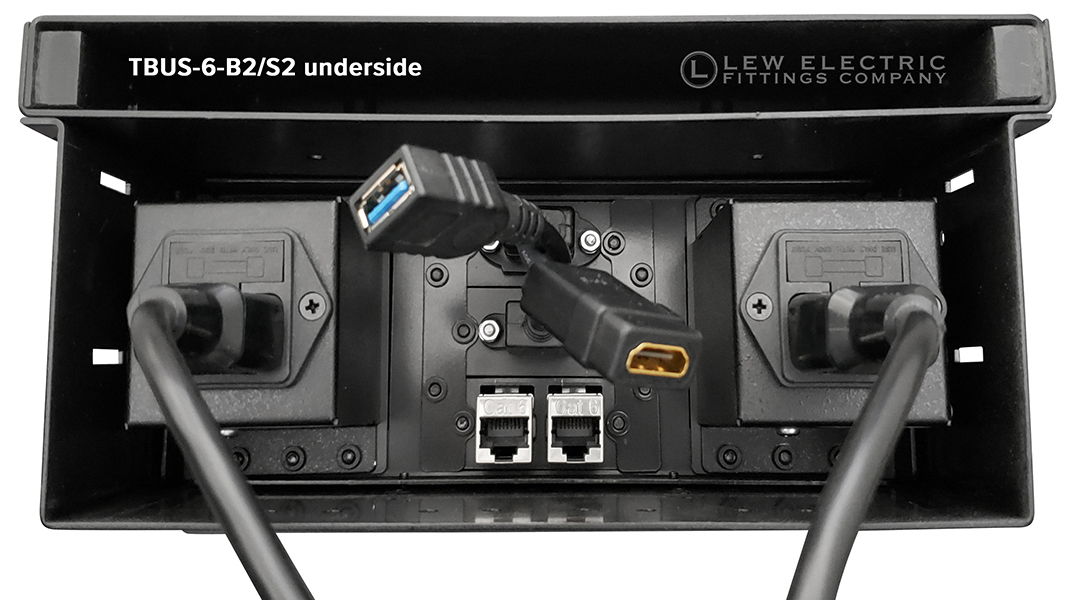

- Female connections on the backside of the enclosure

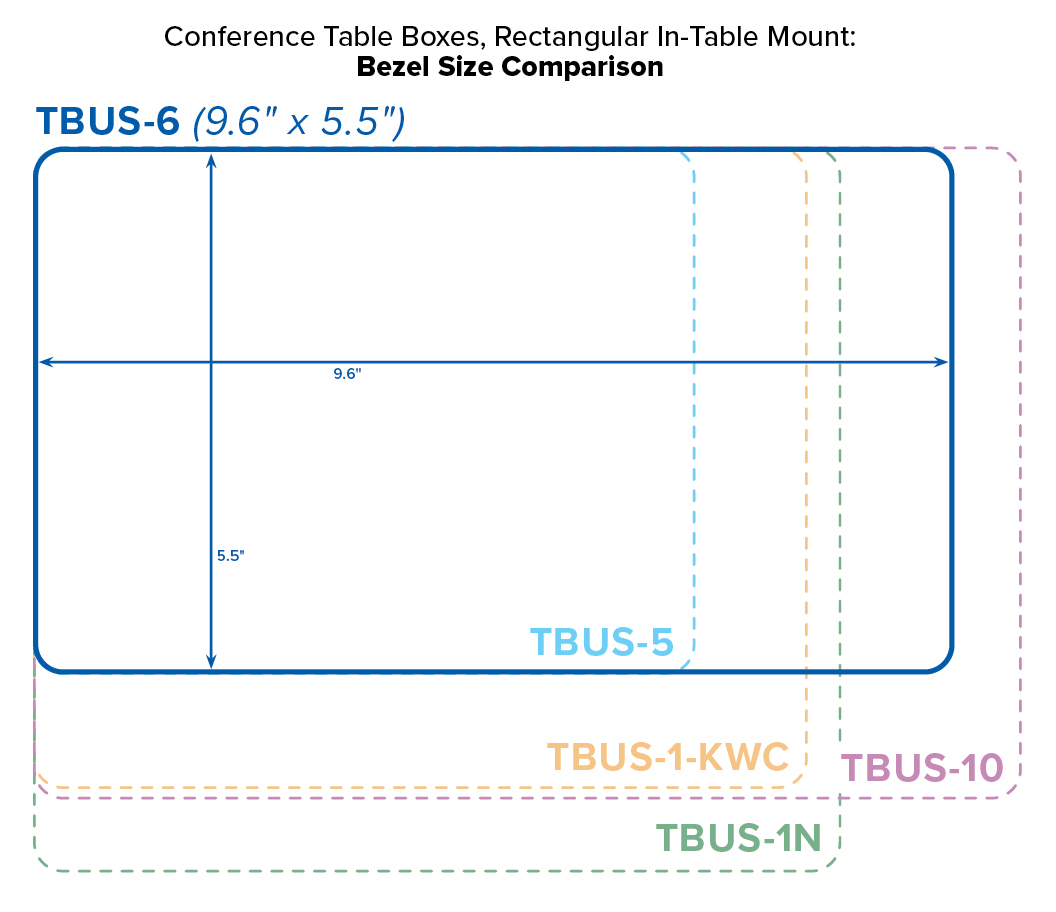

- Bezel size: 9.6″ x 5.5″
- Depth: 5.1″
- Cutout size: 8.87″ x 4.85″

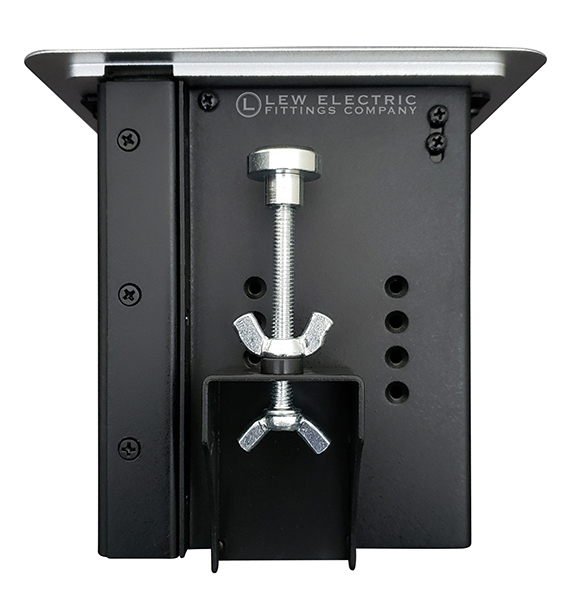

- Works in tables up to 3″ thick

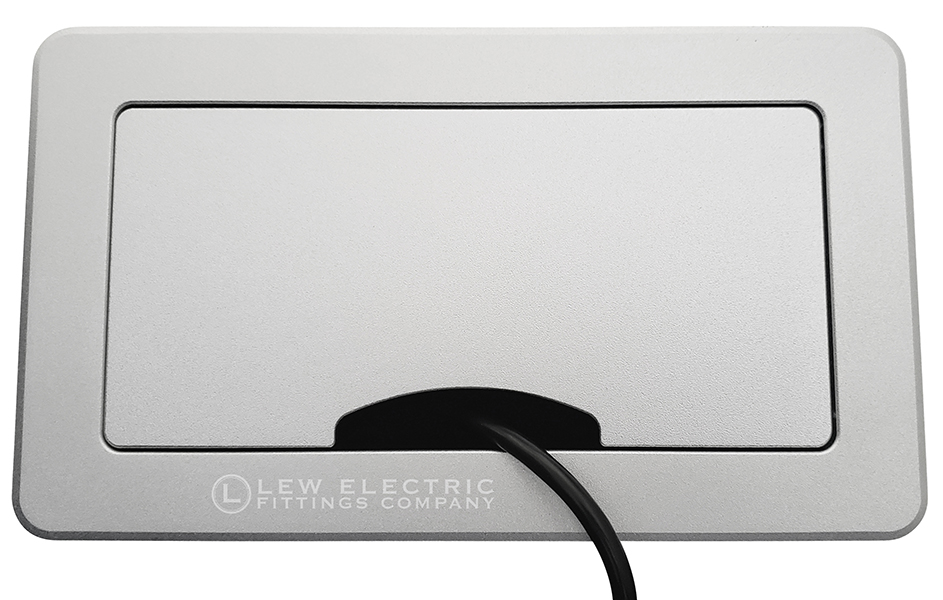

- Fully retracting lid with cable pass through opening
- Connections inside are height adjustable
- One 6-foot power cord with grounded plug
- All mounting hardware included
- Configurable for future changes
- Minor assembly required
- 7 year warranty
cULus listed
