PUR20-WT-GFI-2USB-AC

PUR20-WT-GFI-2USB-AC

Spill Proof Kitchen Counter Pop Up With 20A (TR) GFI Receptacle & 2 USB Ports (Type A&C) – White.

Great for Kitchen counters, kitchen islands, desktops, home office, schools, retail outlets and hotel rooms.


Type: Product
Category: Kitchen, PUR Series, PUR20 GFI, Residential

  • Share this product:
  •
  •
  • Product Description

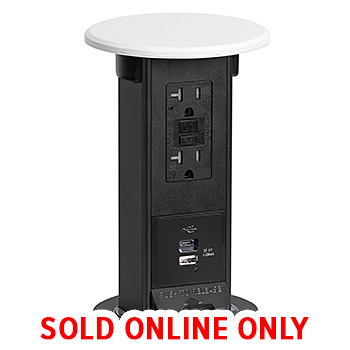

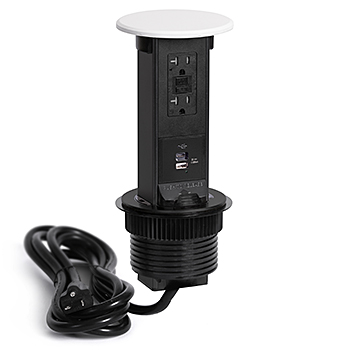

    Spill Proof Kitchen Counter Pop Up With 20A (TR) GFI Receptacle & 2 USB Ports (Type A&C), White

    Great for Kitchen counters, kitchen islands, desktops, home office, schools, retail outlets and hotel rooms.

    Key Features: Spill Proof. Eliminates dangerous cords hanging from kitchen counters. Now includes self-testing GFI receptacles as standard. Solves the need to have power where a wall outlet is not possible in kitchen. Only pop up on the market with GFI and 2 USB charging ports (Type A&C). USB Ports are Class 2 5VDC 3.6A. Includes dust covers for USB ports.

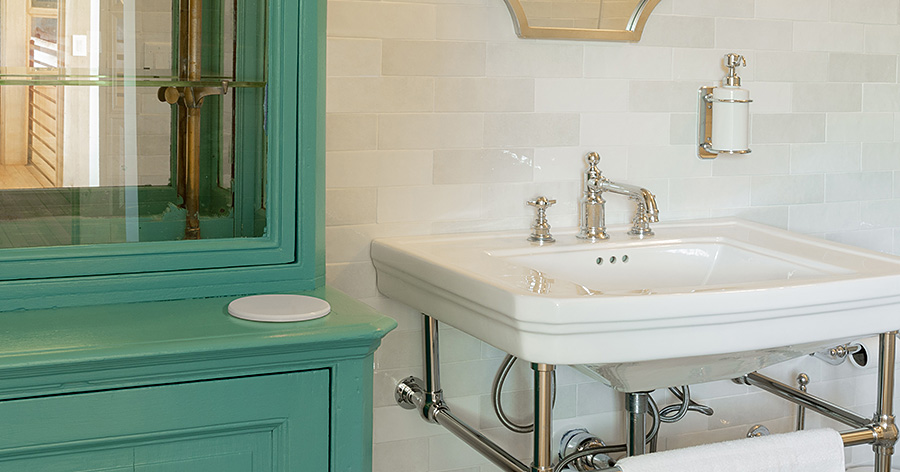

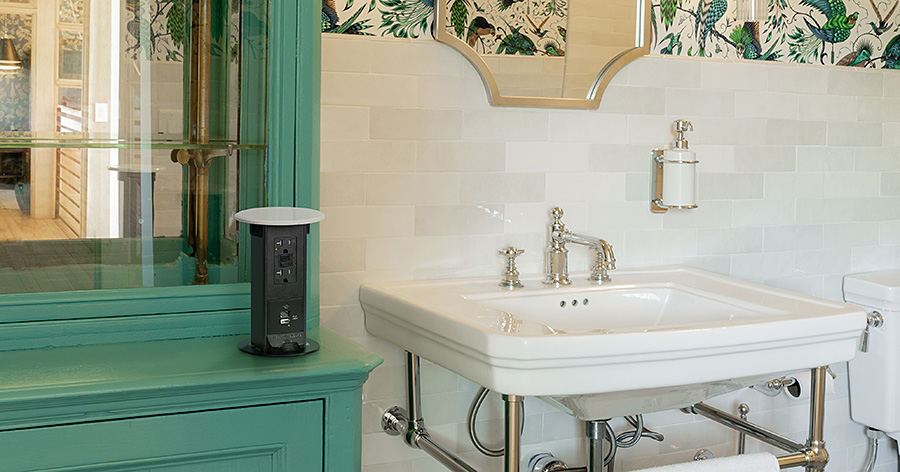

    The Lew Electric PUR20-WT-GFI-2USB-AC countertop pop up power outlet is designed to be hidden in a kitchen countertop or any other indoor surface where it is not possible or convenient to have a wall outlet. When in the closed position the outlet is hidden under the counter. When power is needed, simply press down on the spring-loaded top and the cylindrical unit raises up. The outlet is 20 Amp rated, integrated GFCI protection, has tamper resistant (TR) plugs, and is also weather resistant. The unit also contains two separate USB charging ports (1 Type A & 1 Type C). USB Ports are Class 2 5VDC 3.6A.

    The PUR is spill proof when in the closed position. The off-white colored metal top holds up to heavy traffic and beautifully accents a wide range of stone countertops. Installation is a breeze and only requires a single round hole to be cut into the countertop. No other tools are required.

    Additional Images

    Specifications

    • Color: White metal top
    • Black outlet: 20 Amp GFCI
    • Tamper resistant (TR) plugs
    • Weather resistant (WR) outlet
    • 2 Separate USB Charging Ports (1 Type A & 1 Type C)
    • USB Ports are Class 2 5VDC 3.6A
    • ETL listed for USA installations, # 4004534
    • cETL listed for Canada installation, # 4004534
    • CSA approved for Canada, #C22.2
    • Conforms to UL standard 962A and 943
    • UL listed receptacle, # E473428
    • Water protection: IP 54 Spill proof rated
    • Waterproof gasket under bezel  *Consult with electrician and inspector before ordering
    • Cover Diameter: 4 7/8″ round
    • Cutout size: 3 3/4” round,  ***It is recommended to have the product in hand before cutting***
    • Pop up height: 7 5/8”
    • Under counter depth when closed: 11 1/4”
    • Works in counter thickness: 3/8” – 2 3/16”
    • 9 foot corded 3 prong flat plug
    • Install using a licensed electrician
    • Designed for indoor installations only
    • Includes white trim ring
    • 1 year warranty

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG: Download
    Install Instructions: Download

    Certifications and Compliances

    ETL Certification (PDF)
