PUFP-SQ-SS-USB

PUFP-SQ-SS-USB

Pop Up floor plate assembly with 15A (TR) duplex Power/2USB Receptacle – Stainless Steel


Type: Product
Category: PUFP Square Floor Boxes, PUFP-SQ-SS, Residential

  • Share this product:
  •
  •
  • Product Description

    Pop Up floor plate assembly with 15A (TR) duplex Power/2USB Receptacle, Stainless Steel

    Great for residential and commercial floor applications. Can also be used in desktop applications.

    Key Features: Receptacle is hidden when not in use. Scrub watertight construction.

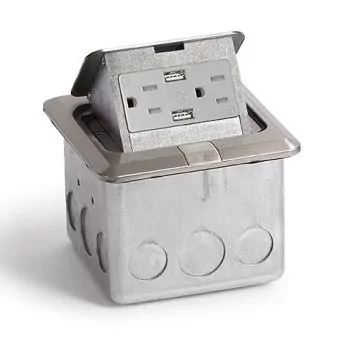

    The Lew Electric PUFP-SQ-SS-USB is a pop up floor box designed to be hidden in the floor where it is not possible or convenient to have a wall outlet. When in the closed position the outlet is hidden under the floor. When power is needed, simply pull the spring-loaded tab and the top raises up. The outlet is a 15 Amp rated duplex/2USB with tamper resistant (TR) plugs.

    The pop up features an IP44 water rating and is splash rated. There is also a gasket under the bezel to prevent water intrusion from underneath the cover.

    Additional Images

    Specifications

    • 15A DUPLEX/2USB
    • Stainless Steel metal top
    • IP44 Splash proof rated
    • Tamper resistant outlets
    • Hardwired power
    • Waterproof gasket under bezel  *Consult with electrician and inspector before ordering
    • Includes PUFP-CT-WB box shown in picture
    • Bezel dimensions: 4 3/4″ X 4 3/4″
    • Cutout dimensions: 4 1/8″ x 4 1/8″, ***It is recommended to have the product in hand before cutting***
    • PUFP-CT-WB BOX dimensions: 3 1/8″ x 4″



    Intertek_ETL_Listed_C_USConforms to UL STD.514A and 498;
    Certified to CSA STD.C22.2.; No.18.1-04 and
    42-M1984; LEW ELECTRIC FITTINGS CO
    C-ETL-US #4004534

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG: Download
    Install Instructions: Download

    Certifications and Compliances

    PUFP-SQ Series Safety and Certifications:

    • ETL listed for USA installations, # 4004534
    • cETL listed for Canada installation, # 4004534
    • CSA approved for Canada, #C22.2
    • Conforms to UL 514A and 498
    • UL listed receptacle: E491706
    • Water protection: IP44 Spill proof rated top
    • Tamper resistant (TR) plugs
    • Gasket under bezel to keep water out
    • RoHS and Proposition 65 compliant
    • 1 year warranty
