PUFP-CT-DB-AC-WC

Lew Electric PUFP-CT-DB-20A-2USB-WC

PUFP-CT-DB-AC-WC

Kitchen Counter Pop Up Power Outlet Assembly With 20A (TR) Duplex Power/2USB Receptacle – Dark Bronze, With 20A Power Cord.

Great for Kitchen counters, kitchen islands, desktops, home office, schools, retail outlets and hotel rooms.



  • Share this product:
  •
  •
  • Product Description

    Kitchen Countertop Pop Up With 20A (TR) Duplex Power/2USB (AC) Receptacle, Dark Bronze, With 20A Power Cord

    Great for Kitchen counters, kitchen islands, desktops, home office, schools, retail outlets and hotel rooms

    Key Features: Eliminates dangerous cords hanging from kitchen counters. Includes 125V-20A (TR) Duplex Power/2USB (AC) Receptacle. USB Ports are 1 Type A (Class 2 QC3.0) AND 1 Type C (Class 2 PD2.0+QC3.0). Includes dust covers for USB ports. Solves the need to have power where a wall outlet is not possible in kitchen. Includes 9 foot 20A power cord.

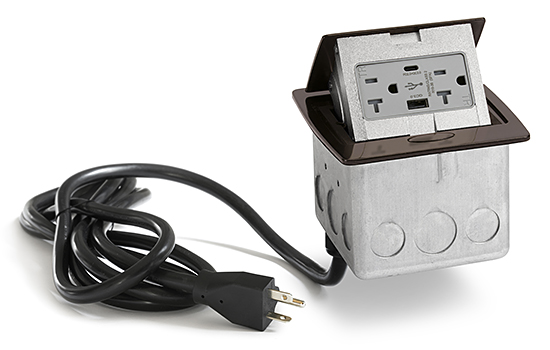

    Lew Electric PUFP-CT-DB-20A-2USB open


    The Lew Electric PUFP-CT-DB-AC-WC countertop pop up box is designed to be hidden in a kitchen countertop or any other indoor surface where it is not possible or convenient to have a wall outlet. When in the closed position the outlet is hidden under the counter. When power is needed, simply press the spring-loaded button and the top raises up. Includes 125V-20A (TR) Duplex Power/2USB (AC) Receptacle. USB Ports are 1 Type A (Class 2 QC3.0) AND 1 Type C (Class 2 PD2.0+QC3.0). Includes dust covers for USB ports.

    Additional Images

    Specifications

    • 20A Duplex Power/2USB (Type A and Type C) Receptacle
    • USB Ports are 1 Type A (Class 2 QC3.0) AND 1 Type C (Class 2 PD2.0+QC3.0)
    • Dark Bronze metal top
    • IP44 Splash proof rated
    • Tamper resistant outlets
    • Includes 9 foot 20A Power Cord
    • Waterproof gasket under bezel  *Consult with electrician and inspector before ordering
    • Includes back box shown in picture
    • Bezel dimensions: 4 11/16″ X 4 11/16″
    • Cutout dimensions: 4 1/16″ x 4 1/16″,  ***It is recommended to have the product in hand before cutting***
    • Space Needed Below Counter: 3.13″
    • Counter thickness: 1/2″ to 2″
    • Back box dimensions: 3 15/16″ x 4″



    Intertek_ETL_Listed_C_USConforms to UL standard 962A;
    Certified to CSA STD.C22.2.; No. 308;
    LEW ELECTRIC FITTINGS CO

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG: Download
    Install Instructions: Download

    Certifications and Compliances

    PUFP Series Safety and Certifications:

    • ETL Certification Sheet (PDF)
    • ETL listed for USA installations, # 4004534
    • cETL listed for Canada installation, # 4004534
    • CSA approved for Canada, #C22.2
    • Conforms to UL standard 962A
    • Certified to CSA STD.C22.2.; No. 308
    • UL listed receptacle: E491706
    • Water protection: IP44 Spill proof rated top
    • Tamper resistant (TR) plugs
    • Gasket under bezel to keep water out
    • RoHS and Proposition 65 compliant
    • 1 year warranty
