PB2-SPA
2 Duplex 15A Power Plastic Floor Box with Screw Plugs – Aluminum Cover The Lew Electric PB2-SPA is a plastic floor box with aluminum cover. Inside the box you will find two 15 amp duplex power receptacles with tamper proof plugs. The cover f
Product Description
2 Duplex 15A Power Plastic Floor Box with Screw Plugs – Aluminum Cover

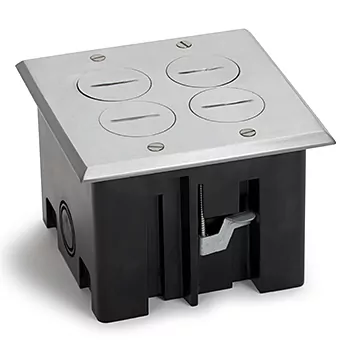

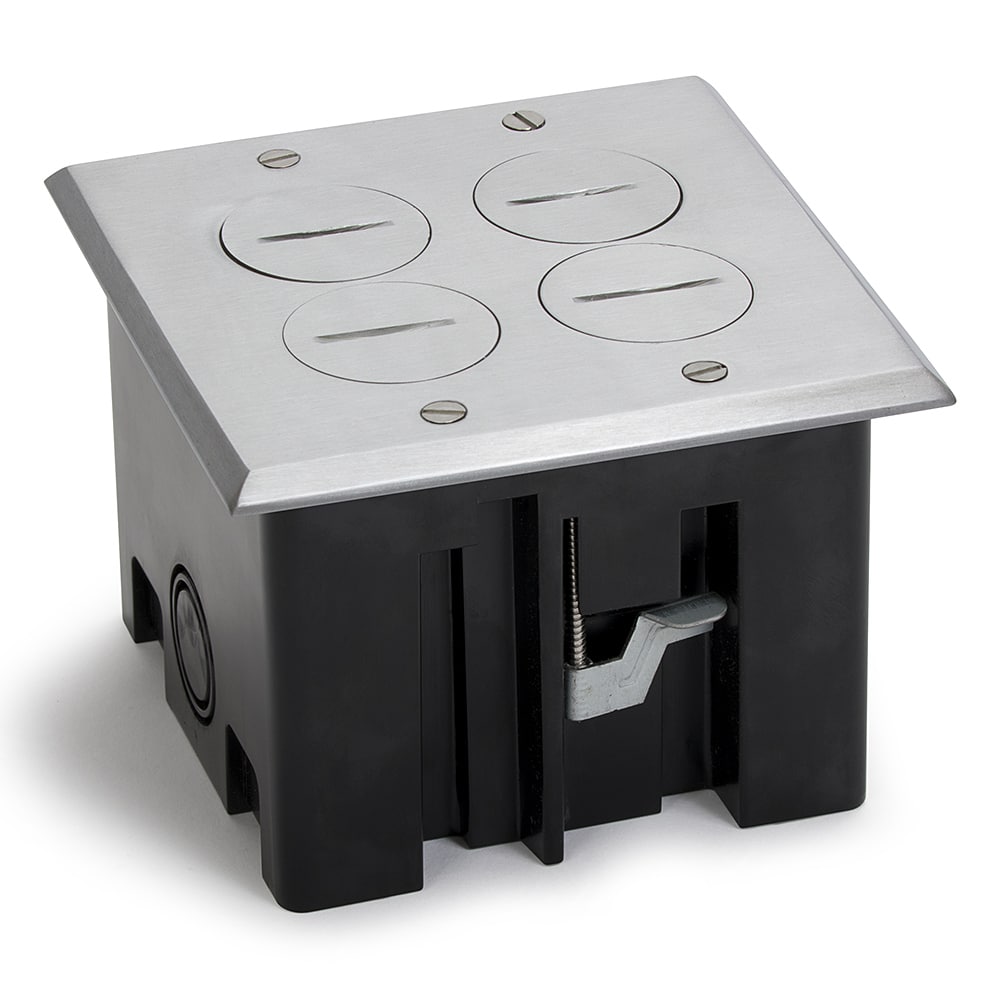

The Lew Electric PB2-SPA is a plastic floor box with aluminum cover. Inside the box you will find two 15 amp duplex power receptacles with tamper proof plugs. The cover features 4 screw plugs that provide secure access to your outlets in the box. The box that houses the receptacles is made out of a lightweight polymer construction that offers huge savings over traditional metal floor boxes. The box is easy to install and the adjustable wing clamp adds additional installation support when installed, there are 4 knockouts in the box to run your wire. The floor box is ETL listed for the USA and cETL listed for Canada installations, it also conforms to UL code 514C.
The compact floor box is affordable, easy to install, and supplies power in any finished floor.
Replacement cover: RRP-4-SPA
Replacement plug: 6215-A (Aluminum)
Additional Images
Specifications
Cover: Aluminum, 4 screw plugs Outlets: Two duplex 15A Size: 2 gang Tamper resistant plugs ETL listed for USA cETL listed for Canada ETL listing # 4004534 Conforms to UL514C Interior capacity: 45 cubic inches Cover dimensions: 5″ x 5″ Cutout dimensions: 4 5/16″ x 4 5/16″ Depth: 3 5/8″ Box material: Polymer For indoor installations only Wing screws secure box to sub floor Plate and outlet screws provided Warranty: 1 year| DIMENSIONS | INTERIOR CAPACITY | ||
| L | W | H | 45 Cu. In. |
| 5″ |
5″
|
3 5/8“ | |
❒ Lightweight polymer construction
❒ Options include choice of covers (aluminum or brass) and (flip lid or screw plug style)
❒ Economical savings over cast iron & stamped metal floor box assemblies
❒ Ease of installation
❒ Adjustable wing clamps for added installation support
❒ Conforms to UL514C
❒ ETL listing #4004534
