PB1-SPA

PB1-SPA

1 Duplex 15A Power Plastic Floor Box with Screw Plugs – Aluminum Cover The Lew Electric PB1-SPA is a plastic floor box with aluminum cover.  Inside the box you will find one 15 amp duplex power receptacle with tamper proof plugs. The cover feature




  • Share this product:
  •
  •
  • Product Description

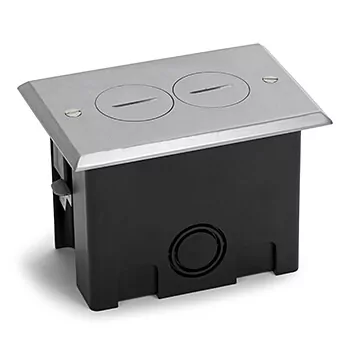

    1 Duplex 15A Power Plastic Floor Box with Screw Plugs – Aluminum Cover

    The Lew Electric PB1-SPA is a plastic floor box with aluminum cover.  Inside the box you will find one 15 amp duplex power receptacle with tamper proof plugs. The cover features 2 screw plugs that provide quick access to your outlets in the box. The box that houses the receptacles is made out of a lightweight polymer construction that offers huge savings over traditional metal floor boxes. The box is easy to install and the adjustable wing clamp adds additional installation support when installed, there are 4 knockouts in the box to run your wire. The floor box is ETL listed for the USA and cETL listed for Canada installations, it also conforms to UL code 514C.

    Replacement cover: RRP-2-SPA
    Replacement plug: 6215-A (Aluminum)

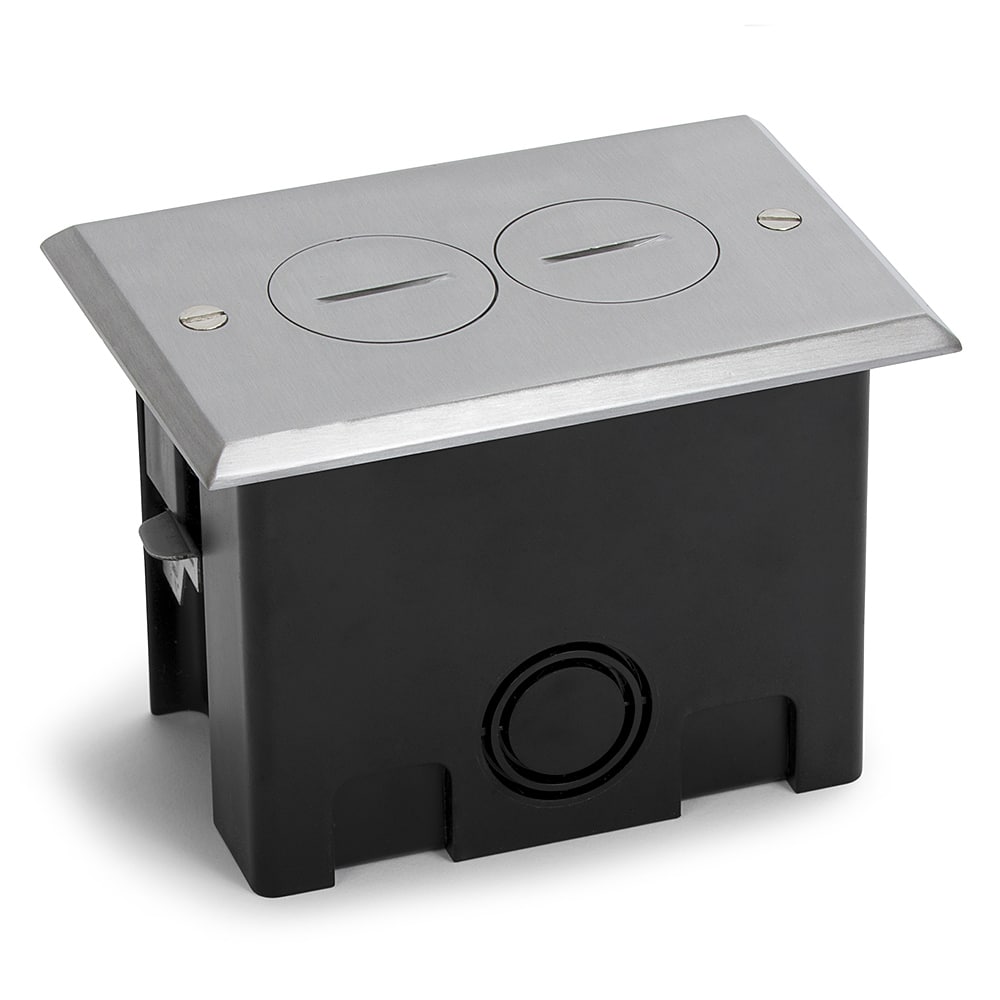

    Additional Images

    Specifications

    The compact floor box is affordable, easy to install, and supplies power in any finished floor.

    Cover: Aluminum, 2 screw plugs
    Outlets:  One duplex 15A
    Size: Single gang
    Tamper resistant plugs
    ETL listed for USA
    cETL listed for Canada
    ETL listing # 4004534
    Conforms to UL514C
    Interior capacity:  22.5 cubic inches
    Cover dimensions:  5 1/8″ x 3 1/2″
    Cutout dimensions:  2 9/16″ x 4 5/16″
    Depth:  3 5/8″
    Box material: Polymer
    For indoor installations only
    Wing screws secure box to sub floor
    Plate and outlet screws provided
    Warranty:  1 year

    DIMENSIONS INTERIOR CAPACITY
    L W H  22.5 Cu. In.
    5 1/8″

    3 1/2″

    3 5/8″



    ❒ Lightweight polymer construction
    ❒ Options include choice of covers (aluminum or brass) and (flip lid or screw plug style)
    ❒ Available in 1, 2, or 3 gang (2 & 3 gang available January 2017)
    ❒ Economical savings over cast iron & stamped metal floor box assemblies
    ❒ Ease of installation
    ❒ Adjustable wing clamps for added installation support

    Intertek_ETL_Listed_C_US❒ Conforms to UL514C
    ❒ ETL listing #4004534

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG: Download
    Install Instructions: Download
