OB-2-CT-SP

OB-2-CT-SP

Outdoor Kitchen Countertop Box with Stainless Push Button Cover; Fully IP66 Rated


Type: Product
Category: Outdoor

  • Share this product:
  •
  •
  • Product Description

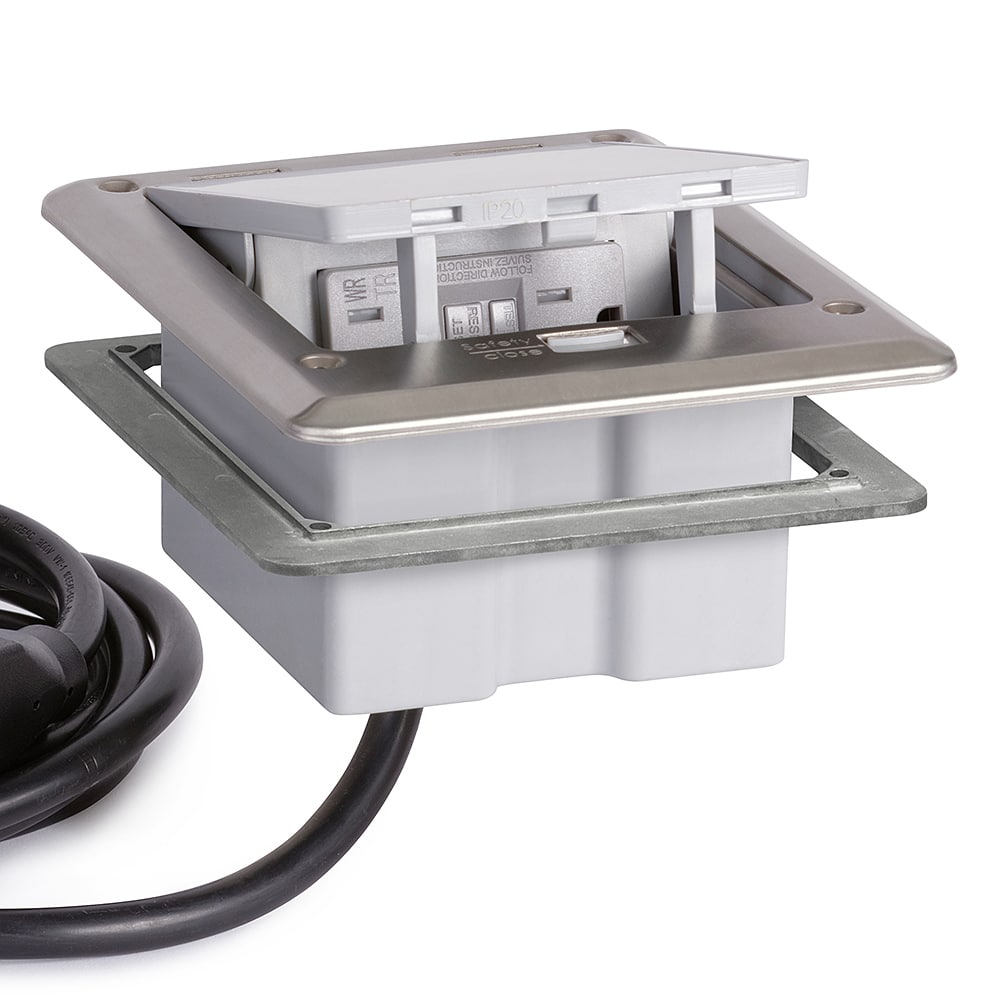

    Outdoor Kitchen Countertop Box with Stainless Push Button Cover; Fully IP66 Rated

    The OB-2-CT-SP is a weatherproof counter top box for covered outdoor kitchens. It is fully IP66 rated when in the closed position. When in use, a 20 amp GFCI receptacle provides protection under a rust resistant stainless steel alloy cover. The cover uses a push button to open and close the lid. Installation is easy, requiring only a single rectangular cut in the counter top. The bottom portion of the box is secured to the underside of the counter top with a metal flange and four stainless screws. In the bottom of the plastic box is a drain hole to eliminate any water that may egress into the box. The OB-2-CT-SP is a fully ETL listed plug and play unit and includes a nine foot 20 AMP plug.




    Additional Images

    Specifications

    Intertek-New-ISO-Registrar

    • Intertek IP66 RATED BOX (when in closed position)
    • UL Listed Receptacle: E229322
    • Tamper Proof opening
    • Includes weather resistant U.L. listed receptacle
    • Patent protected
    • Stainless Steel #316: increases general corrosion resistance, improves resistance to pitting from chloride ion solutions, and provides increased strength at elevated temperatures.
    • COVER DIMENSIONS: 6.8125 L X 5.625 W
    • Includes 9 foot 20amp cord

    Drawings and Resources

    Adobe PDF:
    AutoCAD DWG:
    Install Instructions: Download

    Certifications and Compliances

    • ETL LISTED 4004534
    • Conforms to UL STD 962A AND 943
    • Certified to CSA STD C22.2#308 & 144.1
