332-58

332-58

Shallow, Cast Box, Semi Adjustable The Lew Electric 332-58 is a round cast iron concrete floor box with a brass top. The box is semi adjustable offering 1″ of adjustability to be set to the level of the floor, post installation adjustability is no




  • Share this product:
  •
  •
  • Product Description

    Shallow, Cast Box, Semi Adjustable

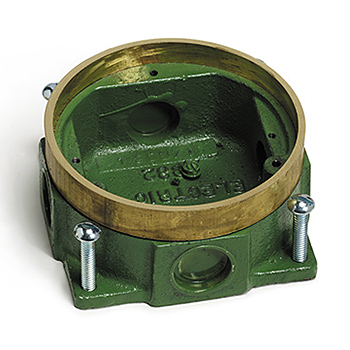

    The Lew Electric 332-58 is a round cast iron concrete floor box with a brass top. The box is semi adjustable offering 1″ of adjustability to be set to the level of the floor, post installation adjustability is not possible. The box is best suited for saw cut or core drilled installations, or pre-pour jobs that have 2.5″ to 3″ of concrete depth.  There is 12 cubic inches of interior space available, the box is only 2″ deep. There are four 3/4″ knockouts on the sides of the box to run your wires to. The box ships with a protective cement cap to keep the box clean and safe during concrete pouring. The box does not ship with a cover, there are several options available that are sold separately. If the box is to be used in a carpeted area a sold separately carpet flange can be ordered, the CF-1100 series carpet flange adds 3/8″ of height to accommodate the carpet and padding. For tile applications no flange is needed, simply pour your concrete to the level of the tile frame less the thickness of the tile. The box is UL listed for the USA, and cUL listed for Canada installations.

    Top: Brass
    Requires cover, sold separately
    Size: Single gang
    For concrete installations
    Offers 1″ of adjustability pre-installation
    12 cubic inches of interior space
    Four 3/4″ knockouts
    UL and cUL listed, # 514A, 489H
    Includes construction cap
    Box dimensions:  4.25″ round
    Depth:  2″ deep
    Can be used with carpet or tile
    Warranty:  1 year

    Additional Images

    Specifications

    Dim A: 4 1/4″ / Dim B: 2″ / Adjust before: 1″ Adjust after: X / Interior Capacity: 12 cu.in. Conduit Openings: Sides (4) bottom (1) 3/4″ Top: Brass Requires cover, sold separately Size: Single gang For concrete installations Offers 1″ of adjustability pre-installation 12 cubic inches of interior space Four 3/4″ knockouts UL and cUL listed, # 514A, 489H Includes construction cap Box dimensions:  4.25″ round Depth:  2″ deep Can be used with carpet or tile Warranty:  1 year

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG: Download
    Install Instructions: Download

    Certifications and Compliances
