PUFP-CT-WT-DS-PB
NEW! Kitchen Countertop Pop Up With 20A (TR) Decora Receptacle – White.
Great for Kitchen counters, kitchen islands, desktops, home office, schools, retail outlets and hotel rooms.
Product Description
NEW! Kitchen Countertop Pop Up With 20A (TR) Decora Receptacle, White
Great for Kitchen counters, kitchen islands, desktops, home office, schools, retail outlets and hotel rooms

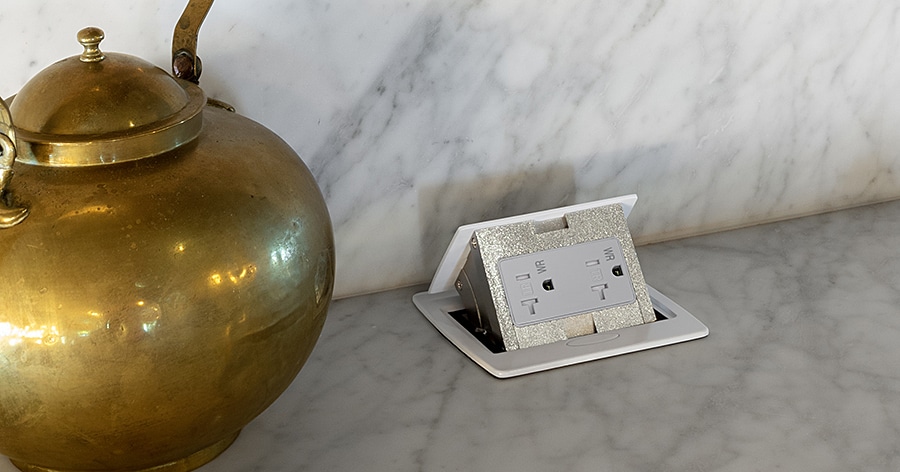

The Lew Electric PUFP-CT-WT-DS-PB countertop pop up box is designed to be hidden in a kitchen countertop or any other indoor surface where it is not possible or convenient to have a wall outlet. When in the closed position the outlet is hidden under the counter. When power is needed, simply press the spring-loaded button and the top raises up. The outlet is a 20 Amp rated Decora style, and has tamper resistant (TR) plugs.
Click here: Color Chip Sample Book for PUR and PUFP-CT Pop Up products
Additional Images
Specifications
- 20A DECORA
- White metal top
- IP44 Splash proof rated
- Tamper resistant outlets
- Hardwired power
- Waterproof gasket under bezel *Consult with electrician and inspector before ordering

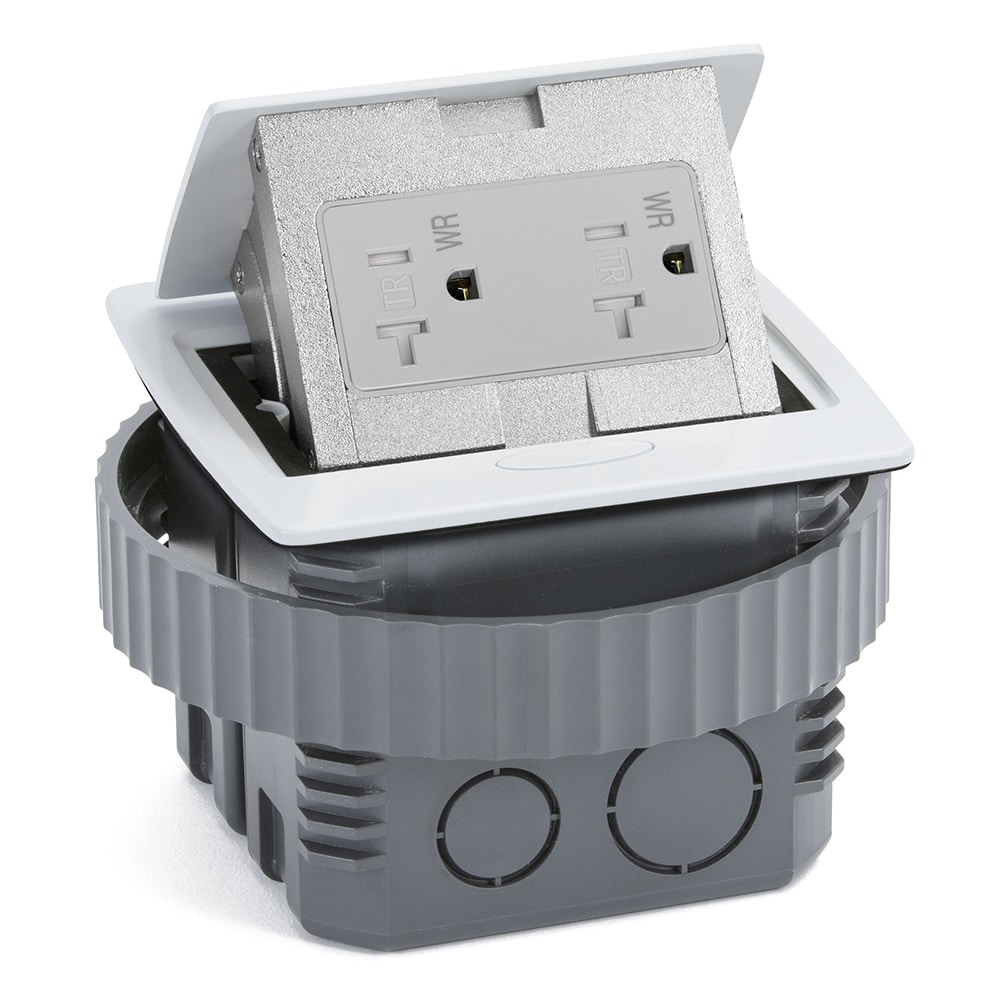

- Includes PUFP-CT-PB PLASTIC BOX shown in picture
- Bezel dimensions: 4 11/16″ X 4 11/16″
- Cutout dimensions: 4 1/8″ x 4 1/8″, ***It is recommended to have the product in hand before cutting***
- Space Needed Below Counter: 3″ minimum
- Counter thickness: 1/2″ to 2″
- PUFP-CT-PB BOX dimensions: 4″W x 4″L x 3 1/8″H
Conforms to UL standard 498;
Certified to CSA STD.C22.2.; No. 42-10;
LEW ELECTRIC FITTINGS CO
Certifications and Compliances
PUFP Series Safety and Certifications:
- ETL Certification Sheet – PDF
- ETL listed for USA installations, # 4004534
- cETL listed for Canada installation, # 4004534
- CSA approved for Canada, #C22.2
- Conforms to UL standard 498
- Certified to CSA STD.C22.2.; No. 42-10
- UL listed receptacle: E309821
- Water protection: IP44 Spill proof rated top
- Tamper resistant (TR) plugs
- Gasket under bezel to keep water out
- RoHS and Proposition 65 compliant
- 2-year warranty
