812-DA (box only)

812-DA (box only)

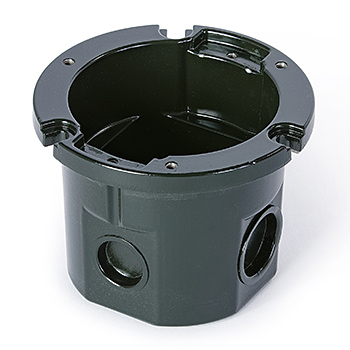

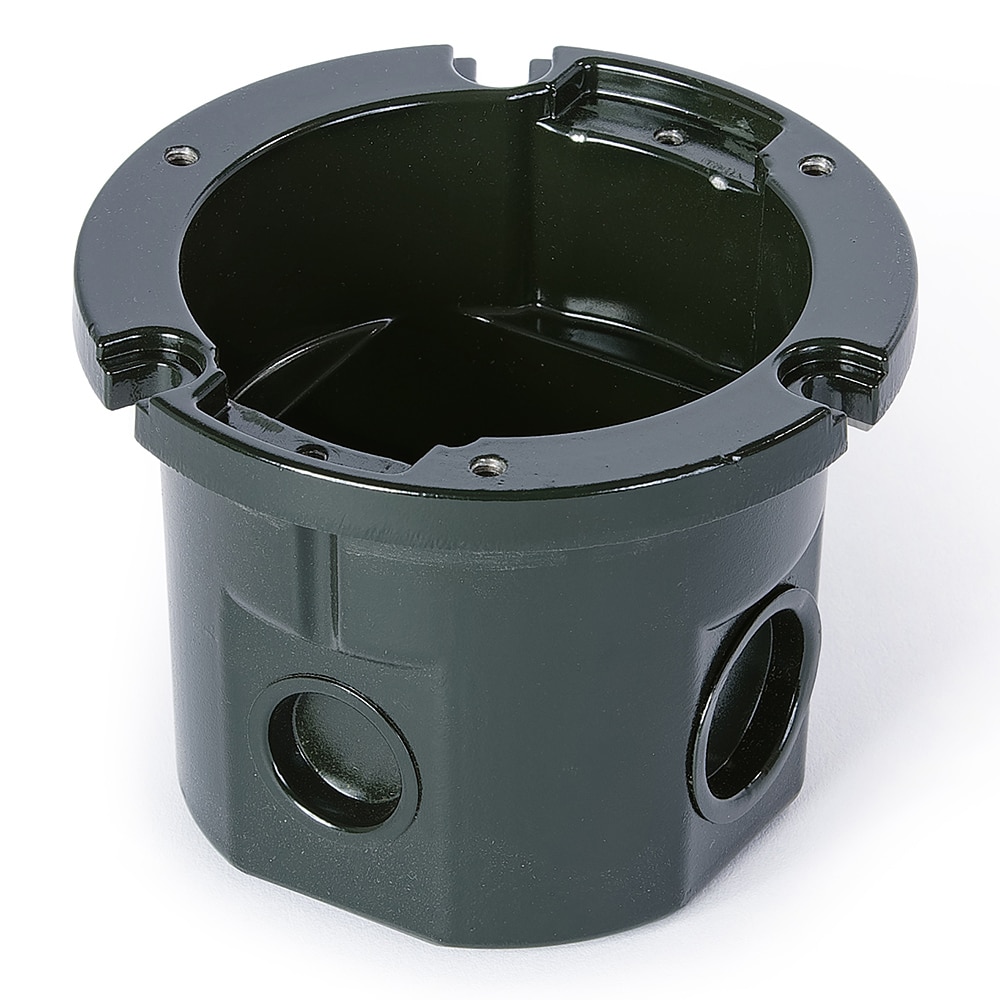

Flush Mounted, Die-Cast Aluminum, Round Floor Box – BOX ONLY.



Type: Product
Category: 812-DA Boxes, Residential

  • Share this product:
  •
  •
  • Product Description

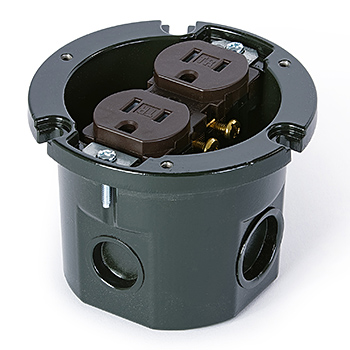

    Lew Electric 812-DA Round Floor Box – ETL Listed Die-Cast Aluminum with 15A Tamper-Resistant Duplex Outlet

    The Lew Electric 812-DA round floor box is a durable, ETL-listed die-cast aluminum electrical box, ideal for flush mount installation in wood floors. It can also be used in concrete applications.

    This floor box features a 15-amp tamper-resistant duplex receptacle and supports both 1/2″ and 3/4″ threaded conduit connections for flexible wiring options.

    While it is designed for wood flooring, it can also be installed in tile or carpeted floors with the optional floor box flange and 4-inch cover (sold separately). Explore compatible covers and flanges via the link below to complete your installation.

    Cover and Carpet/Tile Flange Options

    Additional Images

    Specifications

    • Plate: None
    • Outlet: 15A, TR duplex receptacle
    • Die cast aluminum round box with 1/2″ and 3/4″ threaded conduit openings
    • Hole size: 3.5″ round
    • Depth: 3.25″ deep
    • Capacity: 15.5 cubic inches
    • Warranty: 1 year

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG: Download
    Install Instructions: Download

    Certifications and Compliances

    Intertek_ETL_Listed_C_US

    • ETL file #4004534
    • Conforms to UL 514A
    • Conforms CSA C22.2 #18.1
    • UL listed receptacle #E309821
