NEW! Kramer TBUS-3 Conference Table Box

A compact, stylish rectangular enclosure cable management system, fully customizable and offered in a striking black finish.



  • Share this product:
  •
  •
  • Product Description

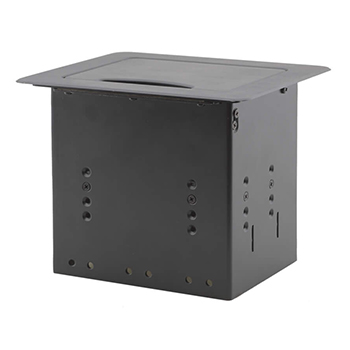

    Kramer TBUS-3 Conference Table Box

    The Kramer TBUS-3 modular enclosure system offers style, form, and function in a compact rectangular box that is great for conference tables, classrooms, training facilities and lab tables. The TBUS-3 cover is offered in a striking and durable sand blasted anodized aluminum Black finish. The cover has a low profile on the tabletop and a quiet tilt-up lid, providing easy access to power and data/comm options inside the enclosure. When the cover is closed, a convenient notch allows cords to still be plugged in.

    Each color offers eight different cable management combinations to meet all application needs. The enclosure includes two single power outlets and a variety of HDMI, USB or Cat 6 options that fit within the framework of the inner plates. The power cable is a single six-foot cord and the data/com connectors have female pigtails on the backside of the enclosure for easy connection to cables coming up from the floor.

    Installation is a quick and simple, requiring only one rectangular cut in the tabletop. No screws or glue is necessary to complete installation. The enclosure measures 5.4” wide by 4.1” deep by 4.28” high. The cover is 6.9” wide by 5.5” deep.

    Available color options:

    Black

    Black Cover Configuration options:

    Buy HereTBUS-3-B1
    • 2 Power, 2 Grommets

    Buy HereTBUS-3-B2
    • 2 Power, 1 Retracting HDMI, 1 Retracting Cat6

    Buy HereTBUS-3-B3
    • 2 Power, 2 Retracting HDMI

    Buy HereTBUS-3-B4
    • 2 Power, 1 Retracting HDMI, 1 Cat6

    Buy HereTBUS-3-B5
    • 2 Power, 1 HDMI, 2 Cat6

    Buy HereTBUS-3-B6
    • 2 Power, 2 HDMI

    Buy HereTBUS-3-B7
    • 2 Power, 1 HDMI, 1 USB

    Buy HereTBUS-3US-22
    • 2 Power, 1 Grommet, 1 Blank Plate

    Additional Images

    Specifications

    • Color: Sand blasted black anodized aluminum
    • Female connections on the backside of the enclosure
    • Bezel size: 6.9″ x 5.5″
    • Depth: 4.28″
    • Cutout size: 6.23″ x 4.85″
    • Works in tables up to 3″ thick
    • Quiet, tilt-up lid with cable pass through opening
    • Connections inside are height adjustable
    • One 6′ power cord with grounded plug
    • All mounting hardware included
    • Configurable for future changes
    • Minor assembly required
    • 7 year warranty

    TBUS-3 Specifications PDF

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG:
    Install Instructions: Download

    Certifications and Compliances

    UL Certification (PDF)

    cULus listed  cULus listed
