TBUS-201
Product Description
Kramer TBUS-201 Pop-Up Conference Table Box

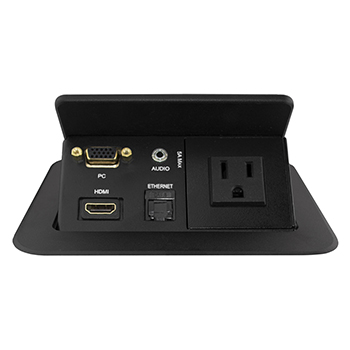

The Kramer TBUS-201 modular enclosure system offers style, form, and function in a compact rectangular box that is great for conference tables, classrooms, training facilities and lab tables. The TBUS-201 cover is offered in two striking and durable sand blasted anodized aluminum colors, Black and Silver. The cover has a low profile on the tabletop and pops up when depressed, revealing the power and data/comm connections inside.
Each color offers one combination of power and data/comm connections. The enclosure includes a single power outlet, which can be US specific or universal. The data/comm side offers a PC, HDMI, Ethernet and audio connections. The power cable is a single six-foot cord and the data/com connectors have female pigtails on the backside of the enclosure for easy connection to cables coming up from the floor.
Installation is a quick and simple, requiring only one rectangular cut in the tabletop. No screws or glue is necessary to complete installation. The enclosure measures 5.98” wide by 5.48” deep by 6.84” high. The cover is 5.7” wide by 5.2” deep.
Available color options:
Black or Silver
Configuration options:
TBUS-201B
• 1 Power, 1 HDMI, 1 VGA, 1 Audio, 1 Cat6
TBUS-201S
• 1 Power, 1 HDMI, 1 VGA, 1 Audio, 1 Cat6
Additional Images
Specifications
- Color: Black or Silver, sand blasted anodized aluminum
- 1 Power, 1 VGA, 1 HDMI, 1 Audio, 1 Cat6
- Female plugs on underside
- 6-foot power cable, grounded plug
- UL listed for USA
- Bezel size: 5.98″ x 5.48″
- Cutout size: 5.2″ x 4.7″
- Depth: 6.84″
- Works in table thickness up to 3″
- Weight: 2.65lbs
- Includes all mounting hardware and template
- 7 year warranty
cULus listed
