TBUS-1-KWC
Product Description

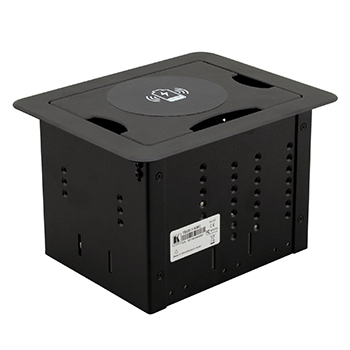

Kramer TBUS-1-KWC Qi Wireless Charge Conference Table Box

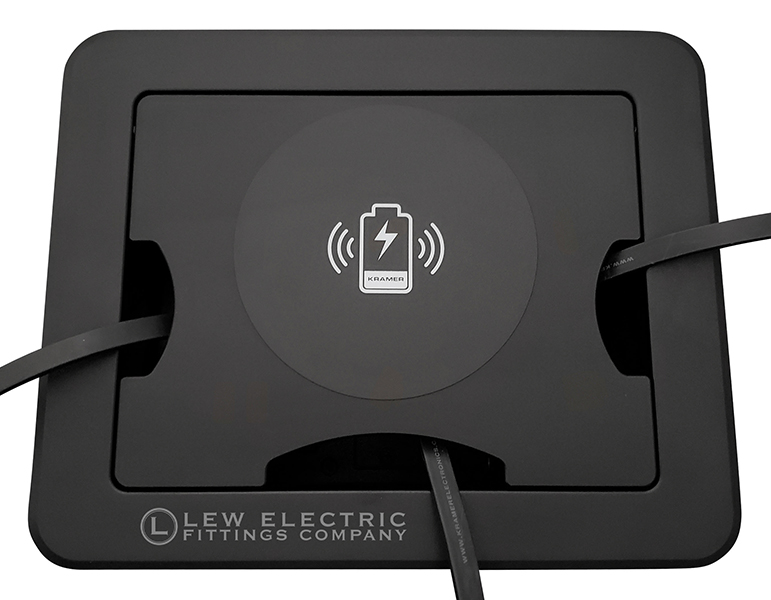

The Kramer TBUS-1-KWC modular enclosure system offers style, form, and function in a mid-size rectangular box that is great for conference tables, classrooms, training facilities and lab tables. The Qi wireless charging TBUS-1-KWC cover is offered in a striking and durable sand blasted anodized aluminum Black or Silver finish. The cover has a low profile on the tabletop and a quiet tilt-up lid, providing easy access to power and data/comm options inside the enclosure. When the cover is closed, three convenient notches allow cords to still be plugged in.
Each color offers eight different cable management combinations to meet all application needs. Choose any combination of up to four power outlets, HDMI, USB or Cat 6 that fits within the framework of the inner plates. Each power cable is a single six-foot cord and the data/com connectors have female pigtails on the backside of the enclosure for easy connection to cables coming up from the floor.

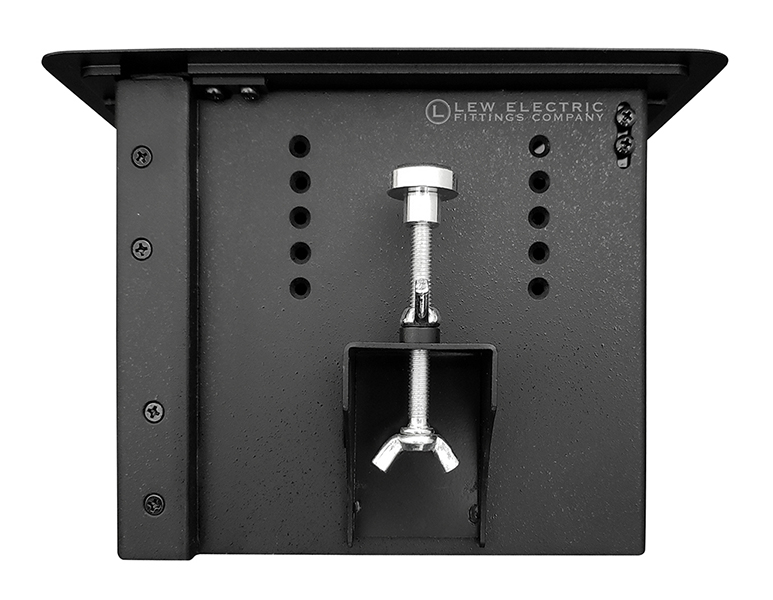

Installation is a quick and simple, requiring only one rectangular cut in the tabletop. No screws or glue is necessary to complete installation. The enclosure measures 7.52” wide by 5.98” deep by 5.2” high. The cover is 8.07” wide by 6.69” deep.
Available color options:
Black or Silver
Configuration options:

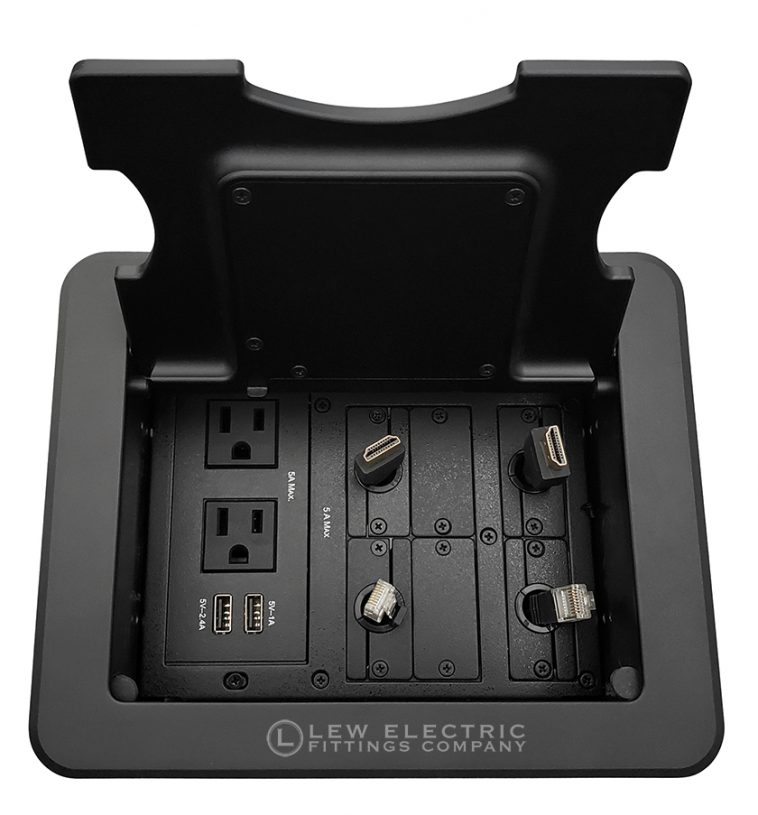

Black cover configurations

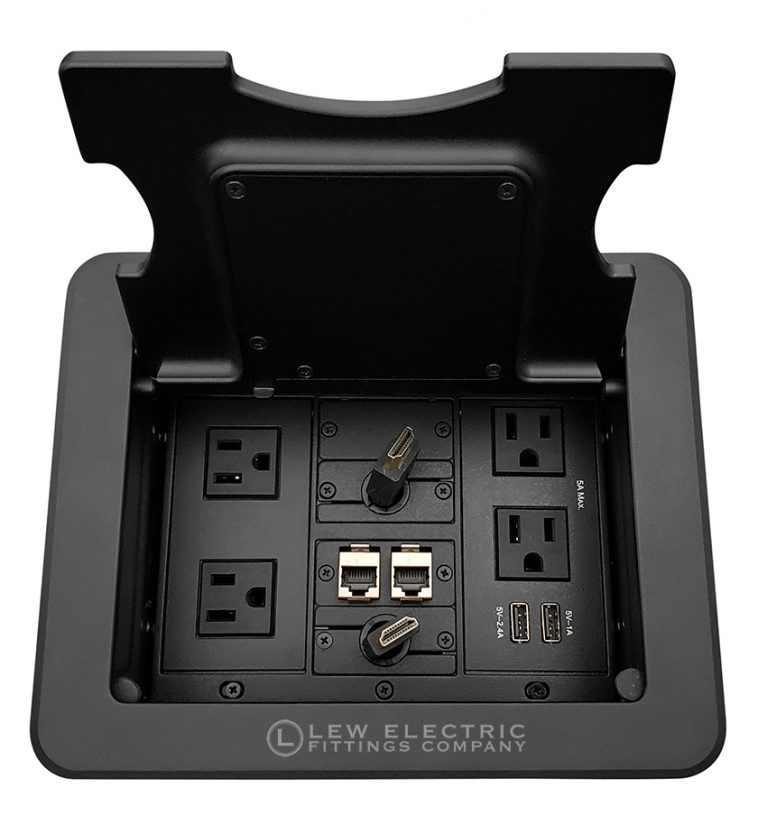

• Qi Wireless Charging Lid, 4 Power, 2 Charging USB,
2 HDMI, 2 Cat6

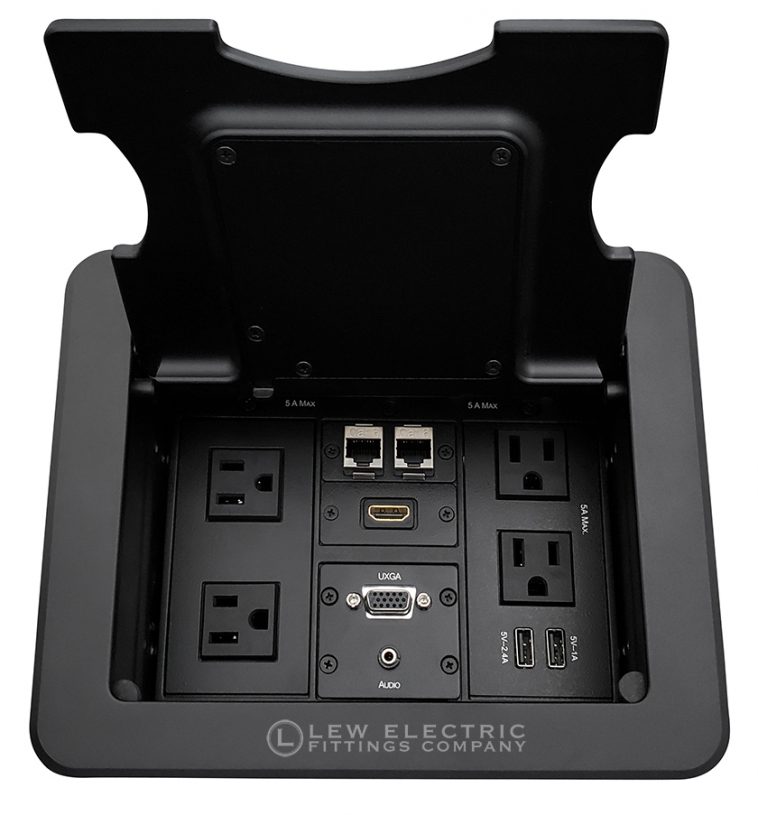

• Qi Wireless Charging Lid, 4 Power, 2 Charging USB,
1 HDMI, 1 VGA, 2 Cat6

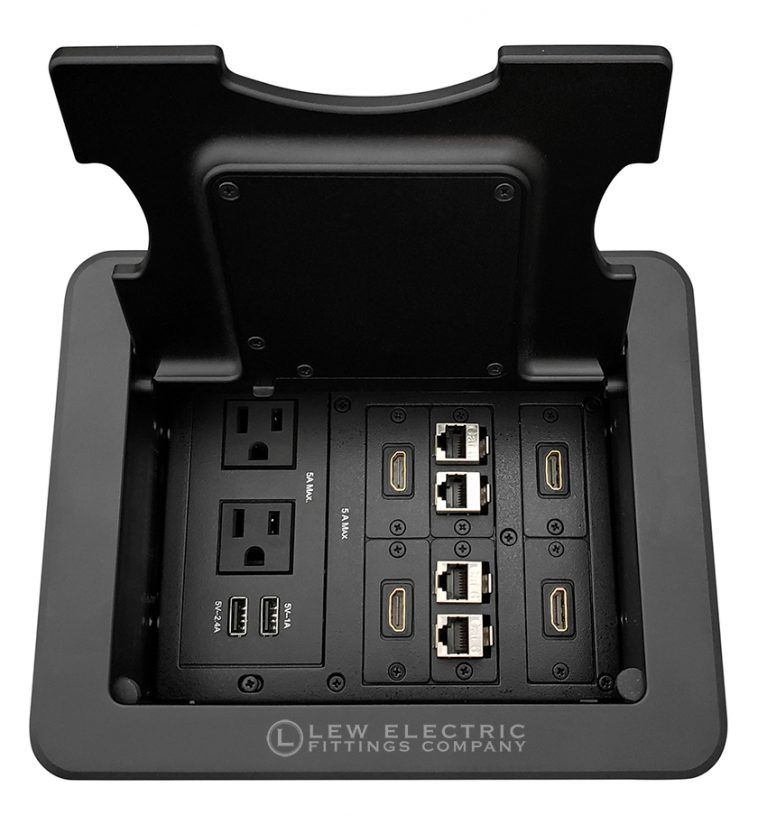

• Qi Wireless Charging Lid, 2 Power, 2 Charging USB,
4 HDMI, 4 Cat6

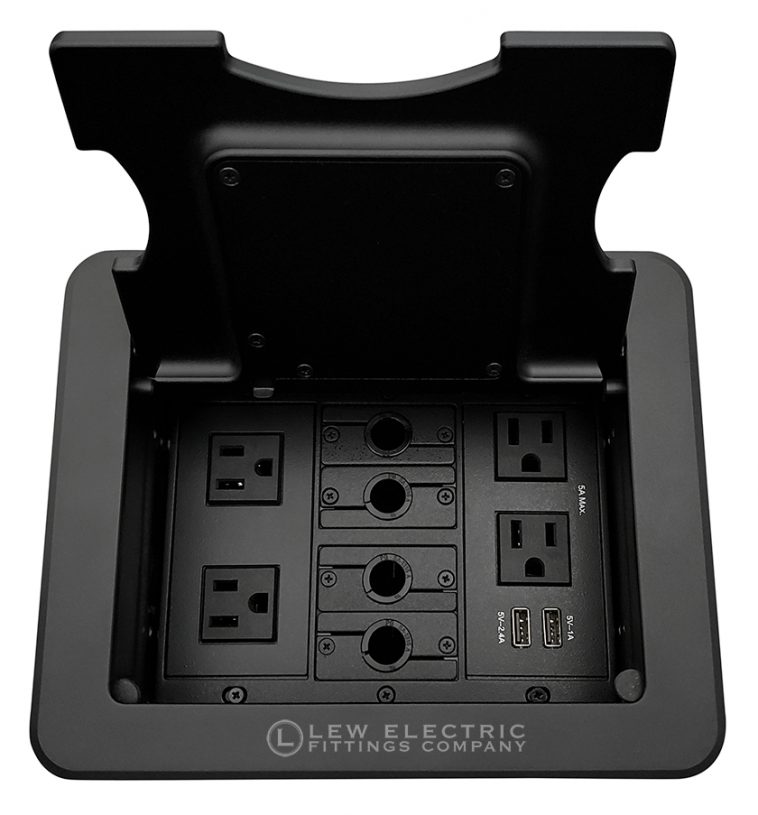

• Qi Wireless Charging Lid, 4 Power, 2 Charging USB, 4 Grommet Holes
• Qi Wireless Charging Lid, 4 Power, 2 Charging USB,
1 Retractable HDMI, 1 Retractable Cat6

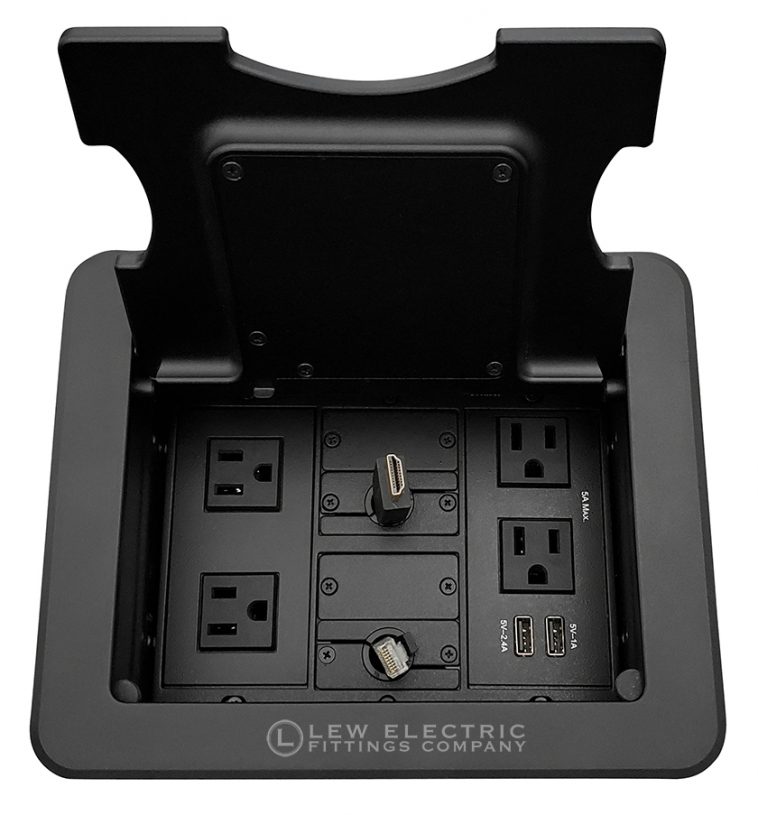

• Qi Wireless Charging Lid, 4 Power, 2 Charging USB,
2 Retractable HDMI, 2 Cat6
• Qi Wireless Charging Lid, 2 Power, 2 Charging USB,
2 Retractable HDMI, 2 Retractable Cat6

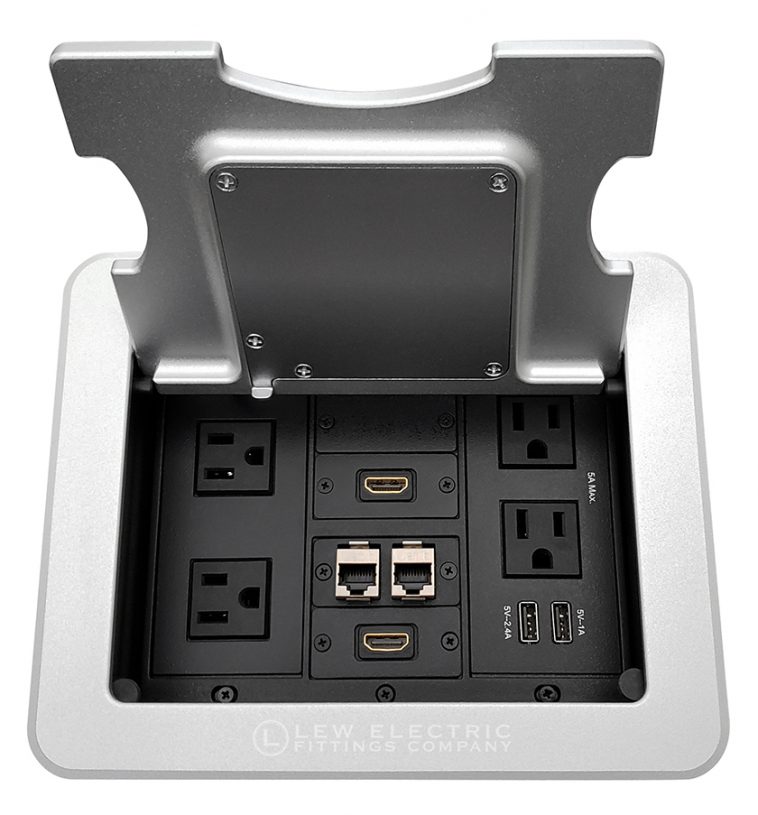

Silver cover configurations

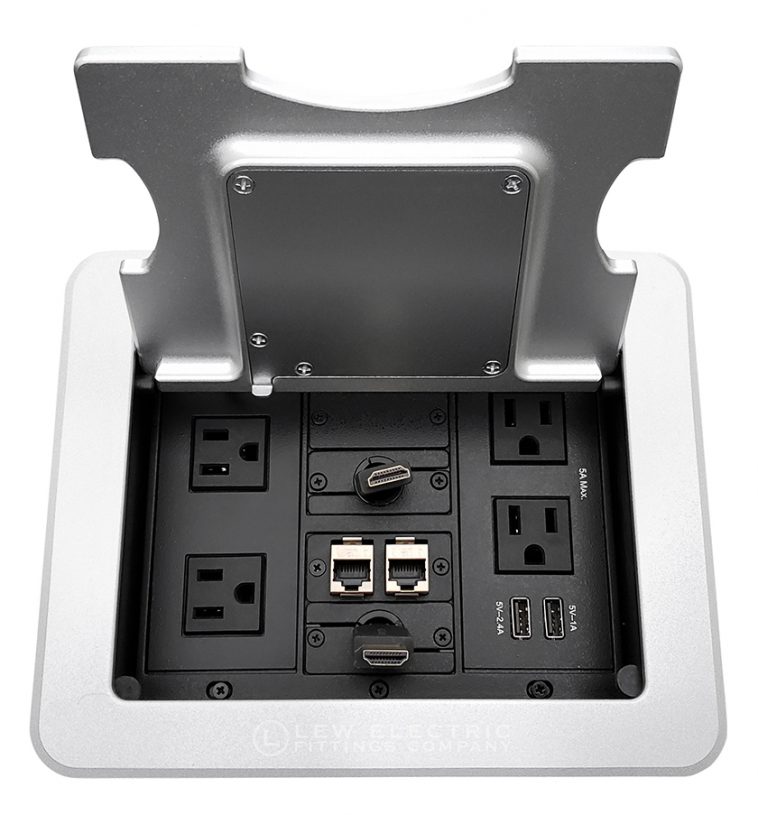

• Qi Wireless Charging Lid, 4 Power, 2 Charging USB,
2 HDMI, 2 Cat6

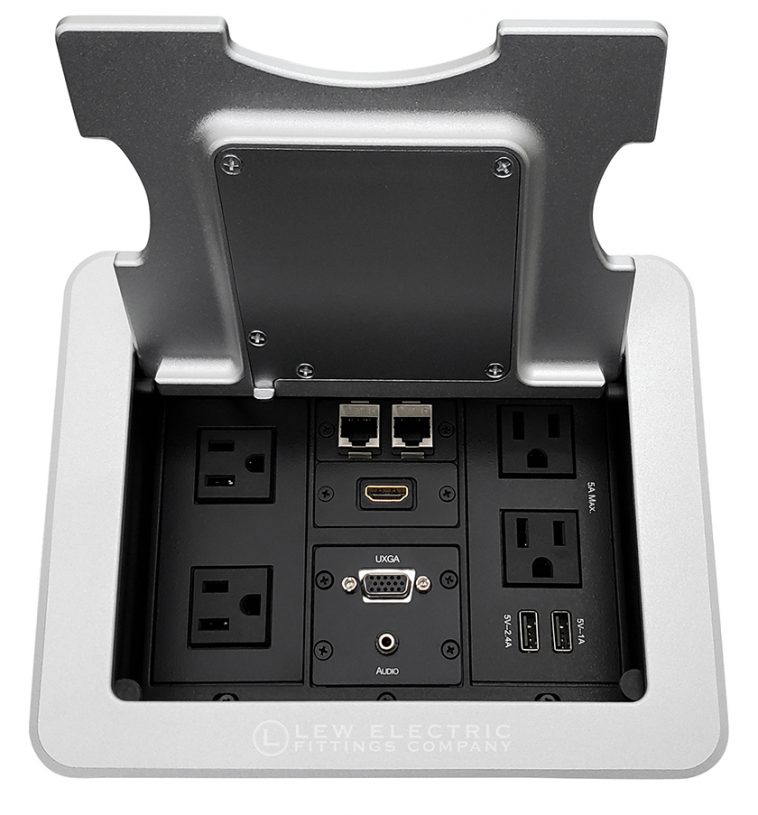

• Qi Wireless Charging Lid, 4 Power, 2 Charging USB,
1 HDMI, 1 VGA, 2 Cat6

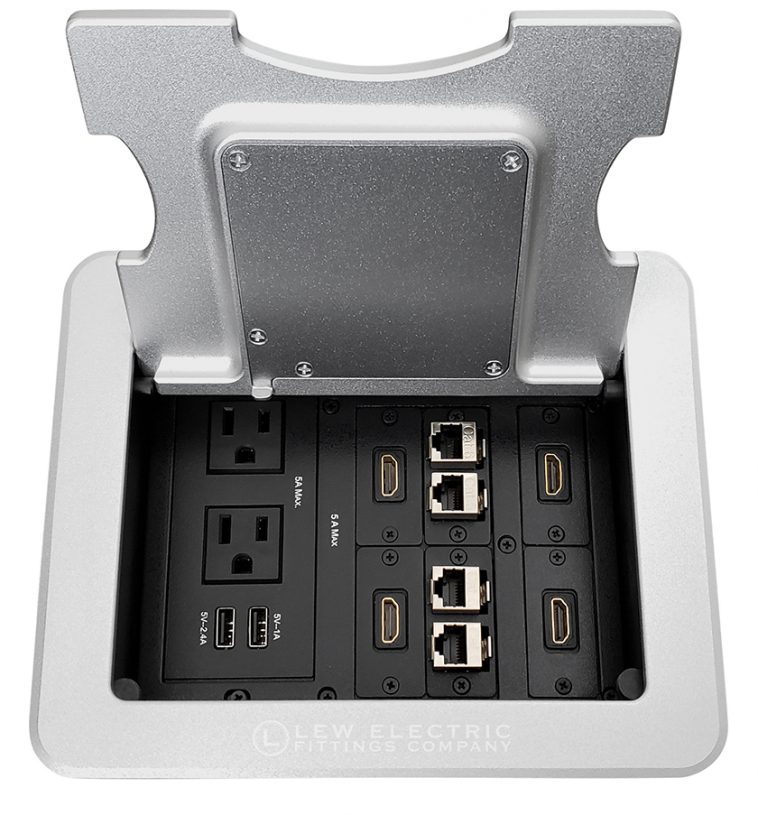

• Qi Wireless Charging Lid, 2 Power, 2 Charging USB,
4 HDMI, 4 Cat6

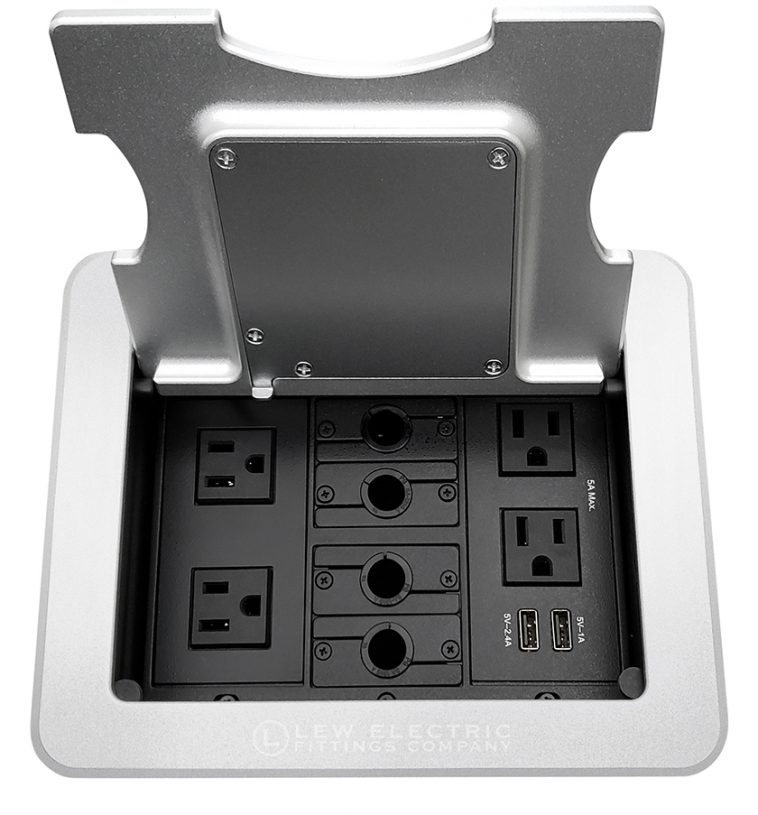

• Qi Wireless Charging Lid, 4 Power, 2 Charging USB, 4 Grommet Holes

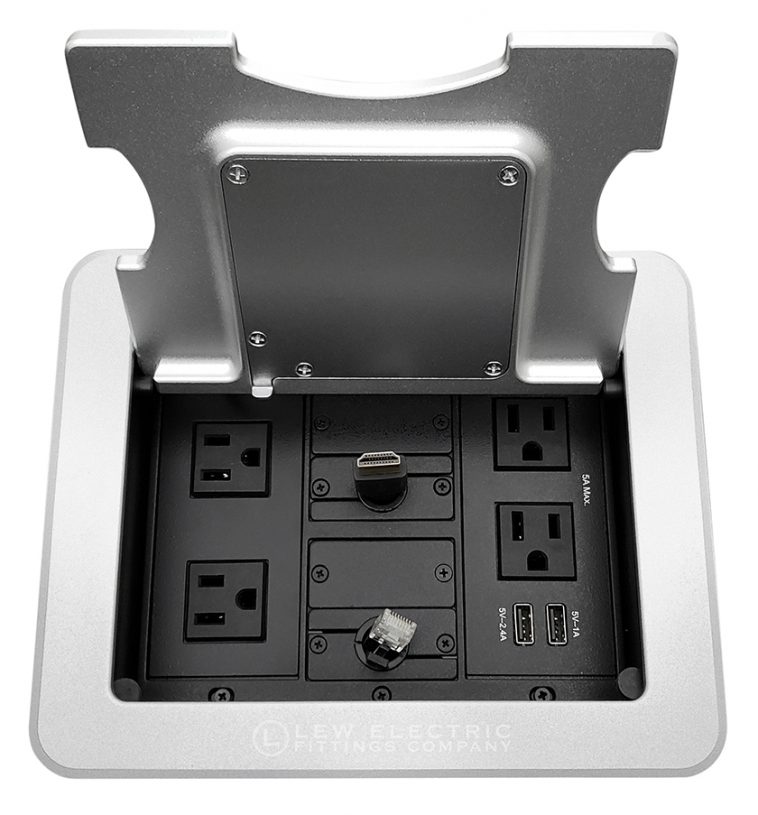

• Qi Wireless Charging Lid, 4 Power, 2 Charging USB,
1 Retractable HDMI, 1 Retractable Cat6

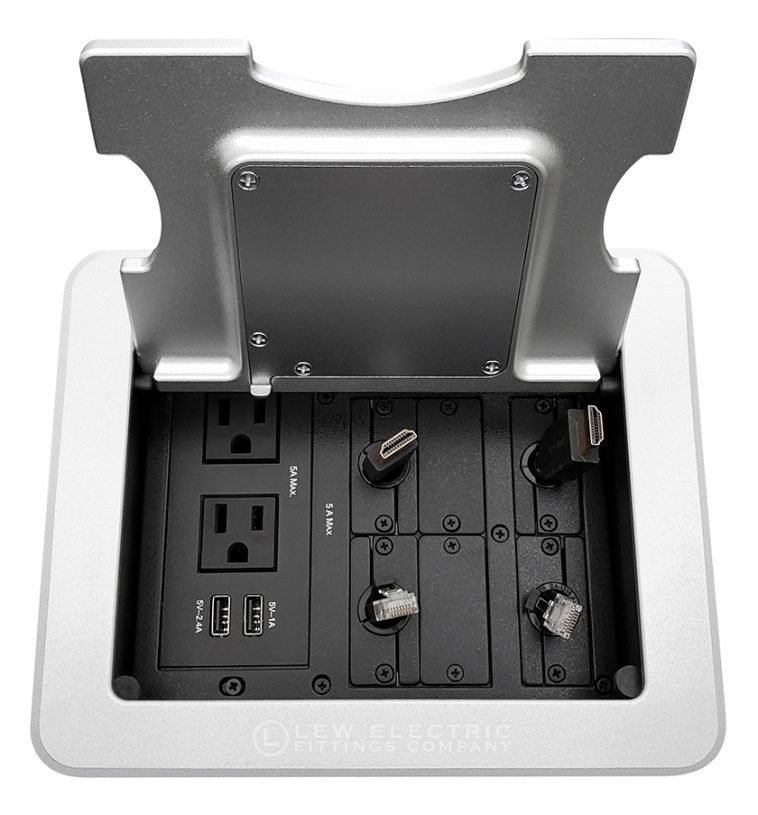

• Qi Wireless Charging Lid, 4 Power, 2 Charging USB,
2 Retractable HDMI, 2 Cat6
• Qi Wireless Charging Lid, 2 Power, 2 Charging USB,
2 Retractable HDMI, 2 Retractable Cat6
Specifications
- Color: Sand blasted black or silver anodized aluminum

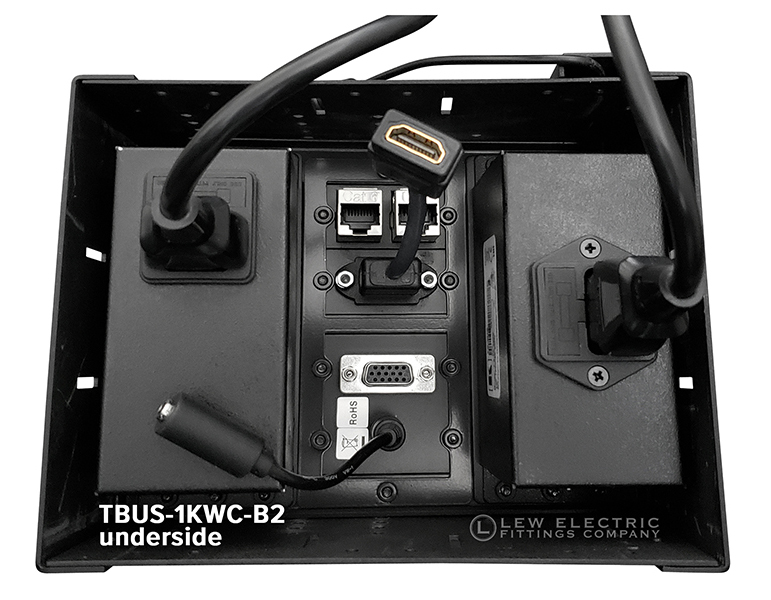

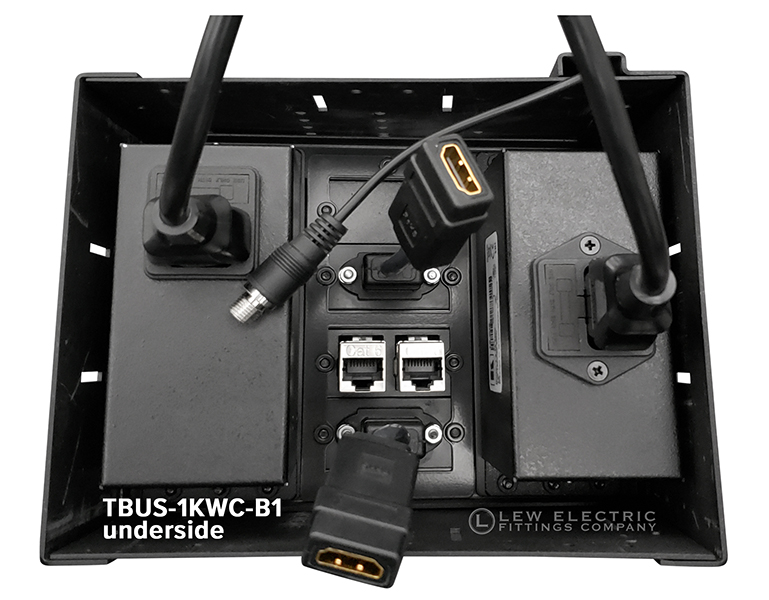

- Female connections on the backside of the enclosure

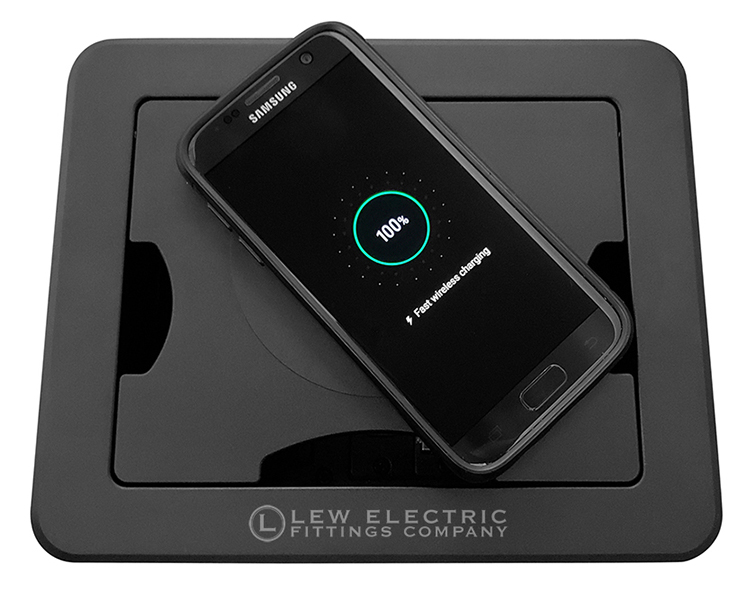

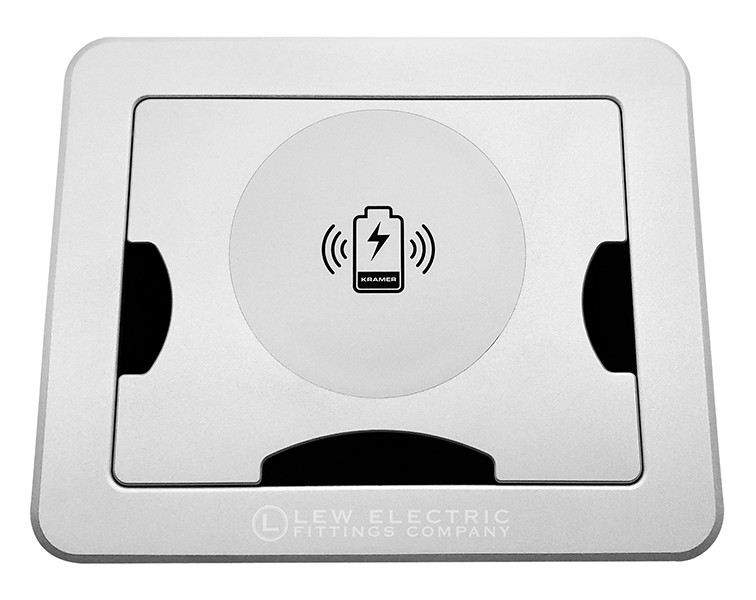

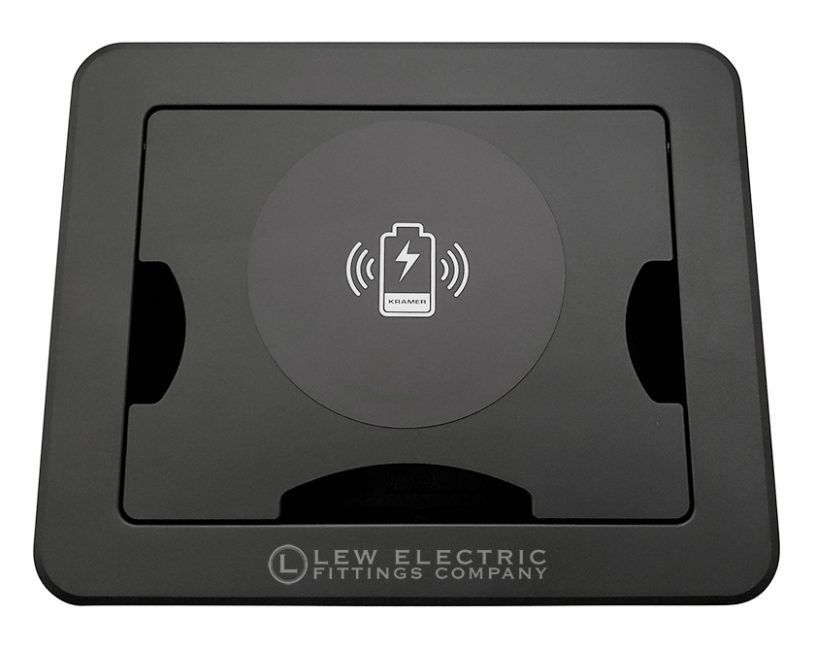

- Qi Wireless charging spot in lid
- Bezel size: 8.07″ x 6.69″
- Depth: 5.2″
- Cutout size: 7.58″ x 6.08″
- Works in tables up to 3″ thick
- Quiet, tilt-up lid with 3 cable pass through openings
- Connections inside are height adjustable
- Two 6′ power cords with grounded plug
- All mounting hardware included
- Configurable for future changes
- 7 year warranty
