Category: PUR Series, PUR15 USB, Residential
Spill Proof Kitchen Counter Pop Up With two 15A (TR) Duplex Power/2USB (AC) receptacles, Stainless
Great for Kitchen counters, kitchen islands, desktops, home office, schools, retail outlets and hotel rooms.
Key Features: Spill Proof. Eliminates dangerous cords hanging from kitchen counters. Solves the need to have power where a wall outlet is not possible in kitchen. Includes two 125V-20A (TR) Duplex Power/2USB (AC) Receptacles. USB Ports are 1 Type A (Class 2 QC3.0) AND 1 Type C (Class 2 PD2.0+QC3.0). Includes dust covers for USB ports.

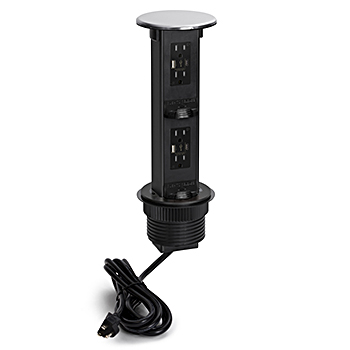

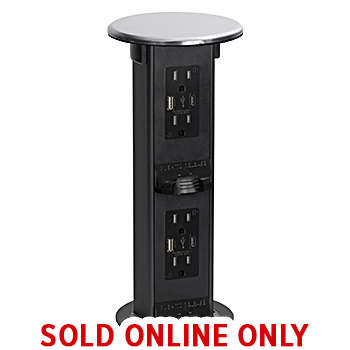

The Lew Electric PUR15-S-AC-2P countertop pop up power outlet is designed to be hidden in a kitchen countertop or any other indoor surface where it is not possible or convenient to have a wall outlet. When in the closed position the outlet is hidden under the counter. When power is needed, simply press down on the spring-loaded top and the cylindrical unit raises up. The unique design of the PUR15-BK-AC-2P allows one or both receptacles to be exposed. Each duplex outlet is 15 Amp rated, has two USB ports (1 Type A & 1 Type C) and has tamper resistant (TR) plugs.
The PUR is spill proof when in the closed position. The stainless colored metal top holds up to heavy traffic and beautifully accents a wide color range of stone countertops. Installation is a breeze and only requires a single round hole to be cut into the countertop. No other tools are required.
Installation Guide – PUR Countertop Box:
- Color: Stainless metal top
- Black outlet: 125V-20A (TR) Duplex Power/2USB Receptacle.
- USB Ports: 1 Type A (Class 2 QC3.0) AND 1 Type C (Class 2 PD2.0+QC3.0)
- Tamper resistant (TR) plugs
- ETL listed for USA installations, # 4004534
- cETL listed for Canada installation, # 4004534
- CSA approved for Canada, #C22.2
- Conforms to UL standard 962A
- Certified to CSA STD.C22.2.; No. 308
- UL listed receptacle, # E491706
- Water protection: IP 54 Spill proof rated
- Waterproof gasket under bezel *Consult with electrician and inspector before ordering
- Cover Diameter: 4 7/8″ round
- Cutout size: 3 3/4″ round, ***It is recommended to have the product in hand before cutting***
- Pop up height: 11″
- Under counter depth when closed: 14″
- Works in counter thickness: 3/8″ – 2 3/16″
- 9 foot corded 3 prong flat plug
- Install using a licensed electrician
- Designed for indoor installations only
- Includes black trim ring
- 1 year warranty
