MW-332-58
Core Drill Cast Box The Lew Electric MW-332-58 is a round cast iron concrete floor box with a brass top. The box is perfect for core drill installations since it is only 2″ deep, there are 12 cubic inches of interior space available. There are four 3/4
Category: 32 Series, 32 Series Boxes, Cast Iron Boxes, Cast Iron Boxes Round, Commercial, Round, Semi Adjustable
Product Description
Core Drill Cast Box

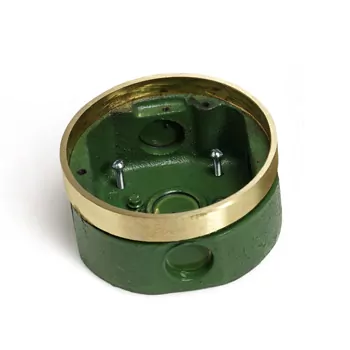

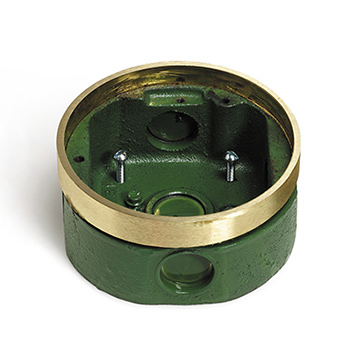

The Lew Electric MW-332-58 is a round cast iron concrete floor box with a brass top. The box is perfect for core drill installations since it is only 2″ deep, there are 12 cubic inches of interior space available. There are four 3/4″ knockouts on the sides of the box to run your wires to. The box ships with a protective cement cap to keep the box clean and safe during concrete pouring. The box does not ship with a cover, there are several options available that are sold separately. If the box is to be used in a carpeted area a sold separately carpet flange can be ordered, the CF-1100 series carpet flange adds 3/8″ of height to accommodate the carpet and padding. For tile applications no flange is needed, simply pour your concrete to the level of the tile frame less the thickness of the tile. The box is UL listed for the USA, and cUL listed for Canada installations.
Top: Brass
Requires cover, sold separately
Size: Single gang
For concrete installations
12 cubic inches of interior space
Four 3/4″ knockouts
UL and cUL listed, # 514A, 489H
Includes construction cap
Box dimensions: 4.25″ round
Depth: 2″ deep
Can be used with carpet or tile
Warranty: 1 year
