SWB-6

Lew Electric SWB-6

SWB-6

Recessed Floor Plate with Box, Three 15A-TR-Duplex Receptacles, 6 Screw Plugs – Brass.


Type: Product
Category: SWB Boxes

  • Share this product:
  •
  •
  • Product Description

    Recessed Floor Plate with Box, Three 15A-TR-Duplex Receptacles, 6 Screw Plugs, Brass

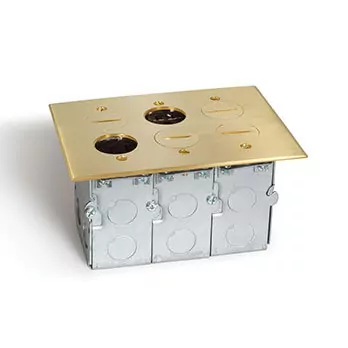

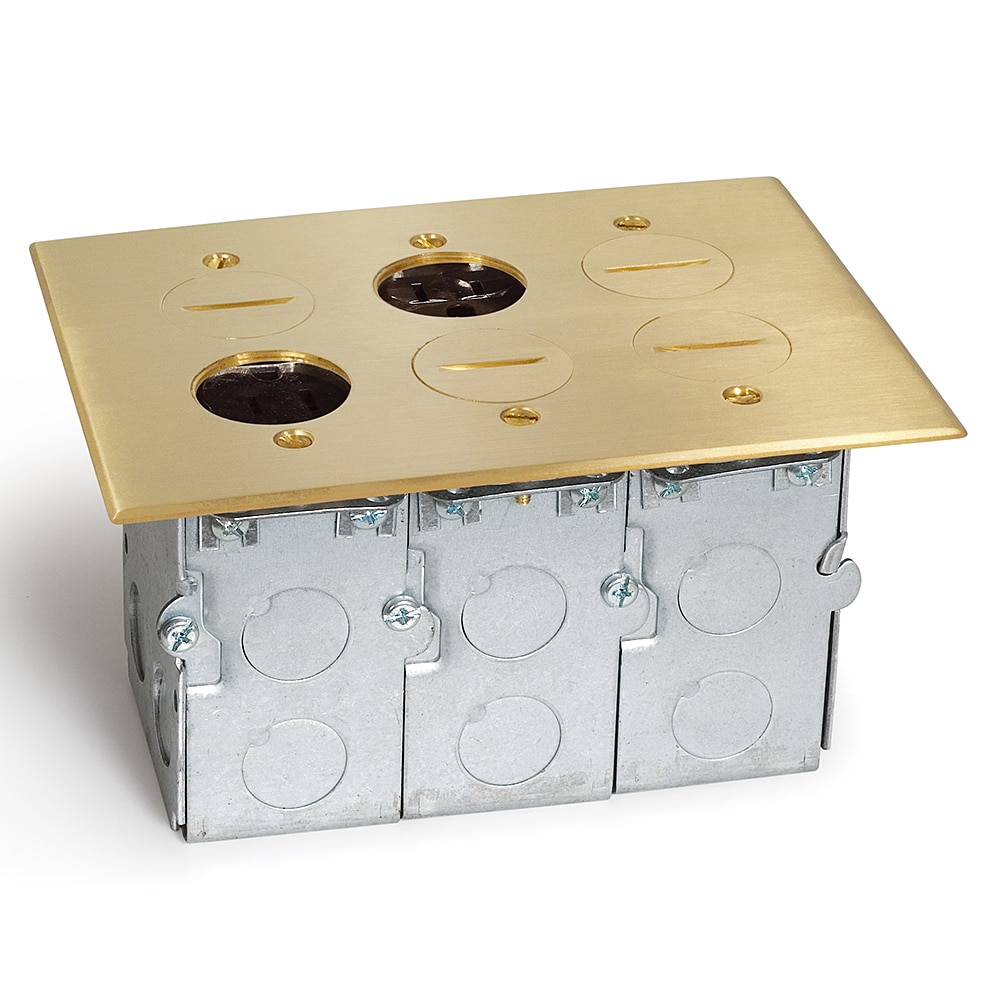

    The Lew Electric SWB-6 is a recessed floor plate with brass screw plug cover, three single gang stamped steel boxes and adjusting sleeves. Inside the floor box are three UL listed 15A-TR-Duplex Receptacles. The adjusting sleeves are adjustable up to 3/4″ to accommodate any floor. The box features six water tight close up screw plugs and a durable 1/16″ neoprene rubber gasket that goes between the receptacle and plate. The stamped steel box is UL listed.

    Replacement Cover: RRP-6-BP
    Replacement Plug: 6212 (Brass)

    Additional Images

    Specifications

    • Plate: 1/8″ Brass
    • Outlet: Three 15A, TR duplex receptacles and One RRP-2-PQ quad port device
    • 6 watertight screw plugs
    • Adjustable up to 3/4″
    • Includes 1/16″ neoprene rubber gasket
    • Cover size: 5″ x 6 7/8″
    • Back box size: 6″L x 3″W x 3.5″H
    • Cutout size: Can’t exceed 6 1/8″ x 3 1/2″
    • Capacity: 54 cubic inches
    • Warranty: 1 year

    UL & NEMA RECOGNITION

    • Box UL #E345966
    • Outlet UL # E309821
    • Meets NEMA WD1-1983 heavy duty requirement for display receptacle

    FEATURES & BENEFITS

    • Versatile power or communications applications
    • Water tight assembly
    • 1/2″ Conduit knockouts
    • Adjustable up to 3/4″ to accommodate any floor

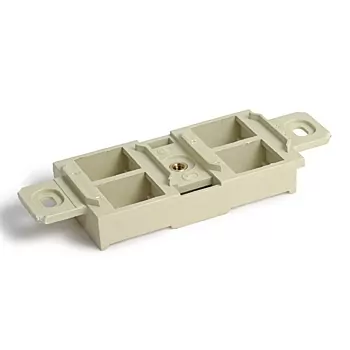

    • Includes one RRP-2-PQ quad port for Comm./Data

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG: Download
    Install Instructions:

    Certifications and Compliances
