SH-1101-SMB

SH-1101-SMB

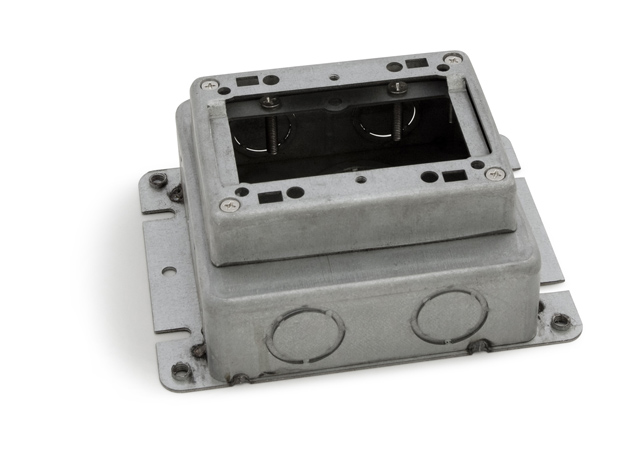

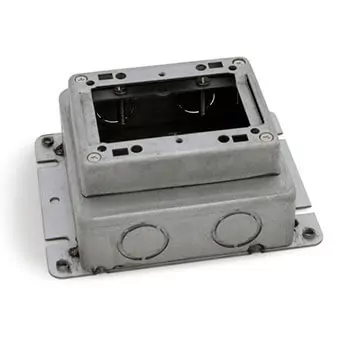

One gang, shallow stamped steel floor box The Lew Electric SH-1101-SMB is a stamped steel concrete floor box with a one gang opening. The box is not adjustable, no adjustments can be made after the concrete is poured. The box is a shallow style box, pe




  • Share this product:
  •
  •
  • Product Description

    One gang, shallow stamped steel floor box

    The Lew Electric SH-1101-SMB is a stamped steel concrete floor box with a one gang opening. The box is not adjustable, no adjustments can be made after the concrete is poured. The box is a shallow style box, perfect for concrete 2.5″ to 3″ in depth. The box offers 31.5 cubic inches of interior space. There are several 3/4″, 1″, and 1.25″ knockouts on the box to run your wires to. The box ships with a protective cement cap to keep the box clean and safe during concrete pouring. The box does not ship with a cover, there are several options available that are sold separately. If the box is to be used in a carpeted area a sold separately carpet flange can be ordered, the CF-1100 series carpet flange adds 3/8″ of height to accommodate the carpet and padding. For tile or carpet applications using a flange, make sure that the floor box is 3/8″ lower than the concrete pour, if you are not using a flange simply pour your concrete to the top of the tile frame less the thickness of the tile. The box is UL listed for the USA, and cUL listed for Canada installations.

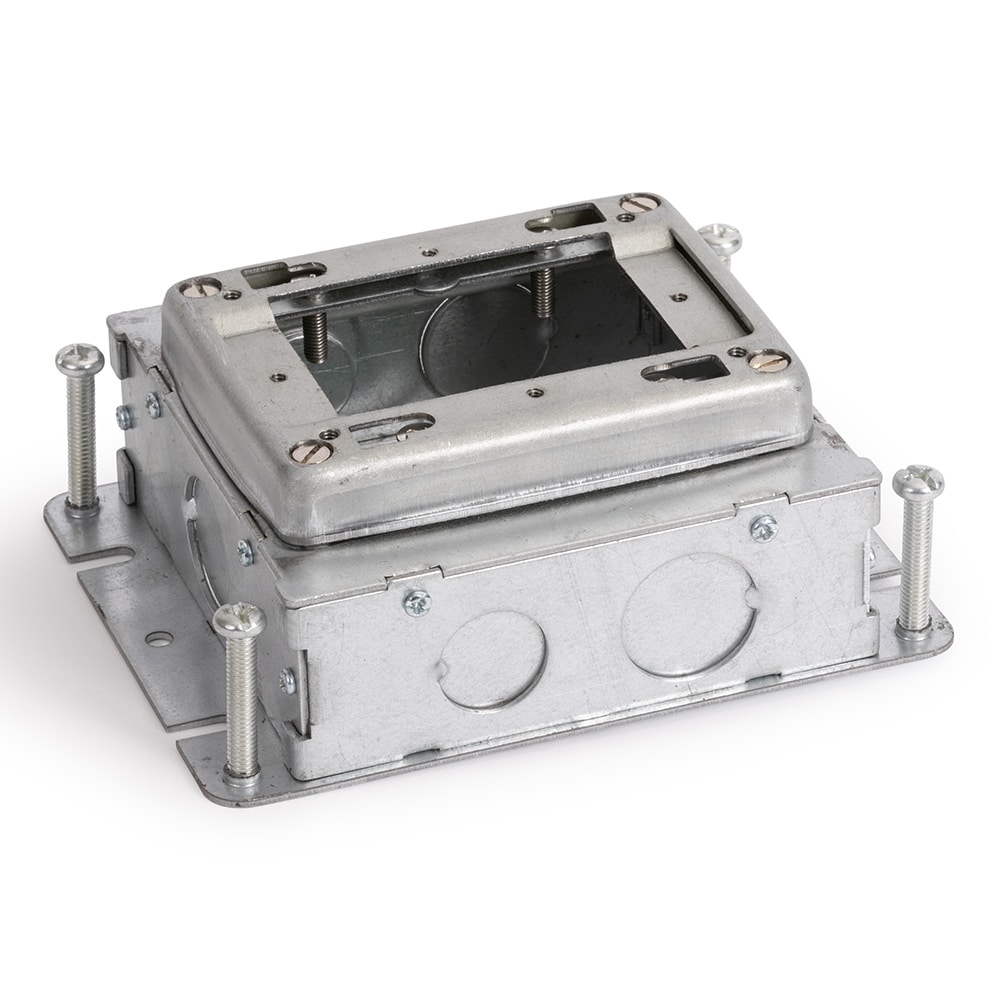

    Additional Images

    Specifications

    Requires cover, sold separately Size: One gang For concrete installations Shallow box, perfect for 2.5″ to 3″ concrete 31.5 cubic inches of interior space Several knockouts on each side UL and cUL listed, # 514A, Includes construction cap Box dimensions:  6.1″ x 4.8″ Depth:  2.6″ deep Can be used with carpet or tile Warranty:  1 year

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG: Download
    Install Instructions:

    Certifications and Compliances
