RRP-2-NS

RRP-2-NS

Quick Install Floor Plate, No Box, 1 Duplex 15A, 2 Screw Plugs, Nickel The Lew Electric RRP-2-NS is a recessed floor plate with a nickel silver cover. The back box is not included, use with an approved 2″ x 3″ box with a depth of 3.5″. Inside the



Type: Product
Category: RRP Boxes and Covers, Residential

  • Share this product:
  •
  •
  • Product Description

    Quick Install Floor Plate, No Box, 1 Duplex 15A, 2 Screw Plugs, Nickel

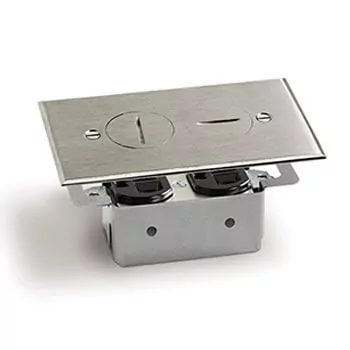

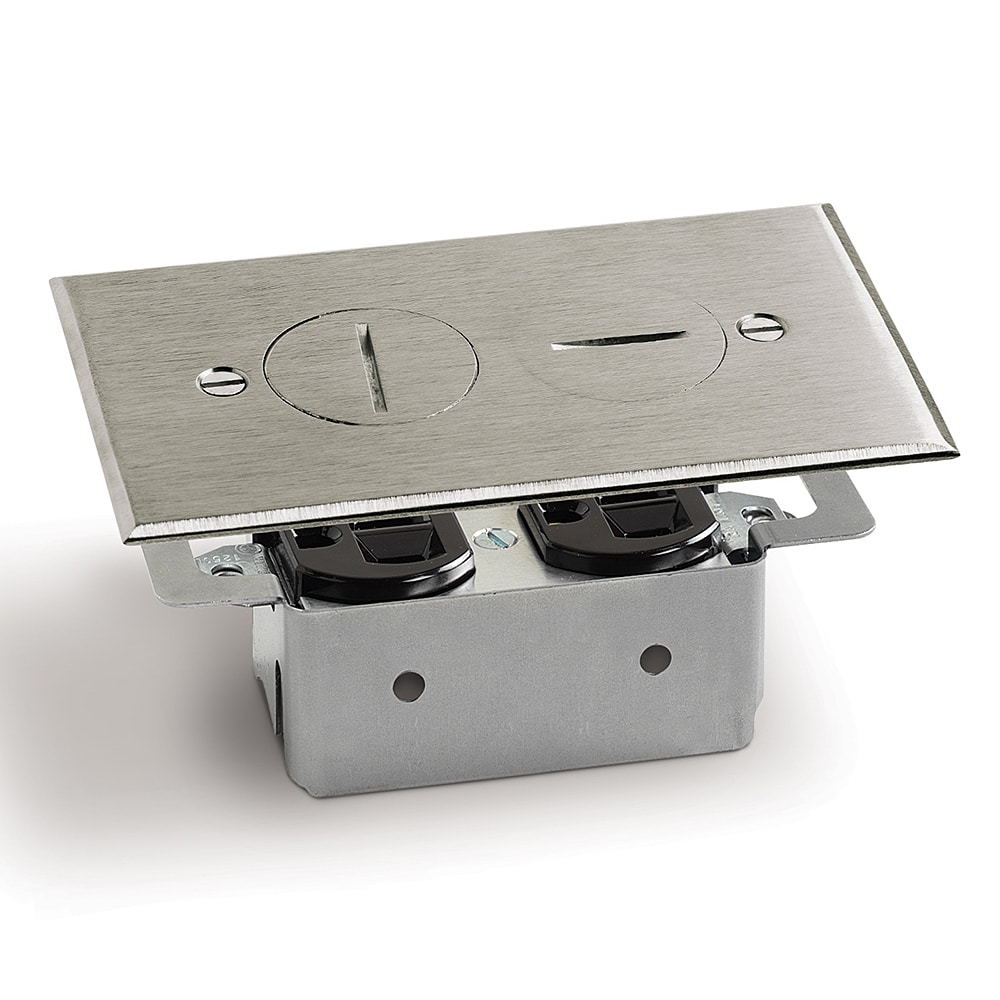

    The Lew Electric RRP-2-NS is a recessed floor plate with a nickel silver cover. The back box is not included, use with an approved 2″ x 3″ box with a depth of 3.5″. Inside the floor box is a single 15A duplex outlet, the plugs are tamper proof. The sleeve in the box is adjustable up to 3/4″ to accommodate any floor making installation a snap, screws are included to attach the plate to the receptacle box. The box may be attached directly to the floor or routed 3/4″ into a finished floor. The box features two water tight close up screw plugs, there is also a durable 1/16″ neoprene rubber gasket that goes between the receptacles and plate. The receptacle is UL listed and meets heavy duty requirements for display receptacles. This floor box is a simple and economical solution to provide your power in a small and attractive plate.

    Additional Images

    Specifications

    Plate: 1/8″ nickel silver Outlet: One duplex 15A tamper proof 2 watertight screw plugs Must use your own back box Adjustable up to 3/4″ Attach to floor or route into finished floor Includes 1/16″ neoprene rubber gasket Outlet UL # E333616 Meets NEMA WD1-1983 requirement Includes plate screws Cover size:  4 5/8″ x 2 7/8″ Cutout size: Can’t exceed 2 1/8″ x 3 1/2″ Warranty:  1 year UL & NEMA RECOGNITION
    • Meets NEMA WD1-1983 heavy duty requirement for display receptacle
    • All receptacles tamper resistant; UL listing #E333616 (duplex); E237396 (single)
    FEATURES & BENEFITS
    • Fits any manufacturer’s 3 1/2″ deep switch box
    • Receptacle with neoprene gasket included
    • Water tight assembly
    • Adjustable up to 3/4″ to accommodate any floor

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG: Download
    Install Instructions: Download

    Certifications and Compliances
