PUR20-RWT-GFI-2USB-QI

PUR20-RWT-GFI-2USB-QI

Countertop Pop Up 20A GFI USB Outlet, Wireless QI Charging, White USPN 10084337 – The Lew Electric PUR20-RWT-GFI-2USB-QI is a spill proof countertop pop up retractable power outlet that hides in your kitchen countertops. Press the top and pull up the o




  • Share this product:
  •
  •
  • Product Description

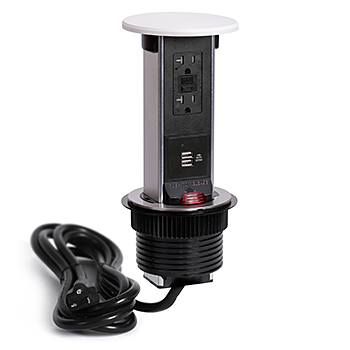

    Countertop Pop Up 20A GFI USB Outlet, Wireless QI Charging, White

    USPN 10084337 – The Lew Electric PUR20-RWT-GFI-2USB-QI is a spill proof countertop pop up retractable power outlet that hides in your kitchen countertops. Press the top and pull up the outlet to gain access to the power plugs and USB charging ports. When not in use, the unit hides out of the way under your counter. The circular top is a durable stainless steel, perfect for matching appliances, and nickel fixtures in your kitchen.

    Cable-Free Convenience

    No more cables, no more messy charging stations. Simply place your smartphone on the non-slip charging surface that’s designed to help secure your device while charging. Keep charging simple, even when your hands—and day—are full.

    Wireless Charging Technology
    US Patent Number 10084337

    Wireless Charging Optimized for Mobile Devices

    Unclutter your space and simplify charging with the Lew Electric PUR20-RWT-GFI-2USB-QI.  Just lay your phone onto the charging pad and go. Get a fast charging speed up to 7.5W. There’s no need to remove your smartphone from its case when powering up, you can charge through most lightweight plastic cases up to 3 mm.

    The circular top is plastic that offers wireless QI charging in both the open, and closed positions.



    Meets NEC Electrical Code 406.5E for Installation in Countertops

    The pop up meets code for kitchen and wet location installations in counters:

    • Compliant to National Electrical Code (NEC) 406.5E for countertop use in the USA and Canada.
    • The outlet has tamper proof plugs and is UL listed.
    • The pop up as a complete unit, is ETL listed for USA installations, and cETL and CSA approved for Canadian installations.
    • The top has passed UL’s spill proof rating.

    The Pop up is Completely Waterproof

    Features the highest water protection of any pop up on the market and has achieved an industry leading IP54 spill proof rating from UL laboratories. In the closed position the top is waterproof, and in the open position, the electrical outlet passed UL’s 8oz spill test. A gasket on the bottom keeps spilled liquid from entering into the hole in the counter, keeping liquid from entering into your cabinets.

    World’s First GFCI 20A Pop Up with USB Charging Ports on the market

    The PUR20-RWT-GFI-2USB-QI is 20 Amp rated allowing you to plug in the most small electric appliances. The outlet has integrated GFCI protection providing safety right at the source. The USB ports are rated for 3.6 Amps of shared power. There is a smart chip inside the outlet making the USB intelligent charging ports. They automatically adapt to the device being plugged in and send the maximum amount of power that the device can handle, ensuring that your device won’t be over-charged. The outlet is weather resistant (WR) and has passed UL’s 8oz spill test. The plugs are tamper resistant (TR) ensuring you meet code.

    3 Ways to Power Small Appliances and Charge Mobile Devices

    #1.  20A Outlet with Tamper Resistant Plugs
    Plug into two available 20 Amp plugs to power your small appliances.  The plugs are tamper resistant (TR) meeting code, and offer the peace of mind knowing that children can’t put small objects into the sockets and electrocute themselves.

    #2.  Two USB Charging Ports
    The USB ports are rated for 3.6 Amps of shared power. There is a smart chip inside the outlet making the USB intelligent charging ports. The ports automatically adapt to the device being plugged in, and send the maximum amount of power the device can handle, ensuring it won’t be over-charged.

    #3.  Wireless QI Charging Top
    The top offers QI wireless charging, simply set a QI enabled smart phone on the plastic top to start charging.  The charging works in both the open, and closed position. The top is case friendly, and will wirelessly charge through any non-metal phone case up to 5mm thick. Your smart phone can still be used while it is charging. The wireless charging is certified safe with integrated over-voltage protection, and temperature control.

    The power outlets, USB charging ports, and wireless charging top, can all be used at the same time.

    Easy Installation

    This pop up only needs a 3.75” round hole to be cut into a countertop. After you drop the unit in the hole, secure it to the underside of your counter with the included threaded flange. To supply power to the pop up and USB charging ports, simply plug the end of the 9’ cord into a 20 amp outlet. A single cord provides power to both the outlet, and the USB charging ports. Lastly, install the included trim ring (if desired), and you have completed installation.

    Power for Kitchen Worktops

    The PUR20-RWT-GFI-2USB-QI is perfect for any countertop location or kitchen islands. It can also be used in other wet locations that require recessed power such as pantries and laundry rooms. The pop up can be installed in granite, quartz, marble, wood, laminate, concrete, or any surface up to 2 3/16” thick, that you can cut the required 3.75” hole.

    Get power exactly where you need in your counter, while meeting code with your electrical inspector. Keep dangerous cords from hanging over the sides of counters, with an in-counter pop up outlet.

    *** Our wireless PUR-Qi Series charging watts very between 5W and 10W, which is .8A to 1.4A.  The variance is due to the unknown which is the phone cover.  Larger or thicker covers will cause the phone to charge slower.  The phone charges quickest without any cover on it.  Our wireless charger also has overcurrent, overheat, and over-voltage protection.  When the voltage is over 6V it will automatically cut the power off to protect the phone.





    Additional Images

    Specifications

    Color:  White plastic top Black outlet:  20 Amp GFCI Tamper resistant (TR) plugs USB:  (2) Smart charging 2.1 Amp ports QI wireless charging top, 10 watts Weather resistant (WR) outlet Meets 2014 NEC code 406.5E for countertops ETL listed for USA installations, # 4004534 cETL listed for Canada installation, # 4004534 CSA approved for Canada, #C22.2 Conforms to UL 514A and 498 UL listed receptacle, # E60120 Water protection:  IP 54 Spill proof rated Gasket under bezel to keep water out Bezel size:  4 7/8” round Cutout size:  3 3/4” round Pop up height: 7 1/2″ Depth under 3cm counter:  10 1/2″ Works in counter thickness: 3/8” – 2 3/16”  Flange width needed under counter: 4 15/16″ 9’ corded 3 prong 20A plug  Must be plugged into a 20A outlet Install using a licensed electrician Consult with electrician/inspector before ordering  Designed for indoor installations only Includes trim ring RoHS and Proposition 65 compliant 1 year warranty

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG:
    Install Instructions: Download

    Certifications and Compliances

    ETL Certification (PDF)
