PUR20-RSS-GFI-2USB-QI

PUR20-RSS-GFI-2USB-QI

Wireless Charging Kitchen Counter Pop Up With 20A (TR) GFI Receptacle & 2 USB Ports – Stainless.

Great for Kitchen counters, kitchen islands, desktops, home office, schools, retail outlets and hotel rooms.



  • Share this product:
  •
  •
  • Product Description

    Wireless Charging Kitchen Counter Pop Up With 20A (TR) GFI Receptacle & 2 USB Ports, Stainless

    Great for Kitchen counters, kitchen islands, desktops, home office, schools, retail outlets and hotel rooms.

    Key Features: Spill Proof. Wireless charging cover with Qi technology.  Eliminates dangerous cords hanging from kitchen counters. Now includes self-testing GFI receptacles as standard. Solves the need to have power where a wall outlet is not possible in kitchen. Only pop up on the market with GFI and 2 USB charging ports. USB Ports are Class 2 5VDC 3.6A.

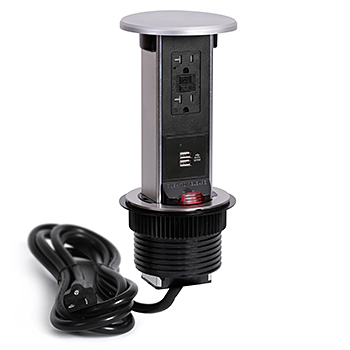

    The Lew Electric PUR20-RSS-GFI-2USB-QI wireless charging countertop pop up power outlet is designed to be hidden in a kitchen countertop or any other indoor surface where it is not possible or convenient to have a wall outlet. When in the closed position the outlet is hidden under the counter. When power is needed, simply press down on the spring-loaded top and the cylindrical unit raises up. The outlet is 20 Amp rated, integrated GFCI protection, has tamper resistant (TR) plugs, and is also weather resistant. The unit also contains two separate USB charging ports. USB Ports are Class 2 5VDC 3.6A.

    The PUR is spill proof when in the closed position and complies with the 2017 NEC code for Kitchen countertops. The stainless resin top holds up to heavy traffic and beautifully accents a wide color range of stone countertops. Installation is a breeze and only requires a single round hole to be cut into the countertop. No other tools are required.



    Additional Images

    Specifications

    • Color: Stainless Resin Top

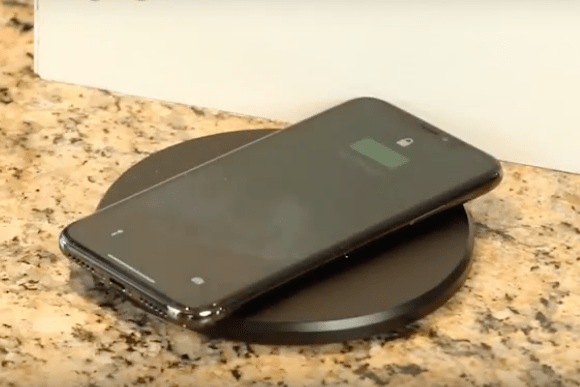

    • Wireless Charging Cover: Qi
    • Black outlet: 20 Amp GFCI
    • Tamper resistant (TR) plugs
    • Weather resistant (WR) outlet
    • 2 Separate USB Charging Ports
    • USB Ports are Class 2 5VDC 3.6A
    • ETL listed for USA installations, # 4004534
    • cETL listed for Canada installation, # 4004534
    • CSA approved for Canada, #C22.2
    • Conforms to UL 514A and 498
    • UL listed receptacle, # E60120
    • Water protection: IP 54 Spill proof rated
    • Waterproof gasket under bezel *Consult with electrician and inspector before ordering
    • Bezel size: 4 7/8″ round
    • Cutout size: 3 3/4″ round,  ***It is recommended to have the product in hand before cutting***
    • Pop up height: 7 5/8″
    • Depth under 3cm counter: 11 1/4″
    • Works in counter thickness: 3/8″ – 2 3/16″
    • 9 foot corded 3 prong flat plug
    • Install using a licensed electrician
    • Designed for indoor installations only
    • Includes matching stainless resin trim ring
    • 1 year warranty

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG:
    Install Instructions: Download

    Certifications and Compliances

    ETL Certification (PDF)
