PUFP-CT-WT-20A-2USB-WC
Kitchen Counter Pop Up Power Outlet Assembly With 20A (TR) Duplex Power/2USB Receptacle – White, With 20A Power Cord.
Great for Kitchen counters, kitchen islands, desktops, home office, schools, retail outlets and hotel rooms.
Product Description
Kitchen Countertop Pop Up With 20A (TR) Duplex Power/2USB Receptacle, White, With 20A Power Cord
Great for Kitchen counters, kitchen islands, desktops, home office, schools, retail outlets and hotel rooms
Key Features: Eliminates dangerous cords hanging from kitchen counters. Includes 125V-20A (TR) Duplex Power/2USB Receptacle. USB Ports are Class 2 5VDC 3.6A. Includes dust covers for USB ports. Solves the need to have power where a wall outlet is not possible in kitchen. Includes 9 foot 20A power cord.

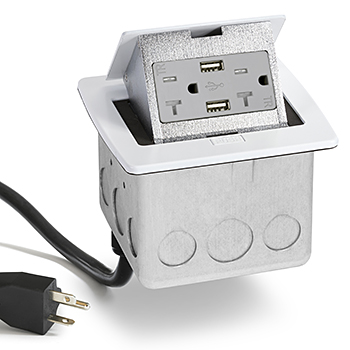

The Lew Electric PUFP-CT-WT-20A-2USB-WC countertop pop up box is designed to be hidden in a kitchen countertop or any other indoor surface where it is not possible or convenient to have a wall outlet. When in the closed position the outlet is hidden under the counter. When power is needed, simply press the spring-loaded button and the tension adjustable top raises up. The duplex outlet is 20 Amp rated, has two 3.6 amp USB ports and has tamper resistant (TR) plugs.
Specifications
- 20A Duplex Power/2USB Receptacle
- White metal top
- IP44 Splash proof rated
- Tamper resistant outlets
- 2017 NEC code 406.5E for countertops
- Includes 9 foot 20A Power Cord
- Waterproof gasket under bezel *Consult with electrician and inspector before ordering
- Includes back box shown in picture
- Bezel dimensions: 4 7/8″ X 4 11/16″
- Cutout dimensions: 4 1/16″ x 4 1/16″, ***It is recommended to have the product in hand before cutting***
- Space Needed Below Counter: 3.13″
- Counter thickness: 1/2″ to 2″
- Back box dimensions: 3 15/16″ x 4″
Conforms to UL STD.514A and 498;
Certified to CSA STD.C22.2.; No.18.1-04 and
42-M1984; LEW ELECTRIC FITTINGS CO
Certifications and Compliances
All of Lew Electric’s PUFP-WC (WITH CORD) series meet the 2017 NEC code for installation into countertops. While national electric code is a national code, individual states have the right to adopt or reject those new standards. Please click on the link below to see which standards your state has adopted. In addition to national standards, there are even more restrictive local standards that must be obeyed. Failure to do so will release Lew Electric from any and all liability. Always contact your local inspector and electrician before ordering and installing Lew Electric’s Products.
PUFP Series Safety and Certifications:
- ETL Certification Sheet (PDF)
- Meets 2017 NEC code 406.5E for countertops
- ETL listed for USA installations, # 4004534
- cETL listed for Canada installation, # 4004534
- CSA approved for Canada, #C22.2
- Conforms to UL 514A and 498
- UL listed receptacle: E491706
- Water protection: IP44 Spill proof rated top
- Tamper resistant (TR) plugs
- Gasket under bezel to keep water out
- RoHS and Proposition 65 compliant
- 1 year warranty
