PUFP-B

PUFP-B

6″ Brass pop up floor plate with with 15 amp (TR) GFI receptacle The Lew Electric PUFP-B is an indoor floor box that provides duplex power in a hidden and attractive pop up. When closed the pop up is hidden in your floor, all you see is a stylish round




  • Share this product:
  •
  •
  • Product Description

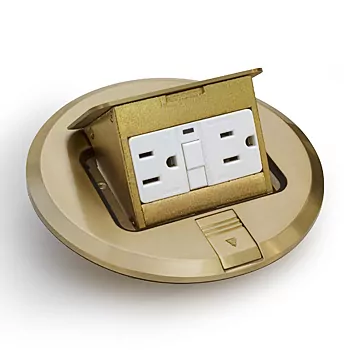

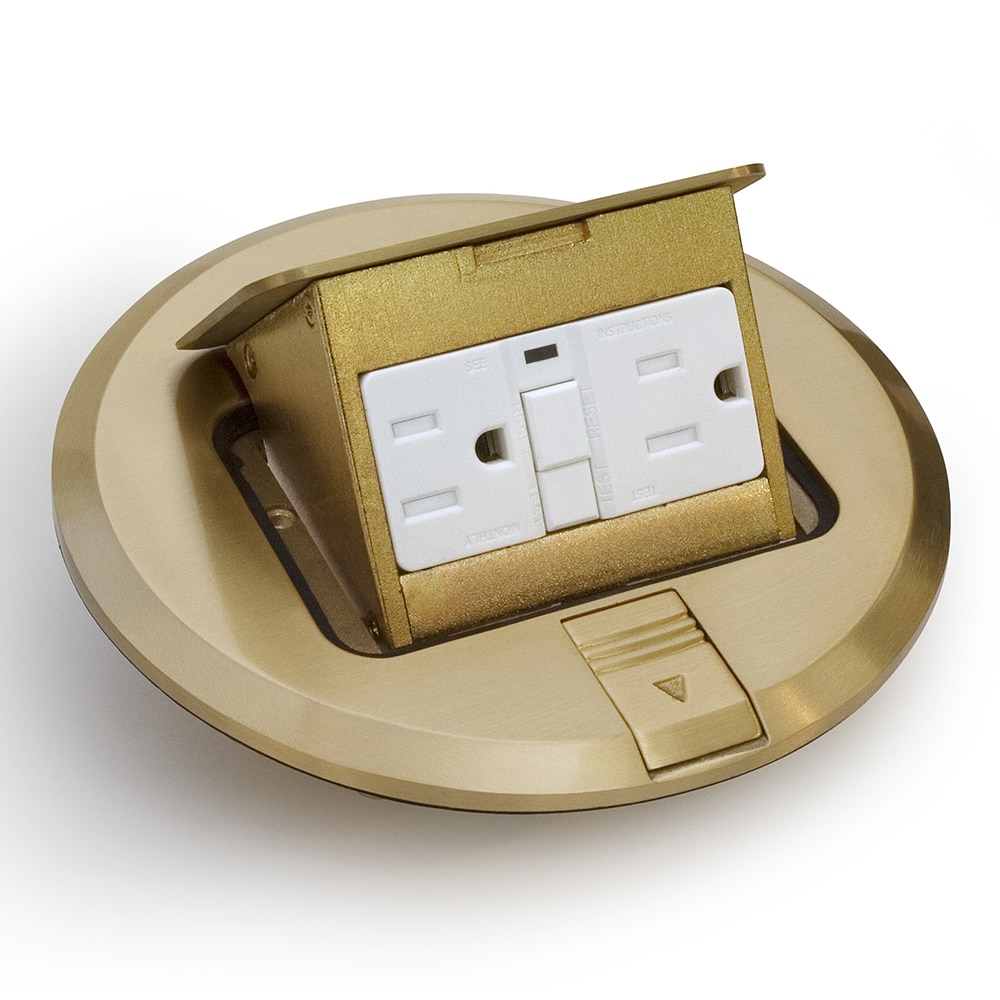

    6″ Brass pop up floor plate with with 15 amp (TR) GFI receptacle

    The Lew Electric PUFP-B is an indoor floor box that provides duplex power in a hidden and attractive pop up. When closed the pop up is hidden in your floor, all you see is a stylish round brass top. When you push the slide button the top tilts open revealing the power outlet. The GFI protected outlet is 15 amps with tamper resistant plugs, and is UL listed. This pop up is perfect for any locations where you need hidden power, or locations where a wall out is not available. The unit as a whole is UL listed, it is also cUL recognized for Canadian installations. In the closed position the top is UL compliant to keep out dust and scrub water.

    The pop up is a perfect choice for indoor residential or commercial applications in wood or concrete floors. The backbox is not included, to use in wood you must purchase the PUFP-WB backbox. To use in concrete you must purchase the PUFP-HB back box. After installing your back box, run the wire through the knockouts and to the outlet.

    The box is an excellent choice for any commercial or residential application that needs affordable power supplied in a stylish pop up, purchase a wood or concrete back box to for your installation requirements.

    Additional Images

    Specifications

    Requires PUFP-LRA to mount to FB box
    UL recognized components: PUFP series UL recognized 498; ETL listed P63

    Top: Brass
    Back box sold separately
    UL rated for USA installations
    cUL rated for Canadian installations
    Meets NEC code 406.5(E)
    Outlet: 15 amp GFCI
    Top: 6″ round
    Tamper resistant (TR) plugs
    Indoor residential or commercial installations
    UL listed receptacle
    Scrub water rated
    1 year warranty

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG: Download
    Install Instructions:
