    Core Drill Cast Box

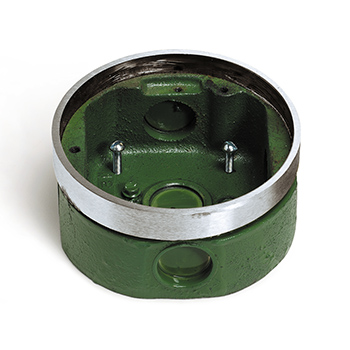

    The Lew Electric MW-332-58-A is a round cast iron concrete floor box with a aluminum top. The box is perfect for core drill installations since it is only 2″ deep, there are 12 cubic inches of interior space available. There are four 3/4″ knockouts on the sides of the box to run your wires to. The box ships with a protective cement cap to keep the box clean and safe during concrete pouring. The box does not ship with a cover, there are several options available that are sold separately. If the box is to be used in a carpeted area a sold separately carpet flange can be ordered, the CF-1100 series carpet flange adds 3/8″ of height to accommodate the carpet and padding. For tile applications no flange is needed, simply pour your concrete to the level of the tile frame less the thickness of the tile. The box is UL listed for the USA, and cUL listed for Canada installations.

    Top: Aluminum
    Requires cover, sold separately
    Size: Single gang
    For concrete installations
    12 cubic inches of interior space
    Four 3/4″ knockouts
    UL and cUL listed, # 514A, 489H
    Includes construction cap
    Box dimensions:  4.25″ round
    Depth:  2″ deep
    Can be used with carpet or tile
    Warranty:  1 year

    Additional Images

    Specifications

    Dim A: 4 1/4″ / Dim B: 2″ / Adjust before: 1/2″ Adjust after: X / Interior Capacity: 12 cu.in. Conduit Openings: Sides (4) bottom (1) 3/4″ Top: Aluminum Requires cover, sold separately Size: Single gang For concrete installations 12 cubic inches of interior space Four 3/4″ knockouts UL and cUL listed, # 514A, 489H Includes construction cap Box dimensions:  4.25″ round Depth:  2″ deep Can be used with carpet or tile Warranty:  1 year

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG: Download
    Install Instructions: Download

    Certifications and Compliances
