Lew Electric HCW Conference Table Box
Product Description
LEW HCW Conference Table Box

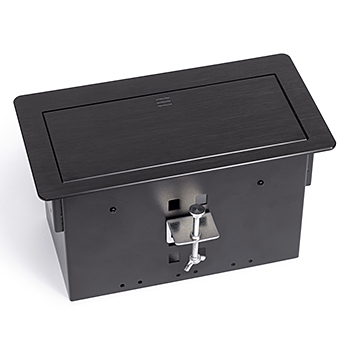

The LEW HCW modular enclosure system offers style, form, and function in a mid-size rectangular box that is great for conference tables, classrooms, training facilities and lab tables.
The HCW cover is offered in two striking and durable sand blasted anodized aluminum colors, Black or Silver. The cover has a low profile on the tabletop and is fully retractable, providing easy access to power and data/comm options inside the enclosure.
Each color offers seven different cable management combinations to meet all application needs. Choose any combination of power, HDMI, USB or Cat 6 that fits within the framework of the inner plates. The receptacle is a 15A duplex with 2 USB charging ports (1 Type A and 1 Type C). The power cable is a single six-foot cord and the data/com connectors have female pigtails on the backside of the enclosure for easy connection to cables coming up from the floor.
Installation is a quick and simple, requiring only one rectangular cut in the tabletop. No screws or glue are necessary to complete installation. The enclosure measures 8.375″ wide by 4.125″ deep by 5.25″ high. The cover is 9.25″ wide by 4.875″ deep.
Available color options:
Black or Silver
Configuration options:
Black cover configurations
HCW-1B
• 1 Duplex/USB (AC) Receptacle, 1 HDMI, 1 Cat 6
Specifications Drawing: HCW-1
HCW-2B
• 1 Duplex/USB (AC) Receptacle, 1 HDMI, 2 Cat 6
Specifications Drawing: HCW-2
HCW-3B
• 1 Duplex/USB (AC) Receptacle, 2 HDMI, 2 Cat 6
Specifications Drawing: HCW-3
HCW-4B
• 1 Duplex/USB (AC) Receptacle, 1 HDMI, 1 USB 3.0, 2 Cat 6
Specifications Drawing: HCW-4
HCW-5B
• 1 - Duplex/USB (AC) Receptacle, 1 HDMI, 1 DisplayPort, 2 Cat 6
Specifications Drawing: HCW-5
HCW-6B
• 1 - Duplex/USB (AC) Receptacle; 1 HDMI, 1 VGA, 2 Cat 6, 1 Audio
Specifications Drawing: HCW-6
HCW-7B
• 1 - Duplex/USB (AC) Receptacle; 1 HDMI, 1 USB C, 2 Cat 6
Specifications Drawing: HCW-7
Silver cover configurations
• 1 Duplex/USB (AC) Receptacle, 1 HDMI, 1 Cat 6
Specifications Drawing: HCW-1
• 1 Duplex/USB (AC) Receptacle, 1 HDMI, 2 Cat 6
Specifications Drawing: HCW-2
• 1 Duplex/USB (AC) Receptacle, 2 HDMI, 2 Cat 6
Specifications Drawing: HCW-3
• 1 Duplex/USB (AC) Receptacle, 1 HDMI, 1 USB 3.0, 2 Cat 6
Specifications Drawing: HCW-4
• 1 - Duplex/USB (AC) Receptacle, 1 HDMI, 1 DisplayPort, 2 Cat 6
Specifications Drawing: HCW-5
• 1 - Duplex/USB (AC) Receptacle; 1 HDMI, 1 VGA, 2 Cat 6, 1 Audio
Specifications Drawing: HCW-6
• 1 - Duplex/USB (AC) Receptacle; 1 HDMI, 1 USB C, 2 Cat 6
Specifications Drawing: HCW-7
Specifications
- Color: Sand blasted anodized aluminum in Black or Silver
- Power outlets: 2
- USB-A charging ports: 1
- USB-C charging ports: 1
- Configuration options: HDMI, Cat 6, USB 3.0, VGA & Audio, USB-C, DisplayPort
- Connections are female on the back side
- Bezel size: 9.25″ x 4.875″
- Depth: 5.25″
- Cutout size: 8.38 x 4.14″
- Works in tables up to 3.3″ thick
- Fully retracting lid
- One 6 foot power cord with 3 prong plug
- All mounting hardware included
- Configurable for future changes
- Minor assembly required
- 1 year warranty
Drawings and Resources
Adobe PDF: Download |
AutoCAD DWG: |
Install Instructions: |
