THE CF10C SERIES BOX is a large capacity dual service floor box for use with conduit in a poured concrete floor. The box is constructed of 16 ga. galvanized steel and comes complete with a 1/4″ cast aluminum cover assembly. Boxes are shipped with



Type: Product
Category: Access Floorboxes, Commercial

  • Share this product:
  •
  •
  • Product Description

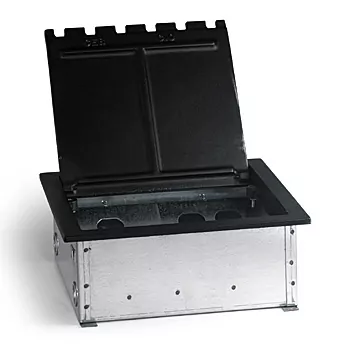

    THE CF10C SERIES BOX is a large capacity dual service floor box for use with conduit in a poured concrete floor. The box is constructed of 16 ga. galvanized steel and comes complete with a 1/4″ cast aluminum cover assembly. Boxes are shipped with disposable sheet metal cover to protect box during concrete pour. Box supplied with two 1/2 – 3/4″ combination conduit knockouts each end for conduit feed and complete with four adjustable legs for pre-pour adjustment. Standard boxes supplied with power plates and data/communication plates punched to accept specified devices.

    Additional Images

    Specifications

    Power Device Plate Specifications
    Receptacles are not normally supplied with boxes, contact factory for pricing with details of any receptacles that are required to be supplied with boxes.
    1 = 1 std duplex cut out
    5 = 3 std duplex cut outs
    2 = 2 std duplex cut outs
    6 = 4 std duplex cut outs
    3 = 1 “Decora” cut out
    7 = 3 “Decora” cut outs
    4 = 2 “Decora” cut outs8 = 4 “Decora” cut outs
    Note: Decora cut outs measure 1.3125″ x 2.66″

    Tel/Data Device Plate Specifications
    Receptacles are not normally supplied with boxes, contact factory for pricing with details of any receptacles that are required to be supplied with boxes.
    A = 1 “Decora” cut out
    E = 3 “keystone” cut out
    J = 7 “keystone” cut outs
    B = 2 “Decora” cut outs
    F = 4 “keystone” cut outs
    K = 8 “keystone” cut outs
    C = 1 “keystone” cut out
    G = 5 “keystone” cut outsM = 3 “Decora” cut outs
    D = 2 “keystone” cut outsH = 6 “keystone” cut outsP = 4 “Decora” cut outs
    Note: Decora cut outs measure 1.3125″ x 2.66″; RJ45 cut outs measure .765″ x .585″
    Standard Ordering Specifications
    1. Specify box type [CF10C]
    2. Specify power device plate [e.g. CF10C6 = 4 std duplex cut outs.]
    3. Specify Tel/Data device plates [e.g. CF10C6BD = 4 std duplex cut outs for power, 2 Decora & 2 keystone for Tel/Data.]

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG: Download
    Install Instructions: Download
