32 Series Round Boxes – *Available in Aluminum Finish |
||
|
CAT#: 332-58 |
|
|

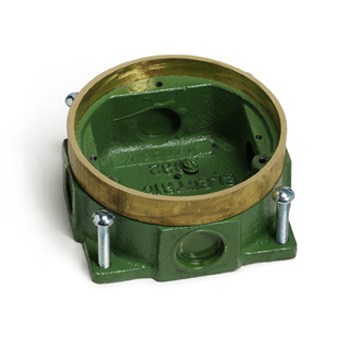

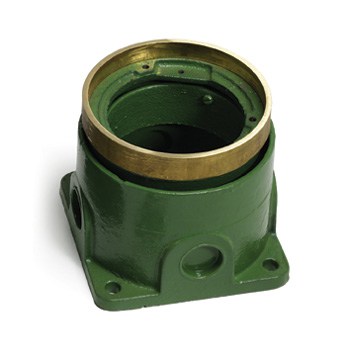

CAT#: 532-58* Deep, Cast Box, Fully Adjustable Dim A: 4 1/4″ / Dim B: 4 3/16” / Adjust before: X Adjust after: 3/8″ / Interior Capacity: 32 cu.in. Conduit Openings: Sides (4) 3/4″ Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|

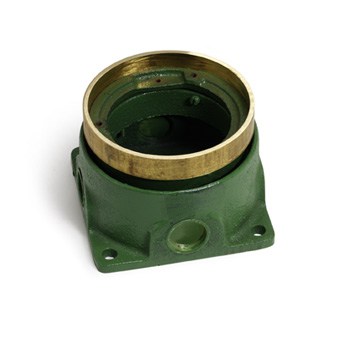

CAT#: 532-SB-58* Shallow, Cast Box, Fully Adjustable Dim A: 4 1/4″ / Dim B: 3 5/16“ / Adjust before: X Adjust after: 3/8″ / Interior Capacity: 24 cu.in. Conduit Openings: Sides (4) 3/4″ Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
CAT#: MW-332-58* Core Drill Cast Box Dim A: 4 1/4″ / Dim B: 2″ / Adjust before: 1/2″ Adjust after: X / Interior Capacity: 12 cu.in. Conduit Openings: Sides (4) bottom (1) 3/4″ Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
CAT#: 532-SMB Deep, stamped steel box, fully adjustable Dim A: 4 1/4″ / Dim B: 2 1/8″ / Adjust before: 1/2″ Adjust after: X / Interior Capacity: 57.36 cu.in. Conduit Openings: 1/2″ (5 holes); 3/4″ (4 holes); 1″ (2 holes) Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
32 Series Round Boxes – Covers -* Available in Aluminum &** Nickel Silver Finish |
||
|

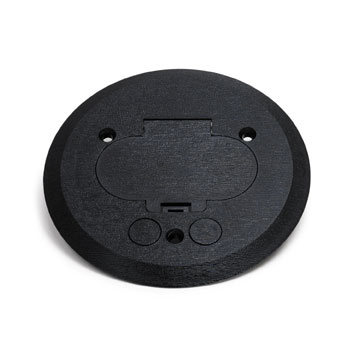

CAT#: PFC-E Ebony Plastic Flanged Cover, w/ Single Flip Lid & Duplex Mount. Plt. Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
|
CAT#: PFC-E-GFI Ebony Plastic Flanged Cover, w/ Single Flip Lid & GFI/Decora Mount. Plt. Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
|
CAT#: PFC-E-TEL Ebony Plastic Flanged Cover, w/ Single Flip Lid & Single Recept/Data Plt. Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|

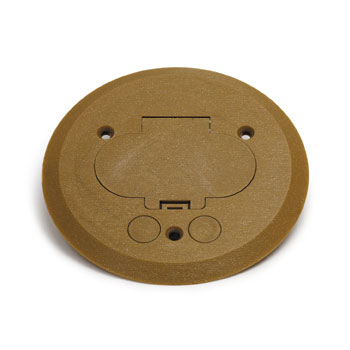

CAT#: PFC-G Gold Plastic Flanged Cover, w/ Single Flip Lid & Duplex Mount. Plt. Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
|
CAT#: PFC-G-GFI Gray Plastic Flanged Cover, Ww Single Flip Lid & GFI/Decora Mount. Plt. Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
|
CAT#: PFC-G-TEL Gray Plastic Flanged Cover, w/ Single Flip Lid & Single Recept/Data Plt. Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
CAT#: PFC-T Tan Plastic Flanged Cover, w/ Single Flip Lid & Duplex Mount. Plt. Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
|
CAT#: PFC-T-GFI Tan Plastic Flanged Cover, w/ Single Flip Lid & GFI/Decora Mount. Plt. Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
|
CAT#: PFC-T-TEL Tan Plastic Flanged Cover, w/ Single Flip Lid & Single Recept/Data Plt. Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|

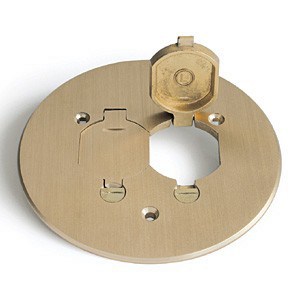

CAT#: TCP-2-LR Brass SEEMLESS Flanged Cover, w/ Dual Flip Lid & Duplex Mount. Plt. Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|

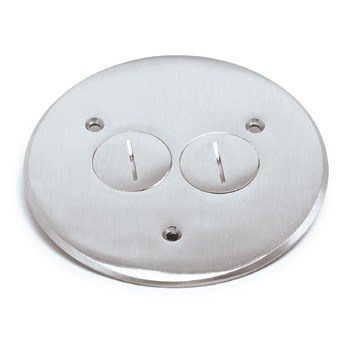

CAT#: TCP-2-A Aluminum Flanged Cover 5 3/4” Diameter with (2) 1-1/2” Screw Plugs for Duplex Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|

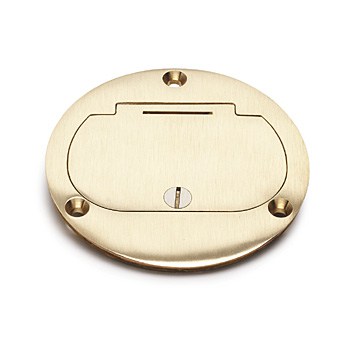

CAT#: DFB-1* Brass, Hinged 4” Cover (1/4” Thick) for Duplex Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
|
CAT#: DFB-1TEL* Same as above but for Com/Data Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
|
CAT#: DFB-1-GFI* Same as above but for Decora Receptacle Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|

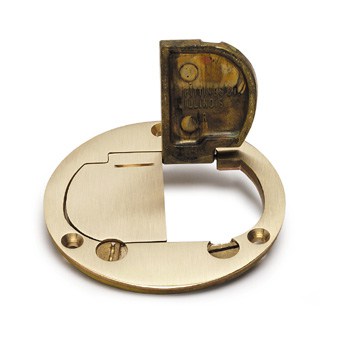

CAT#: DFB-LR* Brass, Dual Hinged 4” Cover (1/4” Thick) for Duplex Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
CAT#: 523-DP** Brass, 4” Cover (1/8” Thick) with (2) 1-1/2” Screw Plugs for Duplex Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
CAT#: 524** Brass, 4” Cover (1/8” Thick) with 2”-1/2” Combo Plug for Com./data Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|

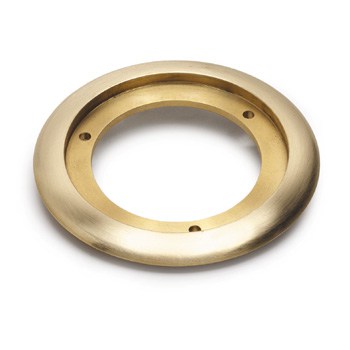

CAT#: SCF-1* Brass Flange 5 1/4” (Shallow) Fits All Round Boxes Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
CAT#: TCP-1 Brass Flanged Cover 5 3/4” Diameter with 2”-1/2” Combo Plug for Com./ Data Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
CAT#: TCP-2 Brass Flanged Cover 5 3/4” Diameter with (2) 1-1/2” Screw Plugs for Duplex Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|

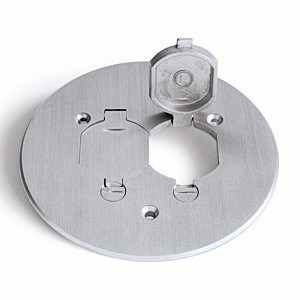

CAT#: TCP-2-LR-A Aluminum SEEMLESS Flanged cover, w/ Dual Flip Lid & Duplex Mount. Plt. Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
CAT#: DCF-1-X-GFI Brass Flanged Cover, w/ Single Flip Lid & GFV Decora Mount. Plt. Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
CAT#: DCF-1-X-A-GFI *Aluminum Flanged Cover, 5 1/4” Dia., w/ Single Flip Lid & GFI/Decora Mount. Plt. Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
|
CAT#: TCP-1-3/4″ Brass Flanged Cover, w/ 2” – 3/4” Combo Plug for Comm/Data. or Single Recept. Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
|
CAT#: TCP-1-1″ Brass Flanged Cover, w/ 2” – 1” Combo Plug for Comm/Data. or Single Recept. Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
CAT#: PFC-B Brown Plastic Flanged Cover, w/ Single Flip Lid & Duplex Mount. Plt. Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
|
CAT#: PFC-B-GFI Brown Plastic Flanged Cover, w/ Single Flip Lid & GFI/Decora Mount. Plt. Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
|
CAT#: PFC-B-TEL Brown Plastic Flanged Cover, w/ Single Flip Lid & Single Recept/Data Plt. Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
CAT#: TCP-GR1 TCP-GR1 Brass Goof Ring for all 4″ diameter brass covers. Outside Diameter of TCP-GR1 is 7.5″ Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
CAT#: TCP-GR2 TCP-GR2 Brass Goof Ring for all 4.5″ diameter brass covers. Outside Diameter of TCP-GR1 is 7.5″ Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
