1101 Series – Rectangular Boxes – Fully Adjustable – *Available in Aluminum Finish |
|
|
CAT #: 1101-58* |
|

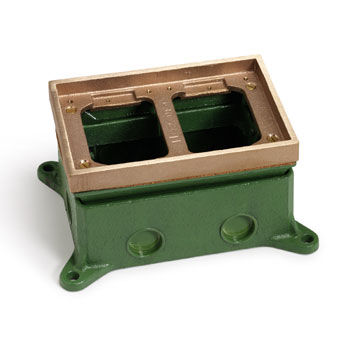

CAT#: 1102-58* Deep, two gang cast box (partitioned), fully adjustable Dim H: 3 3/4″ / Dim L: 6 3/8″ / Dim W: 4 1/4″ Adjust after: 3/8″ / Interior Capacity: 26 cu. in. (MIN) (13 cu. in./GANG Openings: Sides (6) 3/4″ Adobe PDF | AutoCAD DWG | 1100 Series Instructions | BUY NOW |
|

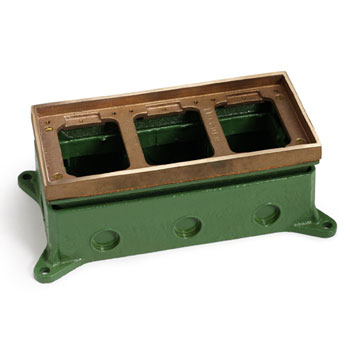

CAT#: 1103-58* Deep, three gang cast box (partitioned), fully adjustable Dim H: 3 3/4″ / Dim L: 9 1/4″ / Dim W: 4 1/4″ Adjust after: 3/8″ / Interior Capacity: 40 cu. in. (MIN) (13 cu. in./GANG Openings: Sides (8) 3/4″ Adobe PDF | AutoCAD DWG | 1100 Series Instructions | BUY NOW |
SH-1101 Series – Rectangular Boxes – Semi Adjustable – *Available in Aluminum Finish |
|
|

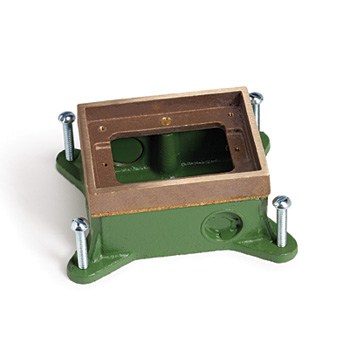

CAT#: SH-1101-58* Shallow, Single Gang Cast Box, Semi Adjustable Dim H: 2 1/4 ” / Dim L: 4 1/4″ / Dim W: 3 3/8″ Adjust before: 1″ / Interior Capacity: 16 cu. in. Openings: Sides (4) 3/4″ Adobe PDF | AutoCAD DWG | 1100 Series Instructions | BUY NOW |
|

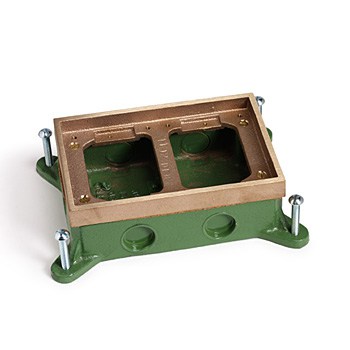

CAT#: SH-6262-58* Shallow, Two Gang Cast Box (Partitioned), Semi Adjustable Dim H: 2 1/4 ” / Dim L: 6 3/8″ / Dim W: 4 1/4″ Adjust before: 1″ / Interior Capacity: 25 cu. in. (MIN) (12.5 cu. in./GANG Openings: Sides (6) 3/4″ Adobe PDF | AutoCAD DWG | 1100 Series Instructions | BUY NOW |
|

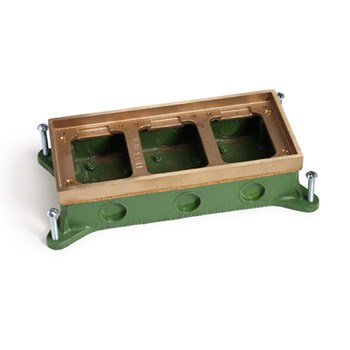

CAT#: SH-6263-58* Shallow, Three Gang Cast Box (Partitioned), Semi Adjustable Dim H: 2 1/4 ” / Dim L: 9 1/4″ / Dim W: 4 1/4″ Adjust before: 1″ / Interior Capacity: 50 cu. in. (MIN) (16.5 cu. in./GANG Openings: Sides (8) 3/4″ Adobe PDF | AutoCAD DWG | 1100 Series Instructions | BUY NOW |
SH-1101 Series – Rectangular Boxes – Covers and Flanges **Available in Aluminum Finish |
|
|
CAT#: 6304-BE Brass, Hinged 2 7/8” X 3 7/8” Cover (1/4” Thick) for Data or Twist Lock Recept. (Up to 30 Amp) Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
CAT#: 6304-DFB-1* Brass, Hinged 2 7/8” X 3 7/8” Cover (1/4” Thick) for Duplex Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
CAT#: 6304-DFB-1-GFI* Same as above but for Decora Receptacle Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
|
CAT#: 6304-DFB-1-TEL* Same as above but for Com/Data Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
CAT#: 6304-DFB-LR* Brass, Dual Hinged 2 7/8” X 3 7/8” Cover (1/4” Thick) for Duplex Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
CAT#: 6304-DP** Brass, 2 7/8” X 3 7/8” Cover (1/8” Thick) with (2) 1 1/2” Screw Plugs for Duplex Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
CAT#: 6304-S** Brass, 2 7/8” X 3 7/8” Cover (1/8” Thick) with 2” 1/2” Combo Plug for Comm./data Adob PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
CAT#: CF-1101-DFB* Single Gang Brass Carpet Flange, 5 1/2” X 6 1/2” Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
CAT#: CF-1102-DFB* Two Gang Brass Carpet Flange, 6 1/2” X 8 1/2” Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
|
CAT#: CF-1103-DFB* Three Gang Brass Carpet Flange, 6 1/2” X 11 1/2” Adobe PDF | AutoCAD DWG | Installation Instructions | BUY NOW |
